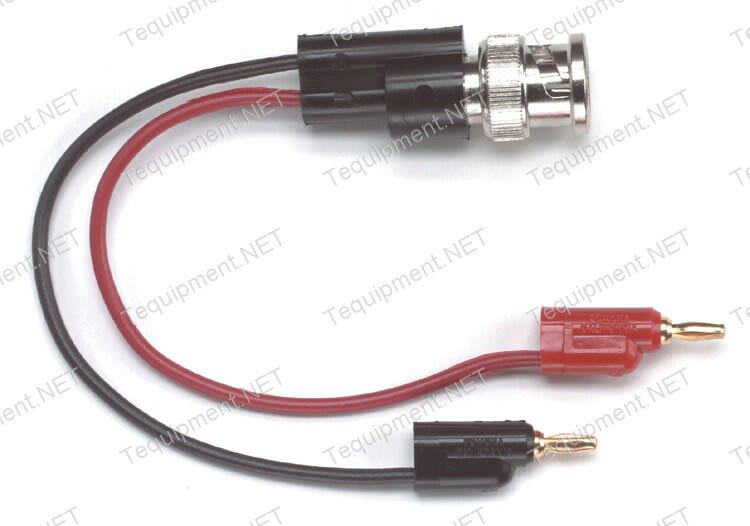

Pomona 4815 BNC (m) to stacking miniature banana plugs

Name: Pomona 4815 BNC (m) to stacking miniature banana plugs
Brand: Pomona
SKU: Pomona4815
Price: 13.53 USD
Availability: InStock

0 reviews | Model: Pomona 4815

Compare

BNC (M)/MINI BANANA PLUG

Converts BNC (Female) cables to stackable miniature banana plugs for test versatility.
BNC connector and banana plugs are molded directly to the wire for pull strength durability and dust/moisture resistance.
BNC dielectric is PTFE and the center pin is gold plated for superior electrical performance.
Miniature banana plug springs are gold plated Beryllium Copper for excellent electrical connection.
Schematic: BNC center contact to red banana plug, BNC shell to black banana plug.

View Product Details

List Price: $14.79

In Stock:

Recommended for you

Materials
BNC	Body - Brass, Nickel Plated
Center Contact	Brass, Gold Plated.
Dielectric	PTFE
Wire	20 AWG, Stranding 41 x 36 T.C., PVC Insulated, .087” (2.21 mm) O.D., Color matches banana plugs
Marking	“POMONA 4518”
Miniature Banana Plugs	Body – Brass Gold Plated
Spring	Beryllium Copper, Gold Plated
Insulation	Polypropylene Color: One Red, One Black
Ratings
Voltage
Hand-Held testing	30VAC/60VDC Max.
Hands free testing in controlled voltage environments	500VRMS Max.
Operating Temperature	+55°C (+131°F) Max.
