Pomona Model 2948 - Stacking Standard Banana Plug

Name: Pomona Model 2948 - Stacking Standard Banana Plug
Brand: Pomona
SKU: Pomona2948-12-0
Price: 13.29 USD
Availability: InStock

0 reviews | UPC: 095969180429 | Model: Pomona 2948-12-0

Compare

BANANA PLUG PATCH CORD, GOLD (BLACK)

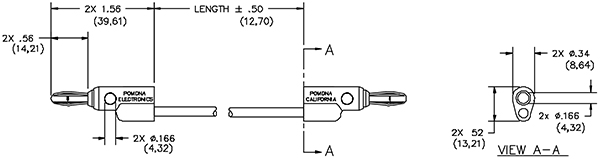

2948-12-0 Stacking Banana Plug Patch Cord Pomona 2948-12-0
Multiple stacking feature accommodates the most complex stacking; keeps circuitry neater
Greatly simplifies circuit connections and changes
Reliable solder bonded connections withstand pull test in excess of 50 lbs
Vertical and cross stackable
Mates to Model #1581, 2854 or any standard banana jack

View Product Details

Your Price: $13.29

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Recommended for you

Choose a Category

(8)

In Stock!

Add to Cart

Materials
Connection	Stacking Banana Plug
Material	Spring – Beryllium Copper per QQ-C-533, Alloy 172, Cond. HT.
Plug Body	Brass per QQ-B-626, Alloy 360, ½ Hard.
Finish	Gold plated per MIL-G-45204, Type II, Class 00 over electroless nickel.
Insulation	Polypropylene molded to plug body and wire.
Color	Matches color of wire.
Marking	"POMONA ELECTRONICS" "POMONA CALIFORNIA."
Wire	18 AWG stranding 65 x 36 t.c., PVC insulated, 3.66 (.144) O.D.
Marking	"POMONA 2948-XX"
Ratings
Operating Temperature	+55º C. (+131º F.) Max.
Operating Voltage
Hand-held testing	30VAC/60VDC Max.
Hands free testing in controlled voltage environments	5000 WVDC Max.
Current	15 Amperes

Test Equipment General Attributes
Product Height	0.30 IN
Product Length	12 IN
Product Width	5.75 IN
Shipping Weight	0.15 LBS
Country of Origin	United States
Shipping Height	0.30 IN
Shipping Length	12 IN
Shipping Width	5.75 IN
