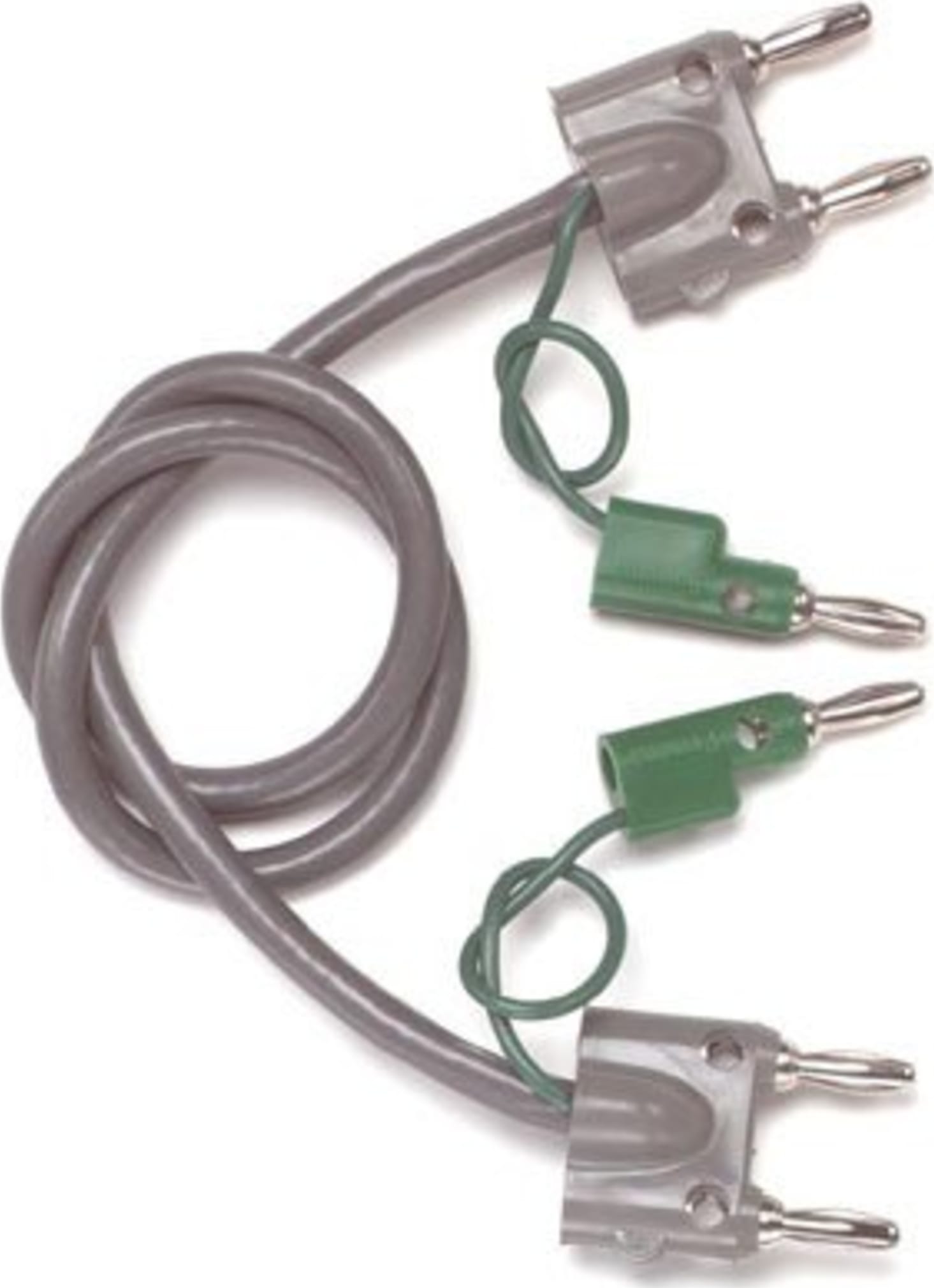

DBL BANANA, SHIELDED LINE-Note:Price is for 2 Units

Cable is ideal in audio applications where a low impedance shielded balance line is desired.
The two conductors in the cable are manufactured by an Electrolytic Tough Pitch process to ensure high copper purity. High copper purity provides superb electrical conductivity.
Banana plugs feature Beryllium Copper springs for long insertion life & can be stacked horizontally/vertically.
Banana plugs are molded directly to the cable and wires for robust pull strength.

View Product Details

Your Price: $121.98

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Recommended for you

Choose a Category

(7)

In Stock!

Add to Cart

MATERIALS
Banana Plugs (Single and Double)
Body	Brass, Nickel Plated
Spring	Beryllium Copper, Nickel Plated
Insulation	Polypropylene, Color: Double - Gray, Single - Green
Two Conductors, Shielded Microphone Type Cable	Two Conductors: 22 AWG, Standing 16 x 34 t.c.
Shield	Tinned Copper, Braided
Jacket	PVC, O.D. .231" (5,87mm) Nom., Color: Gray, Marking: " POMONA 1167-*.
Shield Leads	20 AWG, Stranding 41 x 36 t.c., PVC Insulated .087" (2,21mm) O.D., Color: Green
RATINGS
Operating Voltage	1000 VRMS
Operating Temperature	+55°C (+131°F)

Test Equipment General Attributes
Product Height	0.25 IN
Product Length	6.00 IN
Product Width	5.00 IN
Country of Origin	United States
Shipping Height	0.25 IN
Shipping Length	6.00 IN
Shipping Width	5.00 IN
