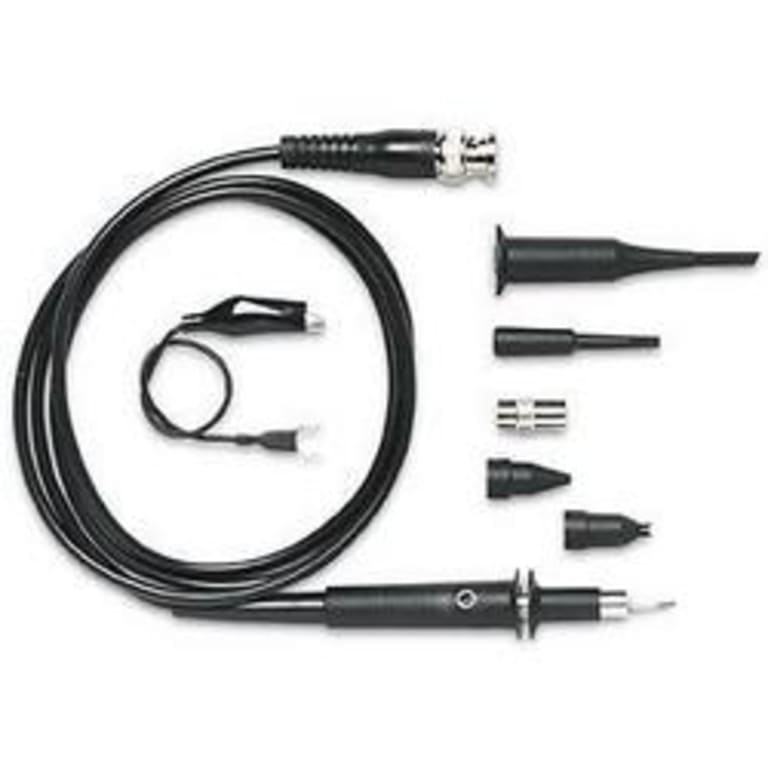

Pomona SP150B - Oscilloscope Probe, X1/X10, 15/150 MHz, Monolithic

Name: Pomona SP150B - Oscilloscope Probe, X1/X10, 15/150 MHz, Monolithic
Brand: Pomona
SKU: PomonaSP150B
Price: 359.70 USD
Availability: InStock

0 reviews | UPC: 095969147200 | Model: Pomona SP150B

Compare

Oscilloscope Probe, X1/X10, 15/150 MHz, Monolithic Note: Price is for 5 Units-Note:Price is for 5 Units

Passive Oscilloscope probes feature a one piece (monolithic) design for robust probe life.
Probe bandwidth ratings are specified as a system bandwidth. System bandwidth includes both probe and oscilloscope together as a system. The result is a probe frequency response that can essentially be considered transparent.
For ease of use, Readout Actuator for probe attenuation sensing and a Ground Reference switch are featured on some probe models
Full set of accessories are included with each probe.
All probes meets IEC1010-2-031, 300V, CAT I

View Product Details

List Price: $393.45

Your Price: $359.70

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona SP150B

Passive Oscilloscope probes feature a one-piece (monolithic) design for robust probe life.
Probe bandwidth ratings are specified as a system bandwidth. System bandwidth includes both probe and oscilloscope together as a system. The result is a probe frequency response that can essentially be considered transparent.
For ease of use, a Readout Actuator for probe attenuation sensing and a Ground Reference switch are featured on some probe models
A full set of accessories is included with each probe.
All probes meet IEC1010-2-031, 300V, CAT I

Oscilloscope Probe, X1/X10, 15/150 MHz, Monolithic

Pomona SP150B is an X1/X10 15/150 MHz Monolithic Oscilloscope Probe

Attenuation	X1/X10
System Bandwidth (3dB) MHz.	15/150
System Risetime ns	23.33/2.33
Compensation Range (pf.)	10-60
Voltage Max.	300
Input Res. (MΩ)	1/10
Input Cap. (pf.)	50/15
Readout Actuator Pin	No
Gnd. Ref.	Yes

1.) Measurements based on 1M Ohm, 20 pf. Oscilloscope.
2.) Maximum probe input voltage is limited to the lesser of 300VDC (includes AC peak to 1.3MHz.) or on X1, to the driven equipment’s input rating.
