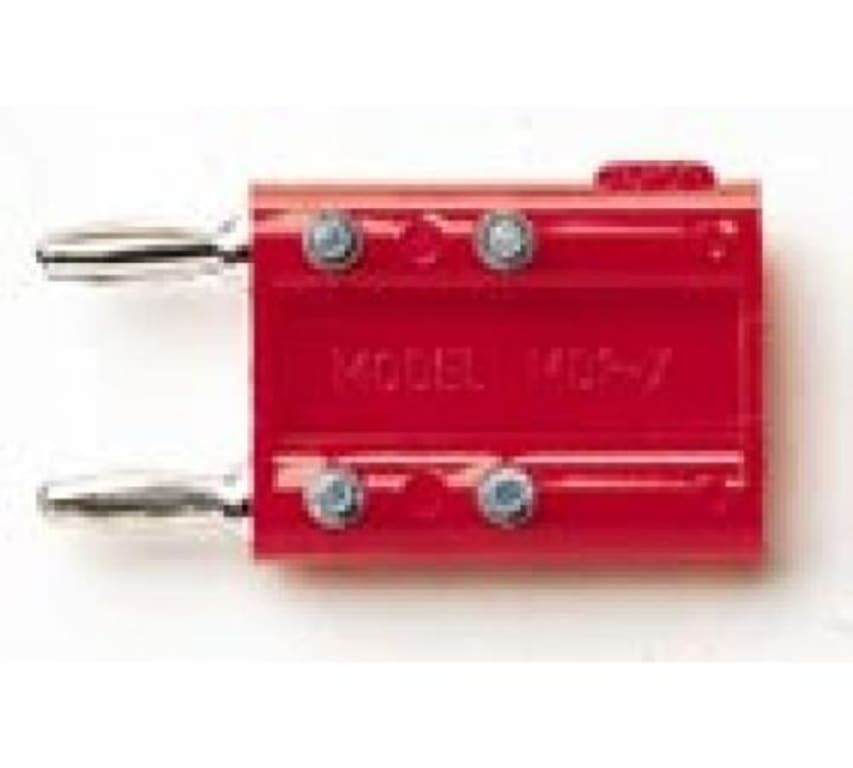

Pomona MDP-X - Double Banana Plug With Isolation Solder Terminals

Name: Pomona MDP-X - Double Banana Plug With Isolation Solder Terminals
Brand: Pomona
SKU: PomonaMDP-X
Price: 96.45 USD
Availability: InStock

0 reviews | UPC: 095969146197 | Model: Pomona MDP-X

Compare

DBL BANANA ISOLATION-Note:Price is for 5 Units

Mates to Model #2269 or any standard double banana jack.
Provides four terminal isolation
Top stack-up receptacles isolated from lower plugs.
Ideal for insertion of matching network in laboratory VTM’s signal generators, etc.
Bright tin plated solder turret terminals for permanent noise-free connections.

View Product Details

Your Price: $96.45

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona MDP-X

Mates to Model #2269 or any standard double banana jack.
Provides four terminal isolation
Top stack-up receptacles isolated from lower plugs.
Ideal for insertion of matching network in laboratory VTM’s signal generators, etc.
Bright tin-plated solder turret terminals for permanent noise-free connections.

Double Banana Plug With Isolation Solder Terminals

Pomona MDP-X is a Double Banana Plug With Isolation Solder Terminals.

Materials
Upper Conn.
Double Banana Jack
Material	Brass per QQ-B-626, Alloy 360, ½ Hard.
Finish	Nickel plated by QQ-N-290, Class 2, 200/300 microinches.
Insulation	Polypropylene molded to plug bodies.
Color	Red.
Marking	“POMONA ELECTRONICS CALIF. MODEL MDP-X”.
Lower Conn.
Double Banana Plug
Material	Spring – Beryllium Copper per QQC-533, Alloy 172, Cond. HT.
Plug body	Brass per QQ-B-626, Alloy 360, ½ Hard.
Finish	Nickel plated per QQ-N-290, Class 2, 200/300 microinches.
Solder turret terminals
Material	Brass per QQ-B-626, Alloy 360, ½ Hard.
Finish	Bright tin plated per MIL-T-10727, Type I, 100/250 microinches.
Ratings
Operating Temperature	+55°C. (+131°F.) MAX.
Operating Voltage	2500 V
Current	15 Amperes
