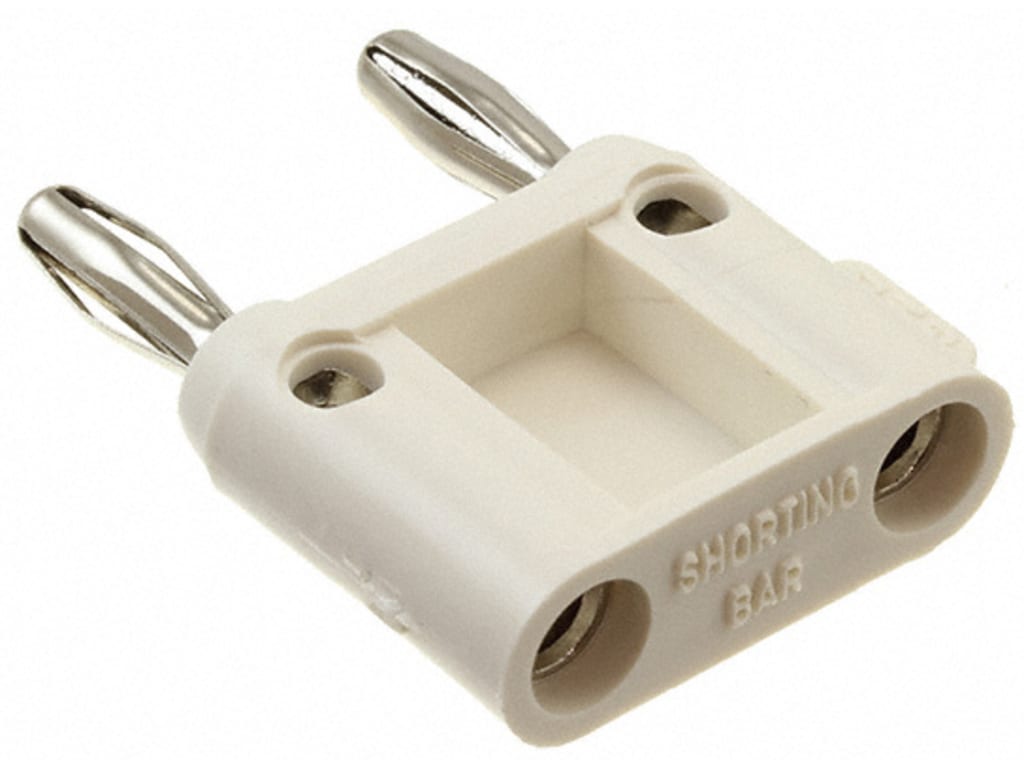

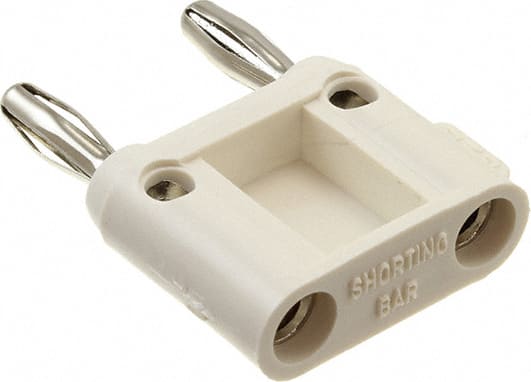

Pomona MDP-S-9 - Double Banana Plug with Shorting Bar, Stackable, White

Name: Pomona MDP-S-9 - Double Banana Plug with Shorting Bar, Stackable, White
Brand: Pomona
SKU: PomonaMDP-S-9
Price: 7.76 USD
Availability: InStock

0 reviews | UPC: 095969209021 | Model: Pomona MDP-S-9

Compare

Double Banana Plug with Shorting Bar, Stackable, White

Banana plugs are internally shorted with #18 AWG wire.
Banana plugs can be vertically and horizontally stacked for test versatility.
Banana plug springs are Nickel Plated Beryllium Copper for long insertion cycle life.
Color: White

View Product Details

List Price: $7.99

Your Price: $7.76

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona MDP-S-9 Accessories

Choose a Category

Adapter Kits

for the Pomona MDP-S-9

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

Pomona MDP-S-9

Banana plugs are internally shorted with #18 AWG wire.
Banana plugs can be vertically and horizontally stacked for test versatility.
Banana plug springs are Nickel Plated Beryllium Copper for long insertion cycle life.
Color: White

Double Banana Plug with Shorting Bar, Stackable, White

Pomona MDP-S-9 is a Double Banana Plug with Shorting Bar. Color - White.

Materials
Banana Jacks	Brass, Nickel Plated
Banana Plug
Body	Brass, Nickel Plated
Spring	Beryllium Copper, Nickel Plated
Insulation	ABS, Color: Per Part Number
Marking	“MDP-S, POMONA ELECTRONICS CO, INC. POMONA, CALIFORNIA”, “SHORTING BAR”
Ratings
Operating Voltage	5000 VDC Max.
Operating Temperature	+50°C (+122°F) Max.
Current	15 Amperes
