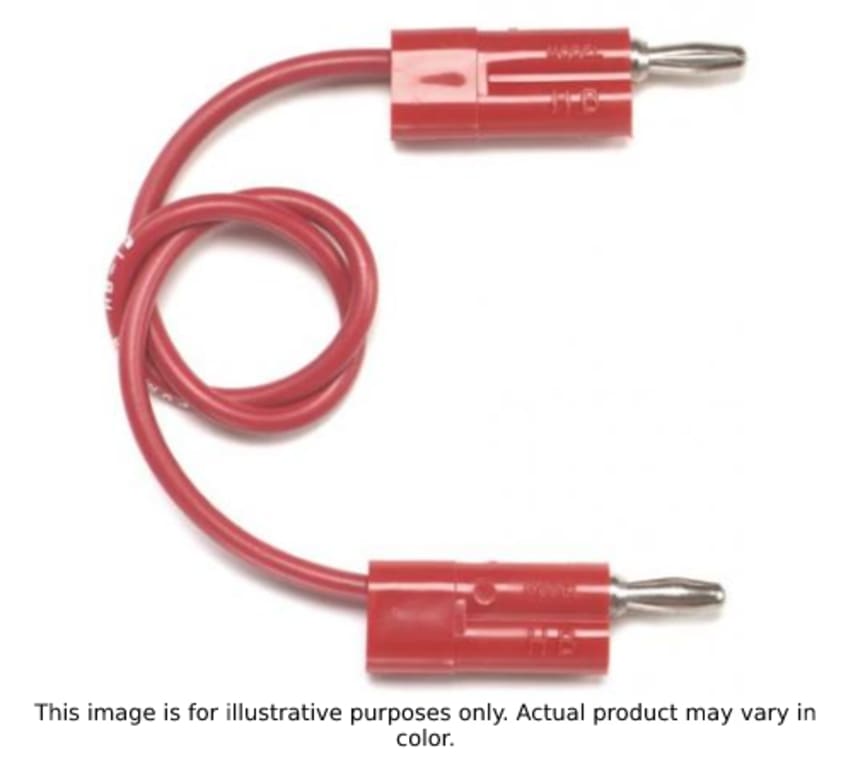

Pomona HB-24-0 - Horizontal Stacking Banana Plug Patch Cord, 24", Black

Name: Pomona HB-24-0 - Horizontal Stacking Banana Plug Patch Cord, 24", Black
Brand: Pomona
SKU: PomonaHB-24-0
Price: 17.47 USD
Availability: InStock

0 reviews | UPC: 095969150507 | Model: Pomona HB-24-0

Compare

BANANA PLUG PATCH CORD (BLACK)

Front and vertical stacking banana plug.
Mates to standard banana jacks.
Ideal for providing jumpers on chassis boxes
Cable length - 24"
Color - Black

View Product Details

List Price: $17.99

Your Price: $17.47

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona HB-24-0

Front and vertical stacking banana plug.
Mates to standard banana jacks.
Ideal for providing jumpers on chassis boxes
Cable length - 24"
Color - Black

Horizontal Stacking Banana Plug Patch Cord, 24", Black

Pomona HB-24-0 is a Horizontal Stacking Banana Plug Patch Cord with Banana Plugs at Each End. Cable length - 24". Color - Black.

Materials
Conn	Extension Stacking Banana Plug
Material	Spring, Beryllium Copper per QQ-C-533, Berylco 25, Cond. HT.
Plug Body and Plug Jack	Brass, per QQ-B-626, Alloy 360, ½ hard.
Finish	Nickel plate per QQ-N-290 class 2 (.0002 min.).
Insulation	Polypropylene molded to plug body, plug jack and wire
Color	Matches color of wire.
Marking	“MODEL HB-XX”
Wire	18 AWG, stranding 65 x 36 t.c., PVC insulated (.050 wall thickness).
Color	See Ordering Information
Marking	“POMONA HB-XX-*”
Ratings
Operating Temperature	+55ºC. (+131ºF.) Max.
Voltage
Hand-held testing	30VAC/60VDC Max.
Hands free testing in controlled voltage environments	5000 WVDC Max.
Current	15 Amperes Cont.
Contact Res.	Less than .001 Ohms per Banana Plug
