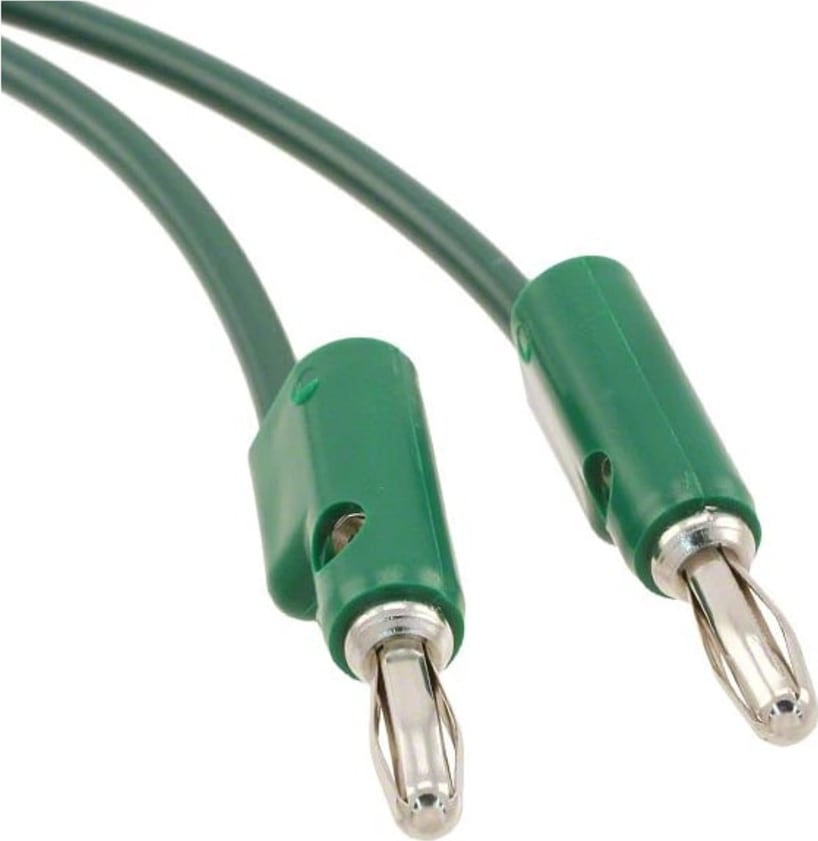

Pomona B-8-5 - Stack-Up Banana Plug Patch Cord, 8", Green

Name: Pomona B-8-5 - Stack-Up Banana Plug Patch Cord, 8", Green
Brand: Pomona
SKU: PomonaB-8-5
Price: 7.76 USD
Availability: InStock

0 reviews | UPC: 095969153362 | Model: Pomona B-8-5

Compare

Stack-Up Banana Plug Patch Cord, 8", Green

Mates to Model #1581, 2854, or any standard-size banana jack.
Cross and vertical stacking banana plug.
Ideal for providing jumpers or chassis boxes.
Cable length: 8 inches
Color: Green

View Product Details

List Price: $7.99

Your Price: $7.76

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona B-8-5

Mates to Model #1581, 2854, or any standard-size banana jack.
Cross and vertical stacking banana plug.
Ideal for providing jumpers or chassis boxes.
Cable length: 8 inches
Color: Green

Stack-Up Banana Plug Patch Cord, 8", Green

Pomona B-8-5 is a Stack-Up Banana Plug Patch Cord that is 8 inches in length and is Green in color. Mates to Model #1581, 2854, or standard Banana Jack. Cross and vertical stacking banana plug. Ideal for providing jumpers or chassis boxes.

Materials
Conn	Extension Stacking Banana Plug
Material	Spring, Beryllium Copper per QQ-C-533, Allow 172, Cond. HT.
Plug Body	Brass, per QQ-B-626, Alloy 360, ½ hard.
Finish	Nickel plate per QQ-N-290 class 2, 200/300 microinches.
Insulation	Polypropylene molded to plug body and wire
Color	Matches color of wire.
Marking	“MODEL B-XX”
Wire	18 AWG, stranding 65 x 36 t.c., PVC insulated, 3.66 (.144) O.D.
Color	See Ordering Information
Marking	“POMONA B-XX-*”
Ratings
Operating Temperature.	+55ºC. (+131ºF.) Max.
Operating Voltage
Hand-held Testing	30VAC/60 VDC Max.
Hands free testing in Controlled Voltage Environment	5000 WVDC
Current	15 Amperes Cont.
