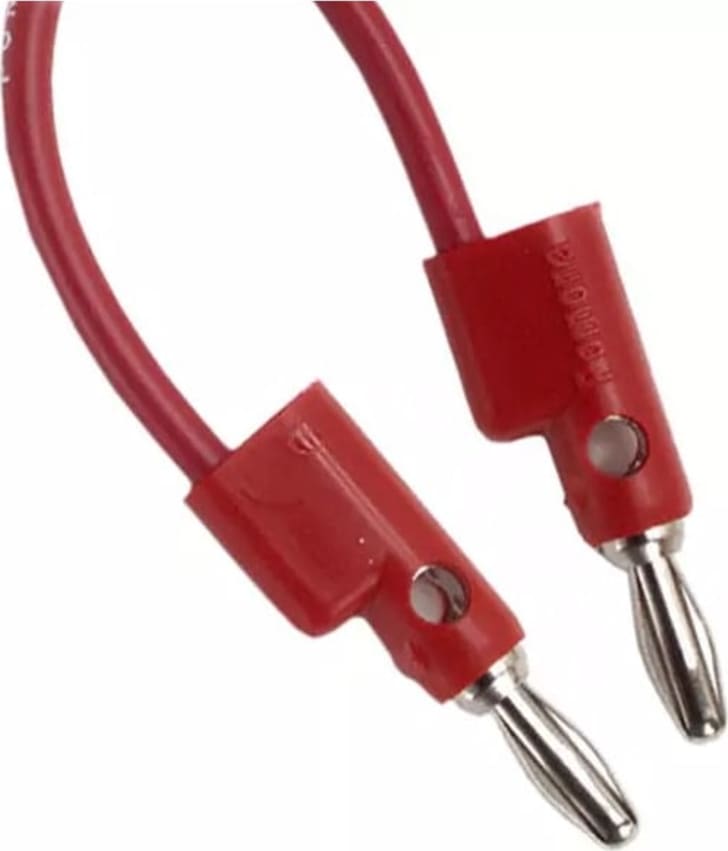

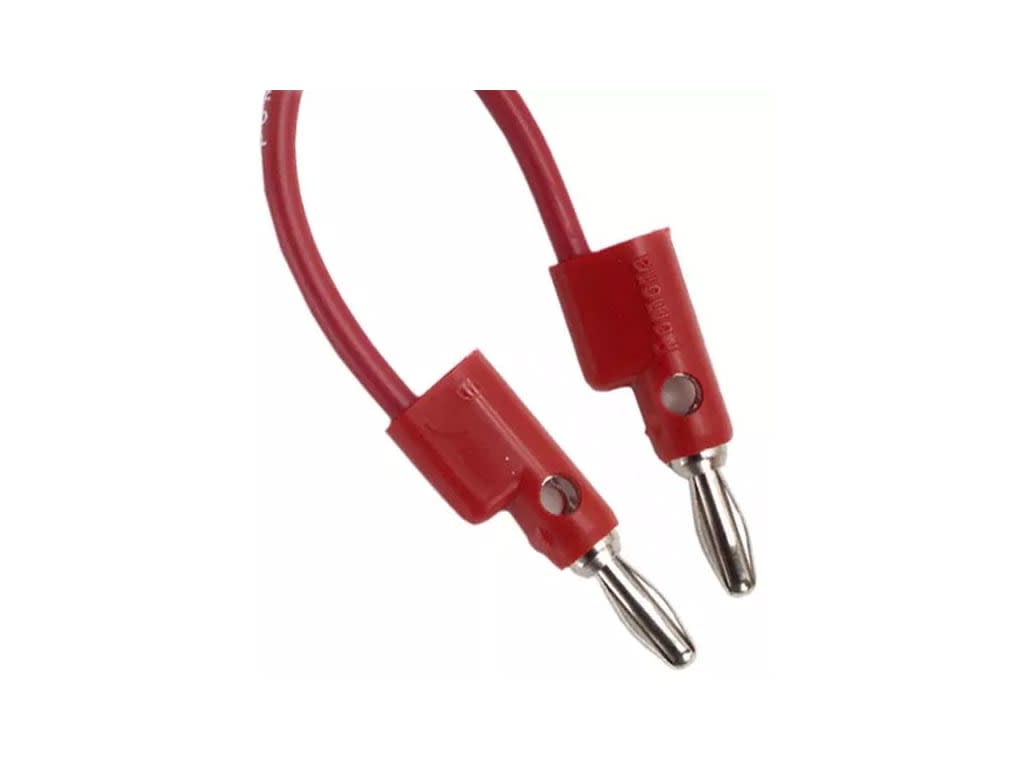

Pomona B-72-2 - Stack-Up Banana Plug Patch Cord, 72", Red

Name: Pomona B-72-2 - Stack-Up Banana Plug Patch Cord, 72", Red
Brand: Pomona
SKU: PomonaB-72-2
Price: 8.73 USD
Availability: InStock
Rating: 5.00 (1 reviews)

5 (1 Review) | UPC: 095969195010 | Model: Pomona B-72-2

Compare

Stack-Up Banana Plug Patch Cord, 72", Red

Mates to Model #1581, 2854, or any standard-size banana jack.
Cross and vertical stacking banana plug.
Ideal for providing jumpers or chassis boxes.
Cable length: 72 inches
Color: Red

View Product Details

List Price: $8.99

Your Price: $8.73

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Pomona B-72-2 Stack-Up Banana Plug Patch Cord, 72", Red	Pomona B-24-02 Banana Plug Patch Cord (Set)	Pomona B-24-3 Stack-Up Banana Plug Patch Cord, 24", Orange	Pomona B-24-4 Stack-Up Banana Plug Patch Cord, 24", Yellow	Pomona B-24-5 Stack-Up Banana Plug Patch Cord, 24", Green	Pomona B-24-6 BANANA PLUG PATCH CORD (BLUE)	Pomona B-24-7 Stack-Up Banana Plug Patch Cord, 24", Violet	Pomona B-24-8 Stack-Up Banana Plug Patch Cord, 24", Gray	Pomona B-24-9 Stack-Up Banana Plug Patch Cord, 24", White	Pomona B-36-1 Stack-Up Banana Plug Patch Cord, 36", Brown	Pomona B-36-3 Stack-Up Banana Plug Patch Cord, 36", Orange	Pomona B-36-4 Stack-Up Banana Plug Patch Cord, 36", Yellow	Pomona B-36-6 Stack-Up Banana Plug Patch Cord, 36", Blue	Pomona B-36-8 Stack-Up Banana Plug Patch Cord, 36", Gray	Pomona B-36-9 Stack-Up Banana Plug Patch Cord, 36", White	Pomona B-72-0 Stack-Up Banana Plug Patch Cord, 72", Black
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Pomona B-72-2

Mates to Model #1581, 2854, or any standard-size banana jack.
Cross and vertical stacking banana plug.
Ideal for providing jumpers or chassis boxes.
Cable length: 72 inches
Color: Red

Stack-Up Banana Plug Patch Cord, 72", Red

Pomona B-72-2 is a Stack-Up Banana Plug Patch Cord that is 72 inches in length and is Red in color. Mates to Model #1581, 2854, or standard Banana Jack. Cross and vertical stacking banana plug. Ideal for providing jumpers or chassis boxes.

Materials
Connection	Extension Stacking Banana Plug
Material	Spring, Beryllium Copper per QQ-C-533, Allow 172, Cond. HT.
Plug Body	Brass, per QQ-B-626, Alloy 360, ½ hard.
Finish	Nickel plate per QQ-N-290 class 2, 200/300 microinches.
Insulation	Polypropylene molded to plug body and wire
Color	Matches color of wire.
Marking	“MODEL B-XX”
Wire	18 AWG, stranding 65 x 36 t.c., PVC insulated, 3.66 (.144) O.D.
Color	See Ordering Information
Marking	“POMONA B-XX-*”
Ratings
Operating Temperature.	+55ºC. (+131ºF.) Max.
Operating Voltage
Hand-held Testing	30VAC/60 VDC Max.
Hands free testing in Controlled Voltage Environment	5000 WVDC
Current	15 Amperes Cont.

Tech Specs

Test Equipment General Attributes
Safety Approval	CE
Product Length	72 IN
Shipping Weight	0.15 LBS
Country of Origin	United States
Shipping Height	0.20 IN
Shipping Length	10.00 IN
Shipping Width	5.00 IN
