• Secure wires quickly; simply, pull and hold down the top of the binding post, insert wire into the opening, and release the top of the binding post to secure your connection.
• Mounts are a #8 hole
• Max mounting panel thickness of 0.188” (4,78mm)
• Use up to 15 AWG wire gauge
• Color - Red

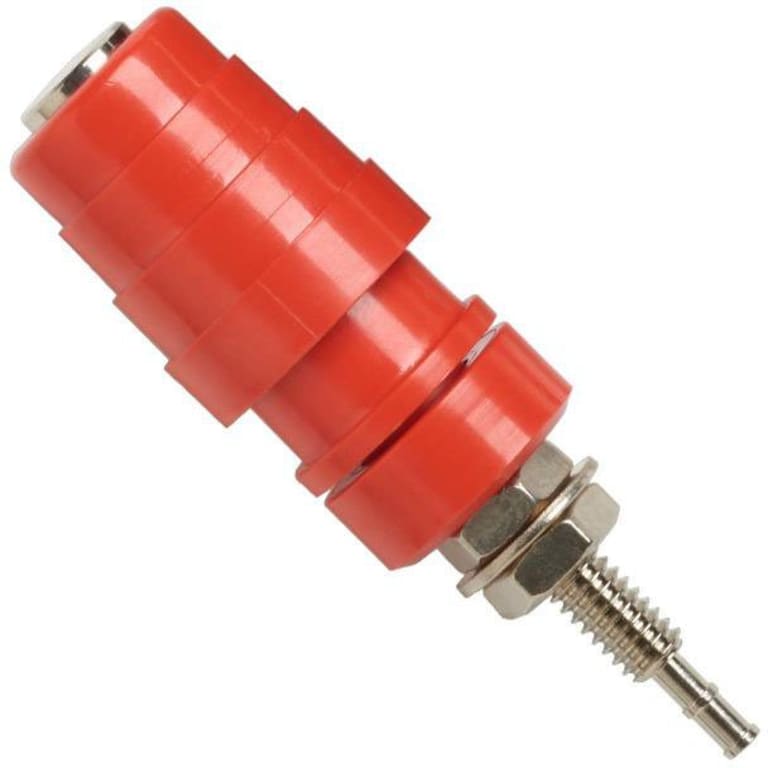

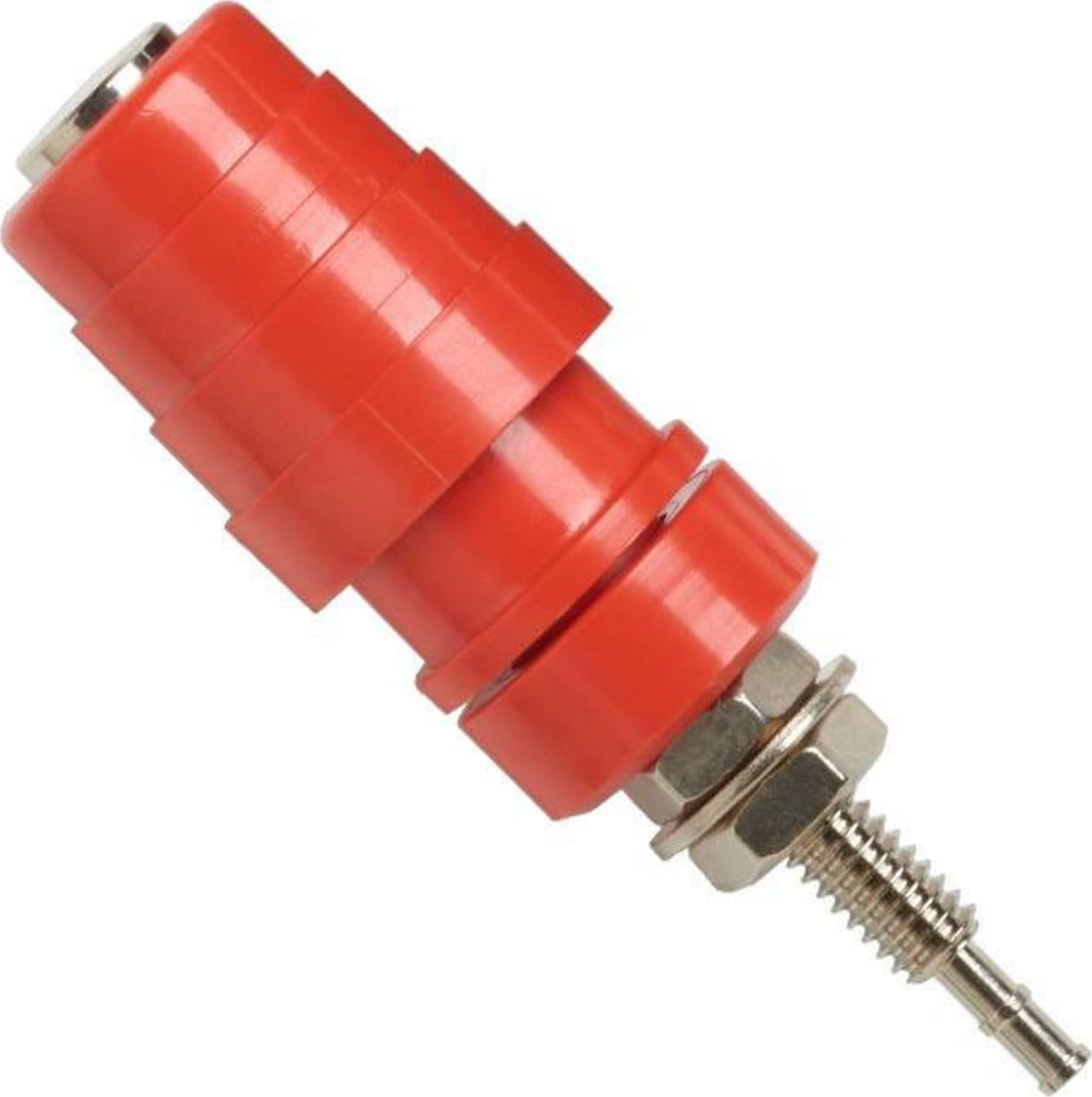

Pomona 73094-2 is a Top Loading Binding Posts, Quick Wire Attachment. Color - Red. Secure wires quickly; simply pull and hold down the top of the binding post, insert a wire into the opening, and release the top of the binding post to secure your connection; the mounts are a #8 hole.

Max mounting panel thickness of 0.188" (4,78mm). Use up to 15 AWG wire gauges. Great for any applications where a standard 5-Way or spring-loaded binding post is used.

Materials

Contact: Nickel-plated brass

Insulation: Valox (UV and fire resistant)
