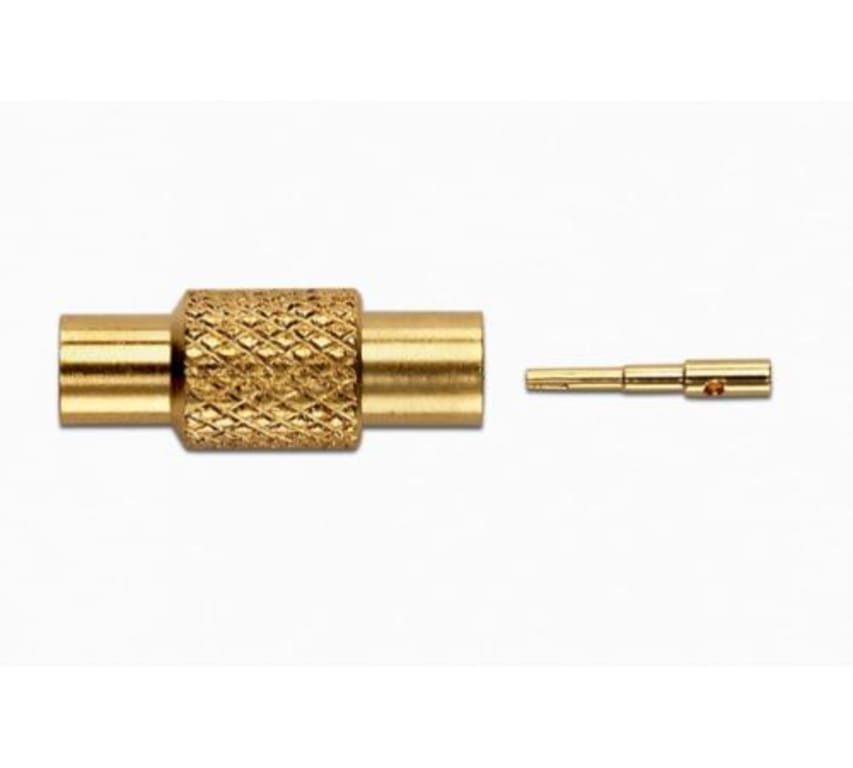

Pomona 73037 - MMCX 50 Ohm Jack, Straight Semi-Rigid Crimp, RG405/U Type

Name: Pomona 73037 - MMCX 50 Ohm Jack, Straight Semi-Rigid Crimp, RG405/U Type
Brand: Pomona
SKU: Pomona73037
Price: 61.95 USD
Availability: InStock

0 reviews | UPC: 095969437370 | Model: Pomona 73037

Compare

MMCX JACK STRAIGHT SEMI-RIGID, RG405-Note:Price is for 5 Units

Snap-on coupling and microminiature size for fast connect and disconnect where space is limited
DC - 6 GHz bandwidth.
50% smaller than MCX connectors.
Connectors allow rotation of 360˚ for layout flexibility
Non-slotted contact design for low RF leakage
Meets CECC 22340.
Perfect for applications where space, weight, performance and ease of assembly are required.
Body is machined brass with gold plating
Center contacts – Plug is gold plated Phosphor bronze and Jack is gold plated beryllium copper
High quality PTFE insulators

View Product Details

Your Price: $61.95

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 73037

Snap-on coupling and microminiature size for fast connect and disconnect where space is limited
DC - 6 GHz bandwidth.
50% smaller than MCX connectors.
Connectors allow rotation of 360˚ for layout flexibility
Non-slotted contact design for low RF leakage

MMCX 50 Ohm Jack, Straight Semi-Rigid Crimp, RG405/U Type

The Pomona 73037 MMCX 50 Ohm Jack Straight Semi-Rigid Crimp RG405/U type is perfect for applications where space, weight, performance, and ease of assembly are required. It is 50% smaller than MCX connectors. The Connectors allow rotation of 360° for layout flexibility. It is a non-slotted contact design for low RF leakage. Meets CECC 22340. DC - 6 GHz bandwidth.

Model: 73037 Specifications
Impedance	50 Ω
Frequency Range	DC - 6 GHz
VSWR	1.3 max.
Working Voltage	170 Vrms max.
Dielectric Withstanding Voltage	500 Vrms
Center/Outer Contact Resistance	0.01 / 0.005Ω
Number of insertions	500 cycles min.
Insulation resistance	> 500 MΩ
Temperature Range	-55° C to 155° C, -67° F to 311° F
