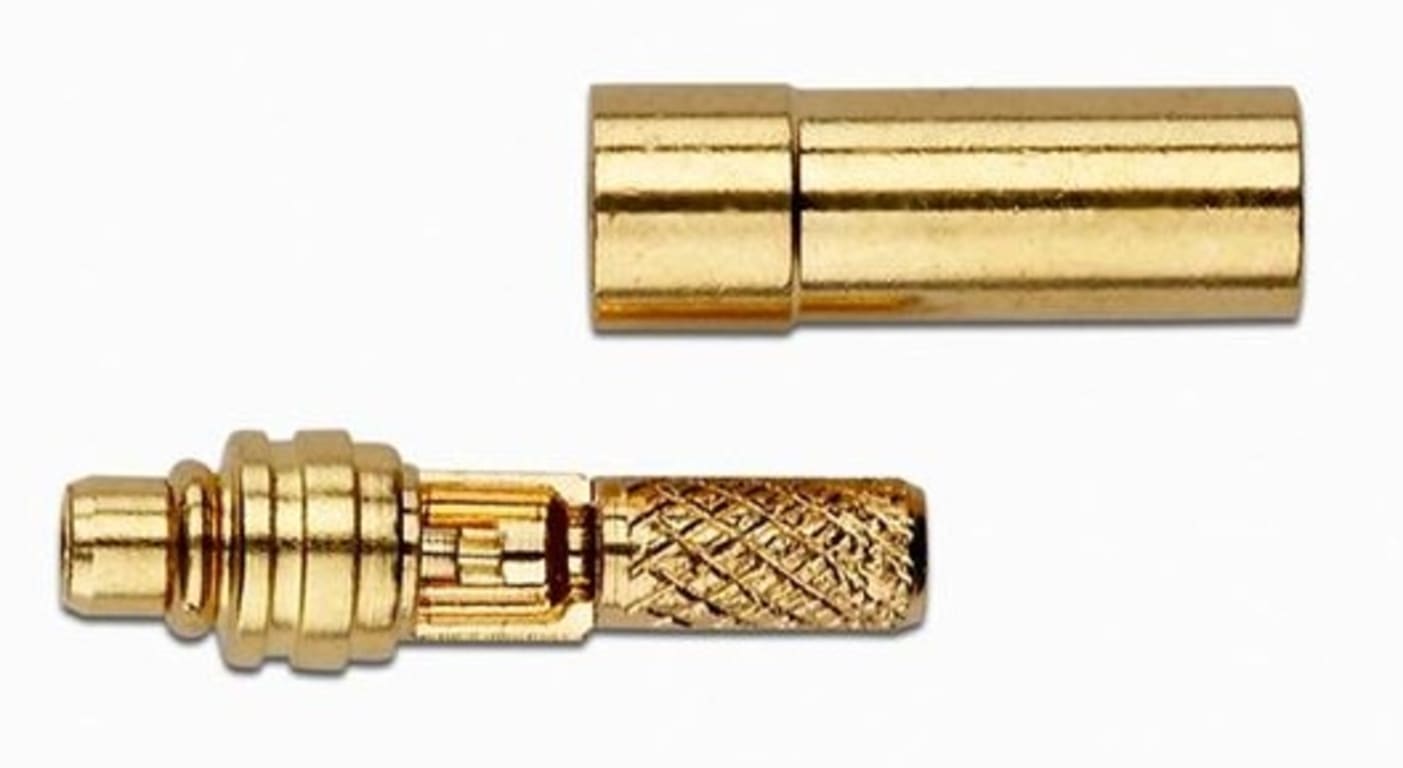

Pomona 73023 - MMCX Plug Straight Crimp, RG174, 316

Name: Pomona 73023 - MMCX Plug Straight Crimp, RG174, 316
Brand: Pomona
SKU: Pomona73023
Price: 37.30 USD
Availability: InStock

0 reviews | UPC: 095969437257 | Model: Pomona 73023

Compare

MMCX PLUG STRAIGHT CRIMP, RG174, 316-Note:Price is for 5 Units

DC - 3 GHz bandwidth
50% smaller than MCX connectors
Connectors allow rotation of 360° for layout flexibility
Non-slotted contact design for low RF leakage
Meets CECC 22340
Perfect for applications where space, weight, performance and ease of assembly are required
Body: Machined brass with gold plating
Center Contact: Plug is gold plated Phosphor bronze and Jack is gold plated Beryllium copper
Insulators: High quality PTFE
Crimp Ferrules: Copper with gold or nickel plating

View Product Details

List Price: $40.80

Your Price: $37.30

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 73023

DC - 3 GHz bandwidth
50% smaller than MCX connectors
Connectors allow rotation of 360° for layout flexibility
Non-slotted contact design for low RF leakage
Meets CECC 22340

MMCX Plug Straight Crimp, RG174, 316

The Pomona 73023 MMCX 50 Ohm Plug Straight Crimp RG174/U & RG316/U is perfect for applications where space, weight, performance, and ease of assembly are required. It is 50% smaller than MCX connectors. The Connectors allow rotation of 360° for layout flexibility. It is a non-slotted contact design for low RF leakage. Meets CECC 22340. DC - 3 GHz bandwidth.

Model: 730023 Specifications
Impedance	50 Ω
Frequency Range	DC - 3 GHz
VSWR	1.35 max.
Working Voltage	170 Vrms max.
Dielectric Withstanding Voltage	500 Vrms
Center/Outer Contact Resistance	5 / 2.5 mΩ
Number of insertions	500 cycles min.
Insulation resistance	> 500 MΩ min.
Temperature Range	-55° C to 155° C, -67° F to 311° F
