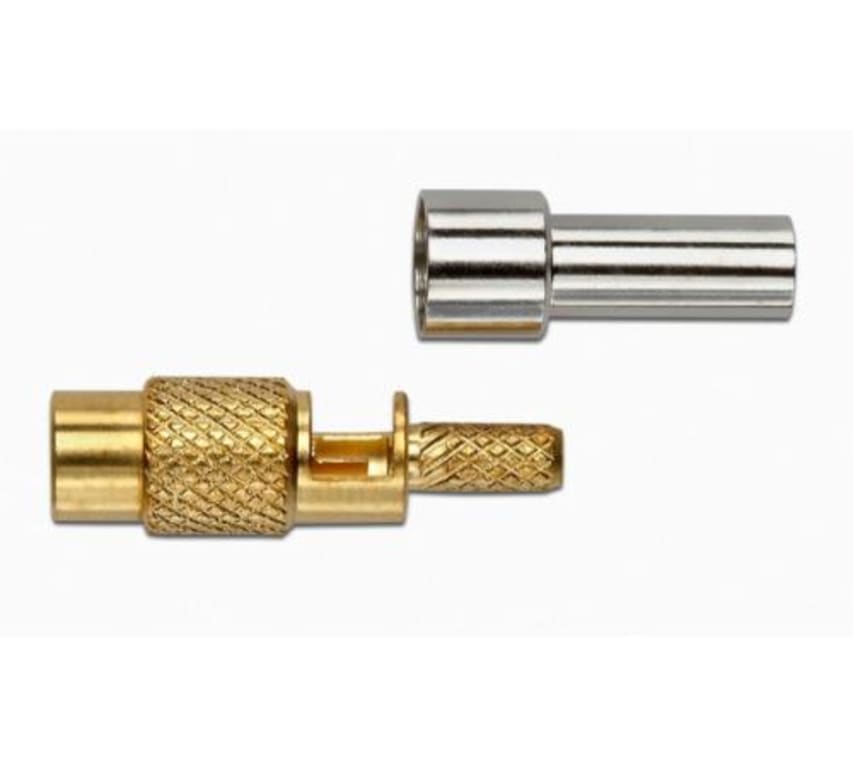

Pomona 73012 - MCX Jack, Straight Crimp, 75 Ohm, RG179/U Type

Name: Pomona 73012 - MCX Jack, Straight Crimp, 75 Ohm, RG179/U Type
Brand: Pomona
SKU: Pomona73012
Price: 10.20 USD
Availability: InStock

0 reviews | UPC: 095969437158 | Model: Pomona 73012

Compare

MCX JACK STRAIGHT CRIMP, RG179

Snap-on coupling and miniature size for fast connect and disconnect where space is limited.
DC - 2 GHz bandwidth.
30% smaller than SMB connectors.
Meets CECC 22220
Perfect for applications where space, weight, performance and ease of assembly are required.
Precision machined and gold-plated for low loss.
Body is machined brass with gold plating.
Center contacts – Plug is gold plated brass and Jack is gold plated beryllium copper.
High quality PTFE insulators.
Crimp Ferrules are gold or nickel plated copper.

View Product Details

List Price: $10.99

Your Price: $10.20

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 73012

Snap-on coupling and miniature size for fast connect and disconnect where space is limited.
DC - 2 GHz bandwidth.
30% smaller than SMB connectors.
Meets CECC 22220
Perfect for applications where space, weight, performance, and ease of assembly are required.

MCX Jack, Straight Crimp, 75 Ohm, RG179/U Type

The Pomona 73012 MCX Jack Straight Crimp 75 Ohm RG179/U type is precision machined and gold-plated for low loss. It is 30% smaller than SMB connectors. Perfect for applications where space, weight, performance, and ease of assembly are required. Meets CECC 22220. DC - 3 GHz bandwidth.

Model: 730012 Specifications
Impedance	75 Ω
Frequency Range	DC - 2 GHz
VSWR	1.4 max.
Working Voltage	170 Vrms max.
Dielectric Withstanding Voltage	750 Vrms
Center/Outer Contact Resistance	5 / 2.5 mΩ
Number of insertions	500 cycles min.
Insulation resistance	> 1000 MΩ min.
Temperature Range	-55° C to 155° C, -67° F to 311° F
