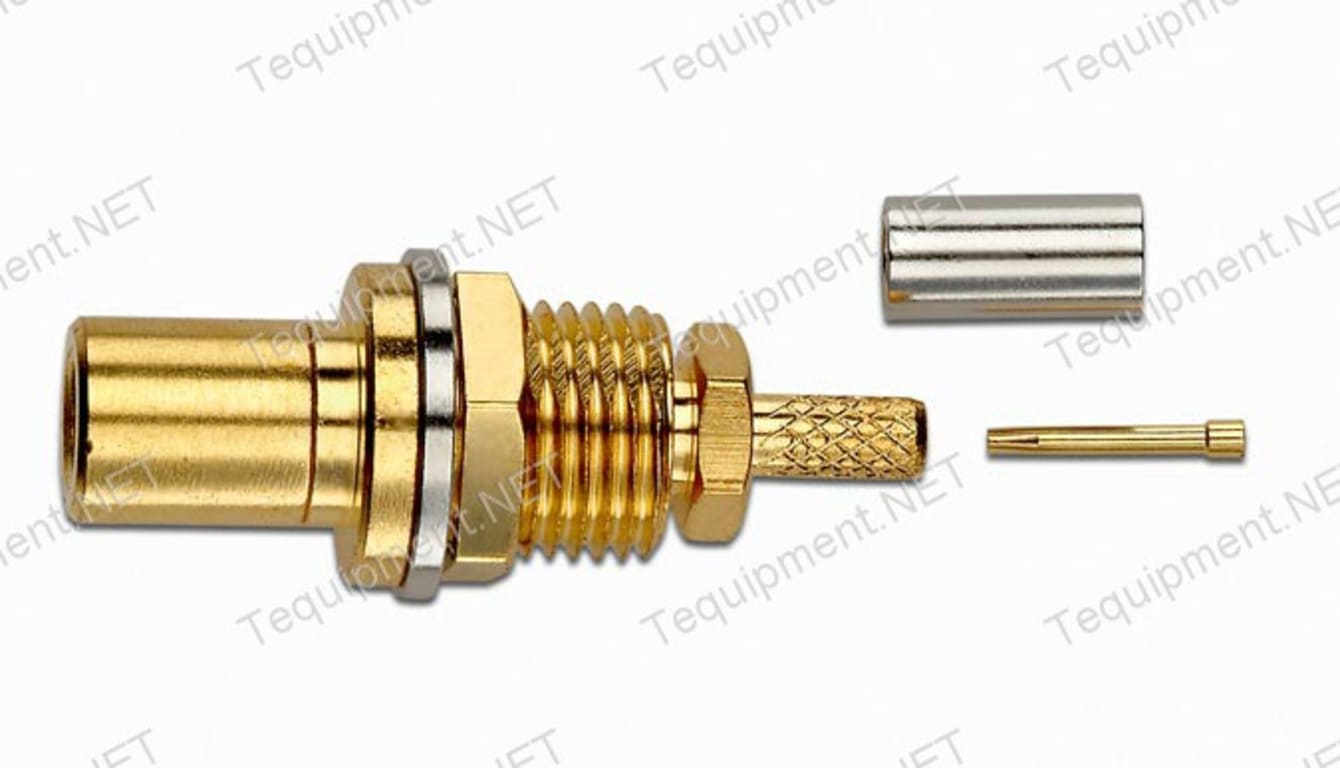

Pomona 73000 - SMB Bulkhead Jack for RG174, 188 and 316

Name: Pomona 73000 - SMB Bulkhead Jack for RG174, 188 and 316
Brand: Pomona
SKU: Pomona73000
Price: 9.70 USD
Availability: InStock

0 reviews | UPC: 095969437035 | Model: Pomona 73000

Compare

SMB BULKHEAD JACK, RG174, 188, 316

DC - 4 GHz bandwidth
Meets MIL-C-39012, IEC 60169-1Q, BS9210N0007, NFC93650, CECC 22130
Small size and durability for RF coaxial applications
Precision machined and gold-plated for low loss
Body: Machined brass with gold plating
Center Contact: Plug is gold plated brass and Jack is gold plated Beryllium copper
Insulators: High quality PTFE
Crimp Ferrules: Copper with nickel plating
Gaskets: Silicone rubber

View Product Details

List Price: $9.99

Your Price: $9.70

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 73000

DC - 4 GHz bandwidth
Meets MIL-C-39012, IEC 60169-1Q, BS9210N0007, NFC93650, CECC 22130
Small size and durability for RF coaxial applications
Precision machined and gold-plated for low loss
Insulators: High-quality PTFE

SMB Bulkhead Jack for RG174, 188 and 316

The Pomona 72998 SMB Plug Bulkhead 50 Ohm RG174/U RG188/U & RG316/U type is precision machined and gold-plated for low loss. Small size and durability for RF coaxial applications. Meets MIL-C-39012, IEC 60169-1Q, BS9210N0007, NFC93650, CECC 22130. DC - 2 GHz bandwidth.

Model: 73000 Specifications
Impedance	50 Ω
Frequency Range	DC - 4 GHz
VSWR	1.3 max.
Working Voltage	250 Vrms max.
Dielectric Withstanding Voltage	750 Vrms
Center/Outer Contact Resistance	6 / 1 mΩ
Number of insertions	500 cycles min.
Insulation resistance	> 1000 MΩ min.
Temperature Range	-65° C to 165° C, -85° F to 329° F
