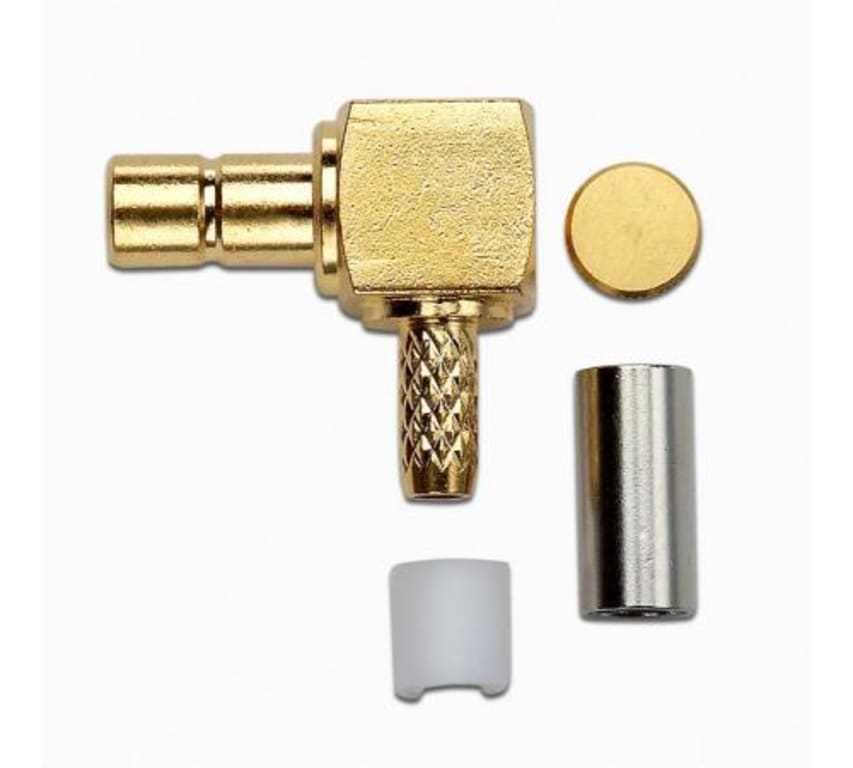

Pomona 72992 - SMB Jack, Right-Angle Crimp, 50 Ohm, RG174/U, 188/U, And 316/U Type

Name: Pomona 72992 - SMB Jack, Right-Angle Crimp, 50 Ohm, RG174/U, 188/U, And 316/U Type
Brand: Pomona
SKU: Pomona72992
Price: 14.56 USD
Availability: InStock

0 reviews | UPC: 095969436953 | Model: Pomona 72992

Compare

SMB PLUG R/A CRIMP, RG174, 188, 316

DC - 3 GHz bandwidth.
Meets MIL-C-39012, IEC 60169-1Q, BS9210N0007, NFC93650, CECC 22130.
Small size and durability for RF coaxial applications.
Precision machined and gold-plated for low loss
Snap-on coupling and small size for fast connect and disconnect.
Body is machined brass with gold plating.
Center contacts – Plug is gold plated brass and Jack is gold plated beryllium copper.
High quality PTFE insulators.
Crimp Ferrules are nickel plated copper
Silicone rubber gaskets.

View Product Details

List Price: $14.99

Your Price: $14.56

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 72992

DC - 3 GHz bandwidth.
Meets MIL-C-39012, IEC 60169-1Q, BS9210N0007, NFC93650, CECC 22130.
Small size and durability for RF coaxial applications.
Precision machined and gold-plated for low loss.
Snap-on coupling and small size for fast connection and disconnect.

SMB Jack, Right-Angle Crimp, 50 Ohm, RG174/U, 188/U, And 316/U Type

The Pomona 72992 SMB Jack Right-Angle Crimp 50 Ohm RG174/U RG188/U and RG316/U type is precision machined and gold-plated for low loss. Small size and durability for RF coaxial applications. Meets MIL-C-39012, IEC 60169-1Q, BS9210N0007, NFC93650, CECC 22130. DC - 3 GHz bandwidth.

Model: 72992 Specifications
Impedance	50 Ω
Frequency Range	DC - 3 GHz
VSWR	1.3 max.
Working Voltage	250 Vrms max.
Dielectric Withstanding Voltage	750 Vrms
Center/Outer Contact Resistance	6 / 1 mΩ
Number of insertions	500 cycles min.
Insulation resistance	> 1000 MΩ min.
Temperature Range	-65° C to 165° C, -85° F to 329° F
