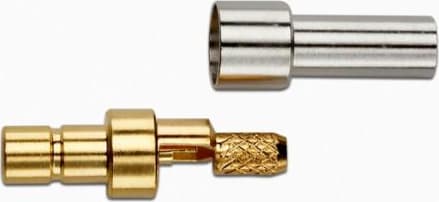

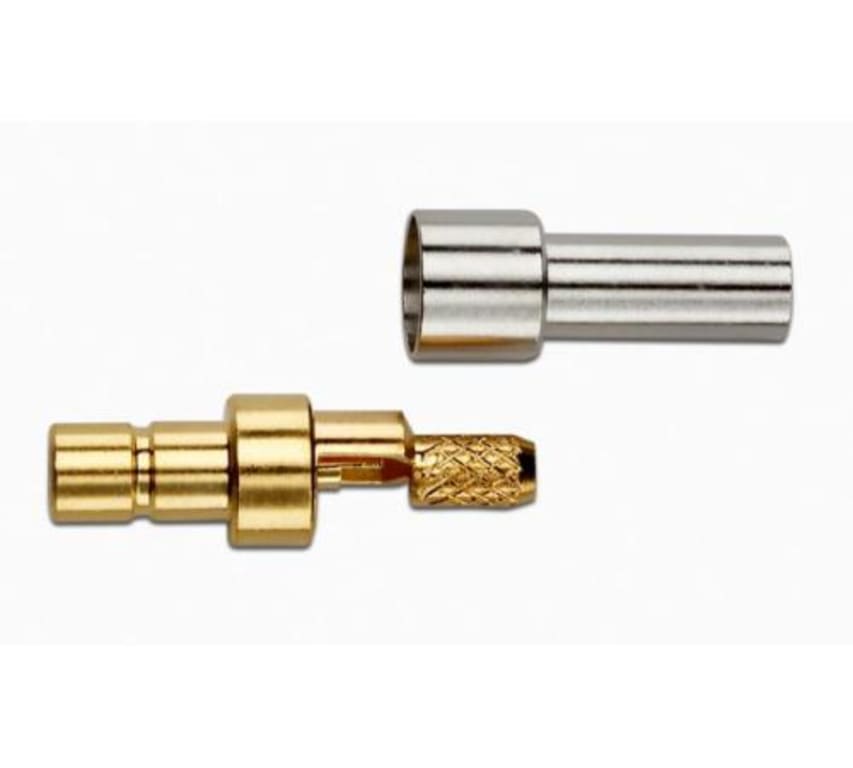

Pomona 72984 - SMB Jack, Straight Crimp, 50 Ohm, RG174/U, RG188/U, And RG316/U Type

Name: Pomona 72984 - SMB Jack, Straight Crimp, 50 Ohm, RG174/U, RG188/U, And RG316/U Type
Brand: Pomona
SKU: Pomona72984
Price: 13.59 USD
Availability: InStock

0 reviews | UPC: 095969436878 | Model: Pomona 72984

Compare

SMB PLUG STRAIGHT CRIMP, RG174, 188, 316

DC - 4 GHz bandwidth
Snap-on coupling for fast connect and disconnect
Small size and durability for RF coaxial applications
Precision machined and gold-plated for low loss
Body is machined brass with gold plating
Center contacts – Plug is gold plated brass
High quality PTFE insulators
Crimp Ferrules are nickel plated copper
Silicone rubber gaskets

View Product Details

List Price: $13.99

Your Price: $13.59

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 72984

DC - 4 GHz bandwidth
Snap-on coupling for fast connect and disconnect
Small size and durability for RF coaxial applications
Precision machined and gold-plated for low loss
Body is machined brass with gold plating

SMB Jack, Straight Crimp, 50 Ohm, RG174/U, RG188/U, And RG316/U Type

The Pomona 72984 SMB Jack Straight Crimp 50 Ohm RG174/U RG188/U & RG316/U type is precision machined and gold-plated for low loss. Small size and durability for RF coaxial applications. Meets MIL-C-39012, IEC 60169-1Q, BS9210N0007, NFC93650, CECC 22130. DC - 3 GHz bandwidth.

Model: 72984 Specifications
Impedance	50 Ω
Frequency Range	DC- 3 GHz
Working Voltage	250 Vrms max.
Dielectric Withstanding Voltage	750 Vrms
VSWR	1.3 max.
Center/Outer Contact Resistance	6 / 1 mΩ
Insulation resistance	> 1000 MΩ min.
Number of Insertions	500 cycles min.
Temperature Range	-65° C to 165° C, -85° F to 329° F
