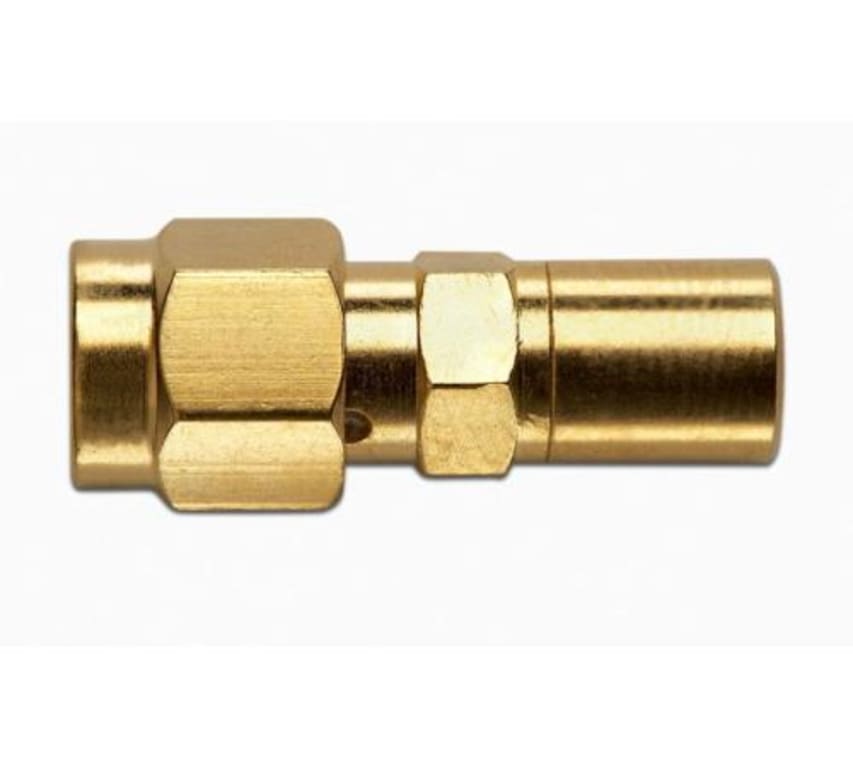

Pomona 72977 - SMA (M) To SMB (F) Adapter

Name: Pomona 72977 - SMA (M) To SMB (F) Adapter
Brand: Pomona
SKU: Pomona72977
Price: 14.56 USD
Availability: InStock

0 reviews | UPC: 095969436809 | Model: Pomona 72977

Compare

SMA (M) TO SMB (F)

DC - 4 GHz.
Meets MIL-C-39012, IEC 169-15, CECC 22110
Small size and durability for mobile communications.
Precision machined and gold-plated for low loss.
High bandwidth, small size, and durability for confident connections.
Body is machined brass with gold plating.
Center Contacts - Plug is gold plated brass and Jack is gold plated Beryllium copper.
Insulators are high quality PTFE.
Crimp Ferrules are copper with gold or nickel plating.
Gaskets are silicone rubber.

View Product Details

List Price: $14.99

Your Price: $14.56

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 72977

DC - 4 GHz.
Meets MIL-C-39012, IEC 169-15, CECC 22110
Small size and durability for mobile communications.
Precision machined and gold-plated for low loss.
High bandwidth, small size, and durability for confident connections.

SMA (M) To SMB (F) Adapter

The Pomona 72976 SMA (M) to SMB (F) Adapter is precision machined and gold-plated for low loss. Small size and durability for mobile communications. Meets MIL-C-39012, IEC 169-15, CECC 22110. DC - 4 GHz.

Model: 729677 Specifications
Impedance	50 Ω
Frequency Range	DC- 4 GHz
Working Voltage	< 500 Vpeak
Dielectric Withstanding Voltage	1,000 Vrms
VSWR	1.35 max.
Center/Outer Contact Resistance	0.006/0.002 Ω max
Insulation resistance	> 5000 MΩ
Number of Insertions	500 cycles minimum
Temperature Range	-65° C to 165° C, -85° F to 329° F
