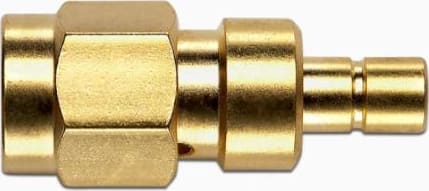

Pomona 72976 - SMA (M) To SMB (M) Adapter

Name: Pomona 72976 - SMA (M) To SMB (M) Adapter
Brand: Pomona
SKU: Pomona72976
Price: 14.56 USD
Availability: InStock

0 reviews | UPC: 095969436793 | Model: Pomona 72976

Compare

SMA (M) TO SMB (M)

DC - 4 GHz
Small size and durability for mobile communications
Precision machined and gold-plated for low loss
Meets MIL-C-39012, IEC 169-15, CECC 22110
Body: Machined brass with gold plating
Center Contact: Plug is gold plated brass and Jack is gold plated Beryllium copper
Insulators: High quality PTFE
Crimp Ferrules: Copper with gold or nickel plating
Gaskets: Silicone rubber

View Product Details

List Price: $14.99

Your Price: $14.56

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 72976

DC - 4 GHz
Small size and durability for mobile communications
Precision machined and gold-plated for low loss
Meets MIL-C-39012, IEC 169-15, CECC 22110
Center Contact: Plug is gold plated brass, and Jack is gold plated Beryllium copper

SMA (M) To SMB (M) Adapter

The Pomona 72976 SMA (M) to SMB (M) Adapter is precision machined and gold-plated for low loss. Small size and durability for mobile communications. Meets MIL-C-39012, IEC 169-15, CECC 22110. DC - 4 GHz.

Model: 729676 Specifications
Impedance	50 Ω
Frequency Range	DC- 4 GHz
Working Voltage	< 500 Vpeak
Dielectric Withstanding Voltage	1,000 Vrms
VSWR	1.35 max.
Center/Outer Contact Resistance	0.006/0.002 Ω max
Insulation resistance	> 5000 MΩ
Number of Insertions	500 cycles minimum
Temperature Range	-65° C to 165° C, -85° F to 329° F
