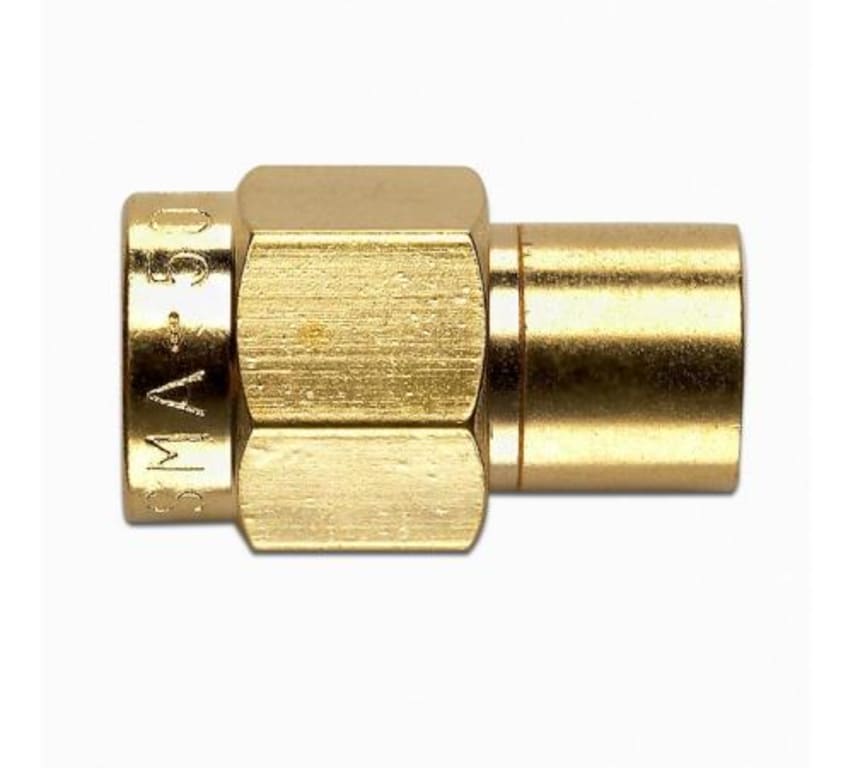

Pomona 72975 - SMA Plug, 50 Ohm Termination

Name: Pomona 72975 - SMA Plug, 50 Ohm Termination
Brand: Pomona
SKU: Pomona72975
Price: 33.01 USD
Availability: InStock

0 reviews | UPC: 095969436786 | Model: Pomona 72975

Compare

SMA PLUG, 50 OHM TERMINATION

DC - 18 GHz, 1 Watt
Meets MIL-C-39012, IEC 169-15, CECC 22110
Small size and durability for mobile communications.
Precision machined and gold-plated for low loss
Body is machined brass with gold plating
Center Contacts - Plug is gold plated brass and Jack is gold plated Beryllium copper.
Insulators are high quality PTFE.
Crimp Ferrules are copper with gold or nickel plating.
Gaskets are silicone rubber.
High bandwidth, small size, and durability for confident connections

View Product Details

List Price: $33.99

Your Price: $33.01

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 72975

DC - 18 GHz, 1 Watt
Meets MIL-C-39012, IEC 169-15, CECC 22110
Small size and durability for mobile communications.
Precision machined and gold-plated for low loss.
High bandwidth, small size, and durability for confident connections

SMA Plug, 50 Ohm Termination

The Pomona 72975 SMA Plug 50 Ohm Termination is precision machined and gold-plated for low loss. Small size and durability for mobile communications. Meets MIL-C-39012, IEC 169-15, CECC 22110. DC - 18 GHz, 1 Watt.

Model: 729675 Specifications
Impedance	50 Ω
Frequency Range	DC - 18 GHz
Working Voltage	< 500 Vpeak
Dielectric Withstanding Voltage	1,000 Vrms
VSWR	1.3 max.
Center/Outer Contact Resistance	0.003/0.002 Ω max
Insulation resistance	> 5000 MΩ
Power	1 Watt
Temperature Range	-65° C to 165° C, -85° F to 329° F
