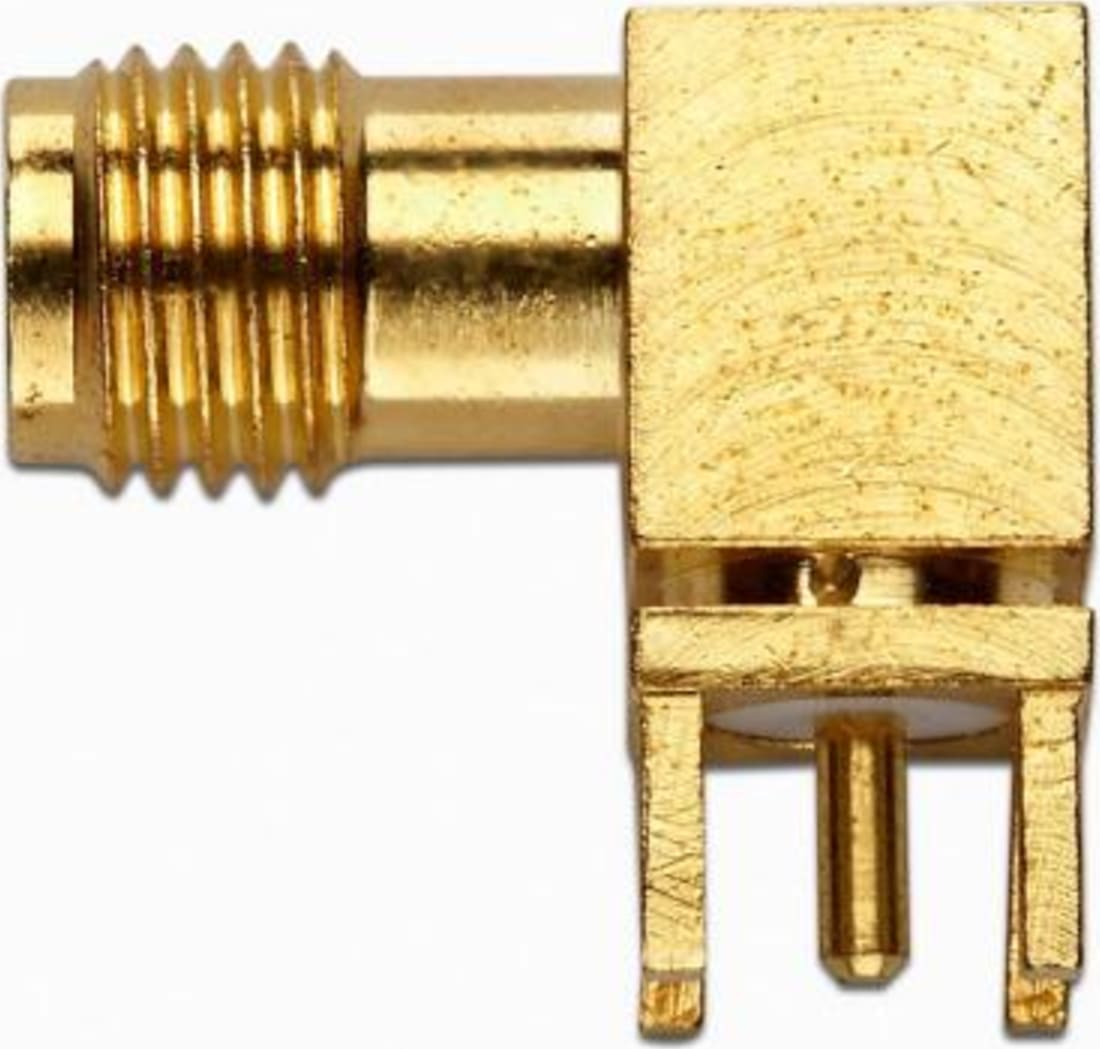

Pomona 72971 - SMA 50 Ohm Jack, Right-Angle PCB Receptacle

Name: Pomona 72971 - SMA 50 Ohm Jack, Right-Angle PCB Receptacle
Brand: Pomona
SKU: Pomona72971
Price: 8.73 USD
Availability: InStock

0 reviews | UPC: 095969436748 | Model: Pomona 72971

Compare

SMA JACK R/A PCB RECEPTACLE

DC – 18 GHz
Small size and durability for mobile communications
Precision machined and gold-plated for low loss
Body: Machined brass with gold plating
Center Contact: Plug is gold plated brass and Jack is gold plated Beryllium copper
Insulators: High quality PTFE
Crimp Ferrules: Copper with gold or nickel plating
Gaskets: Silicone rubber

View Product Details

List Price: $8.99

Your Price: $8.73

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 72971

DC – 18 GHz
Small size and durability for mobile communications
Precision machined and gold-plated for low loss
Body: Machined brass with gold plating
Center Contact: Plug is gold plated brass and Jack is gold plated Beryllium copper

SMA 50 Ohm Jack, Right-Angle PCB Receptacle

The Pomona 72971 SMA 50 Ohm Jack Right-Angle PCB Receptacle is precision machined and gold-plated for low loss. Small size and durability for mobile communications. Meets MIL-C-39012, IEC 169-15, CECC 22110. DC – 18 GHz bandwidth.

Model: 729671 Specifications
Impedance	50 Ω
Frequency Range	DC - 18 GHz
Working Voltage	< 500 Vpeak
Dielectric Withstanding Voltage	1,000 Vrms
VSWR	1.2 max.
Center/Outer Contact Resistance	0.003/0.002 Ω max
Insulation resistance	> 5000 MΩ
Number of Insertions	500 cycles minimum
Temperature Range	-65° C to 165° C, -85° F to 329° F
