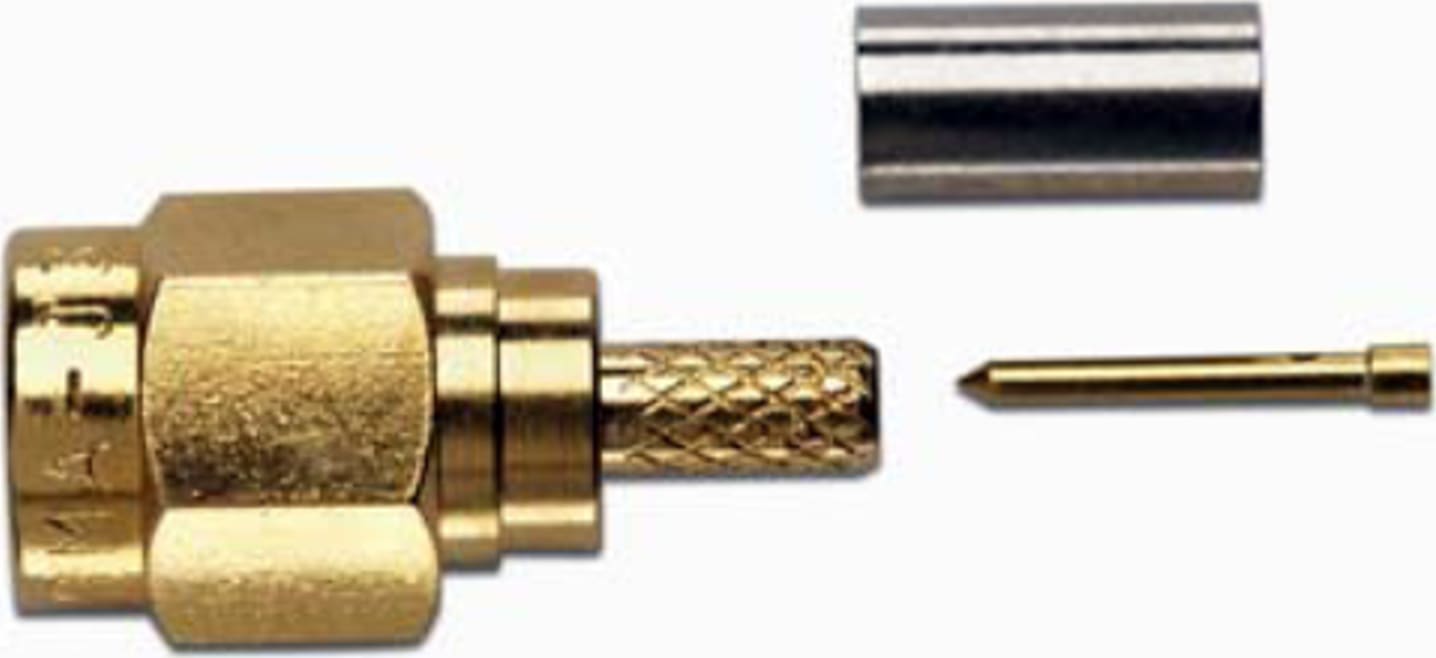

Pomona 72946 - SMA 50 Ohm Plug, Straight Crimp, RG174/U, 188/U, And 316/U Type

Name: Pomona 72946 - SMA 50 Ohm Plug, Straight Crimp, RG174/U, 188/U, And 316/U Type
Brand: Pomona
SKU: Pomona72946
Price: 40.95 USD
Availability: InStock

0 reviews | UPC: 095969436496 | Model: Pomona 72946

Compare

SMA PLUG STRAIGHT CRIMP, RG174, 188, 316-Note:Price is for 5 Units

DC – 12.4 GHz on flexible cable
Meets MIL-C-39012, IEC 169-15, CECC 22110
Small size and durability for mobile communications.
Precision machined and gold-plated for low loss.
Body is machined brass with gold plating
Center Contacts - Plug is gold plated brass and Jack is gold plated Beryllium copper.
Insulators are high quality PTFE.
Crimp Ferrules are copper with gold or nickel plating.
Gaskets are silicone rubber
High bandwidth, small size, and durability for confident connections

View Product Details

Your Price: $40.95

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 72946

DC - 12.4 GHz on a flexible cable
Meets MIL-C-39012, IEC 169-15, CECC 22110
Small size and durability for mobile communications.
Precision machined and gold-plated for low loss.
High bandwidth, small size, and durability for confident connections.

SMA 50 Ohm Plug, Straight Crimp, RG174/U, 188/U, And 316/U Type

The Pomona 72946 SMA 50 Ohm Plug Straight Crimp RG174/U RG188/U & RG316/U type is precision machined and gold-plated for low loss. It has a small size and durability for mobile communications. Meets MIL-C-39012, IEC 169-15, CECC 22110. DC – 12.4 GHz on a flexible cable.

Model: 72946 Specifications
Impedance	50 Ω
Frequency Range	DC – 12.4 GHz max.
Working Voltage	< 375 Vpeak
Dielectric Withstanding Voltage	1,000 Vrms
VSWR	1.35 max.
Center/Outer Contact Resistance	0.003/0.002 Ω max
Insulation resistance	> 5000 MΩ
Number of Insertions	500 cycles minimum
Temperature Range	-65° C to 165° C, -85° F to 329° F
