Pomona 72934 - Multi-RF Direct Adapter Kit

Name: Pomona 72934 - Multi-RF Direct Adapter Kit
Brand: Pomona
SKU: Pomona72934
Price: 565.51 USD
Availability: InStock

0 reviews | UPC: 095969321976 | Model: Pomona 72934

Compare

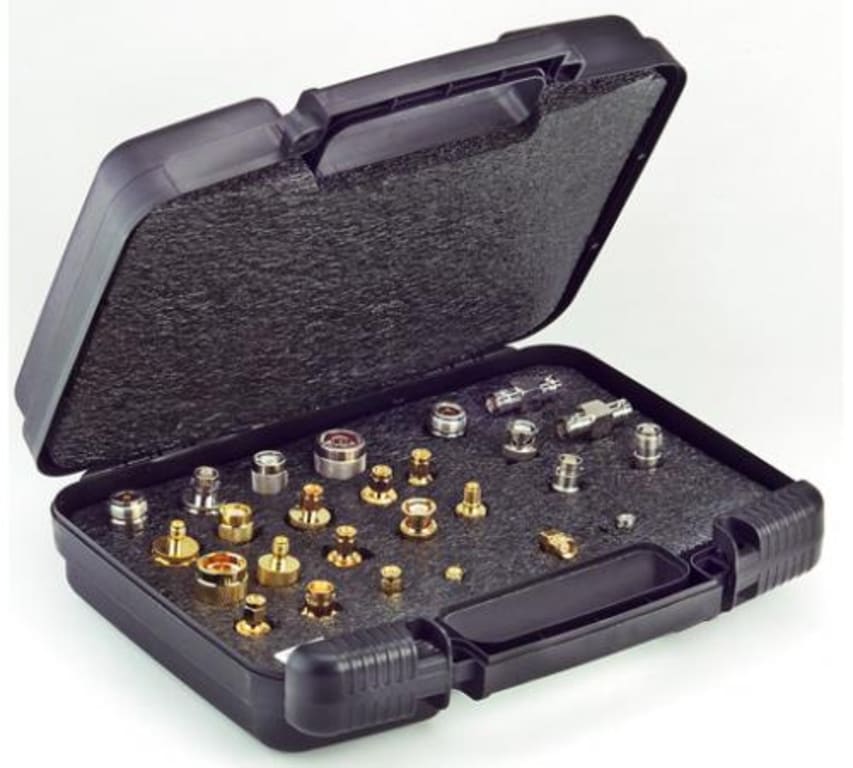

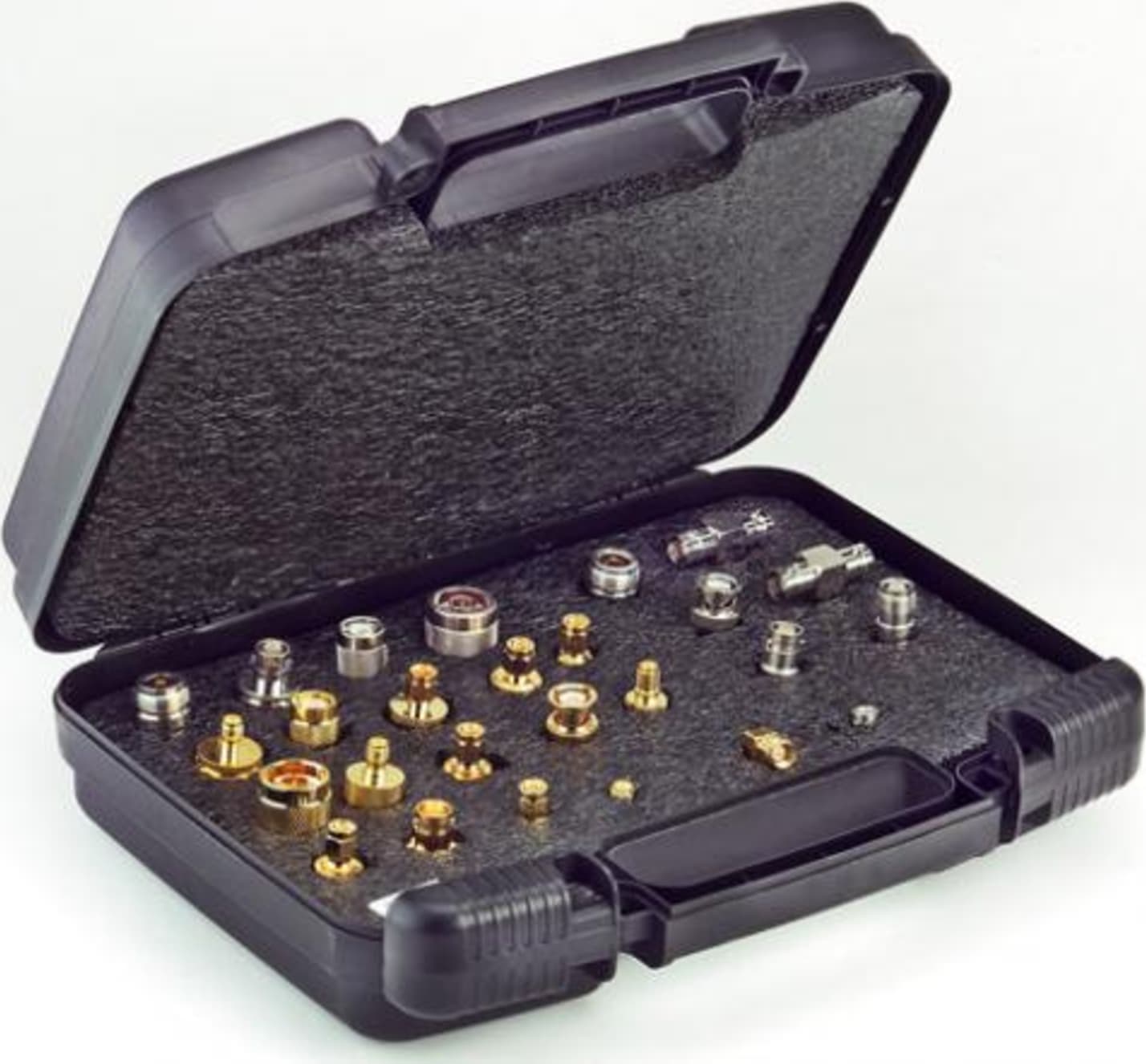

Multi-RF Direct Adapter Kit

All 26 adapters in kit are direct. No intermediate couplers
Reduced signal loss in adapters due to absence of couplers.
Kit includes the most frequently used adapters including BNC / BNC, N / N, SMA / SMA, BNC / N, SMA / BNC, SMA / N, SMA / TNC
Rugged, lockable, pistol-grip case
All parts precision machined brass with tarnish resistant gold or nickel plating.
Male center pins are gold plated brass.
Female contacts are gold plated heat treated beryllium copper.
Insulation material is high density PTFE.

View Product Details

List Price: $613.99

Your Price: $565.51

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 72934

All 26 adapters in the kit are direct. No intermediate couplers
Reduced signal loss in adapters due to the absence of couplers.
Kit includes the most frequently used adapters, including BNC / BNC, N / N, SMA / SMA, BNC / N, SMA / BNC, SMA / N, SMA / TNC
Rugged, lockable, pistol-grip case
All parts are precision machined brass with tarnish-resistant gold or nickel plating.

Multi-RF Direct Adapter Kit

Pomona 72934 is a Multi-RF Direct Adapter Kit.

Pomona Part#	Description	Nominal Impediance	Frequency Range	VSWR	Operating Temperature
3288	BNC female /TYPE N male	50 Ohms	DC to 4 GHz	1.35 to 4 GHz	-65 to +165°C
4297	SMA female/ TYPE N male	50 Ohms	DC to 11 GHz	1.35 to 11 GHz	-65 to +165°C
4296	SMA male /TYPE N male	50 Ohms	0 to 12.4GHz	1.35 to 11GHz	-65 to +165°C
4298	SMA male /TYPE N female	50 Ohms	DC to 11 GHz	1.35 to 11 GHz	-65 to +165°C
4299	SMA female /TYPE N female	50 Ohms	DC to 11 GHz	1.35 to 11 GHz	-65 to +165°C
4293	SMA female /TNC male	50 Ohms	0 to 12.4 GHz	1.35 to 11GHz	-65 to +165°C
4291	SMA female /BNC female	50 Ohms	0 to 12.4 GHz	1.35 to 11GHz	-65 to +165°C
4288	SMA male BNC male	50 OHMS	0 to 12.4 GHz	1.35 to 11GHz	-65 to +165°C
4294	SMA male /TNC female	50 Ohms	0 to 12.4 GHz	1.35 to 11GHz	-65 to +165°C
4295	SMA female /TNC female	50 Ohms	0 to 12.4 GHz	1.35 to 11GHz	-65 to +165°C
4290	SMA male /BNC female	50 Ohms	0 to 12.4 GHz	1.35 to 11GHz	-65 to +165°C
4282	SMA male/female RIGHT ANGLE	50 Ohms	0 to 12.4 GHz	1.35 to 11GHz	-65 to +165°C
4283	SMA male/male	50 Ohms	0 to 11 GHz	1.35 to 11GHz	-65 to +165°C
3535	BNC male/TYPE N female	50 Ohms	DC to 4 GHz	1.35 to 4 GHz	-65 to +165°C
3841	TYPE N female/female	50 Ohms	DC to 11 GHz	1.35 to 11 GHz	-65 to +165°C
3533	BNC male/male	50 Ohms	DC to 4 GHz	1.35 to 4 GHz	-65 to +165°C
3842	Adapter TYPE N male / male	50 Ohms	DC to 11GHz	1.35 to 11GHz	-65 to +165°C
4292	SMA male / TNC male	50 Ohms	0 to 12.4 GHz	1.35 to 11GHz	-65 to +165°C
3844	TNC male BNC female	50 Ohms	DC to 4 GHz	1.35 to 4 GHz	-65 to +165°C
3285	BNC female male female	50 Ohms	DC to 4 GHz	1.35 to 4 GHz	-65 to +165°C
4940	TNC female female	50 Ohms	DC to 4 GHz	1.35 to 4 GHz	-65 to +165°C
3284	BNC female female female TEE	50 Ohms	DC to 4 GHz	1.35 to 4 GHz	-65 to +165°C
3283	BNC female female	50 Ohms	DC to 4 GHz	1.35 to 4 GHz	-65 to +165°C
4284	SMA female female	50 Ohms	0 to 12.4 GHz	1.35 to 11.0 GHz	-65 to +165°C
4286	SMA male Termination	50 Ohms	DC to 18 GHz	1.25 Max at 18 GHz	-65 to +165°C
4289	SMA female BNC male	50 Ohms	0 to 12.4 GHz	1.35 to 11GHz	-65 to +165°C
