• Designed for easy attachment to SMD chips with pitches down to 0.032” (0.80 mm)
• Insulated shaft can be bent up to 36 degrees for versatile attachment in awkward locations or close proximity to other clips.
• Rotating jaws increase versatility in connection and stacking.
• Thin (3mm) profile allows close placement to adjacent clips.
• Compatible with leads with Ø0.8 mm female connectors.

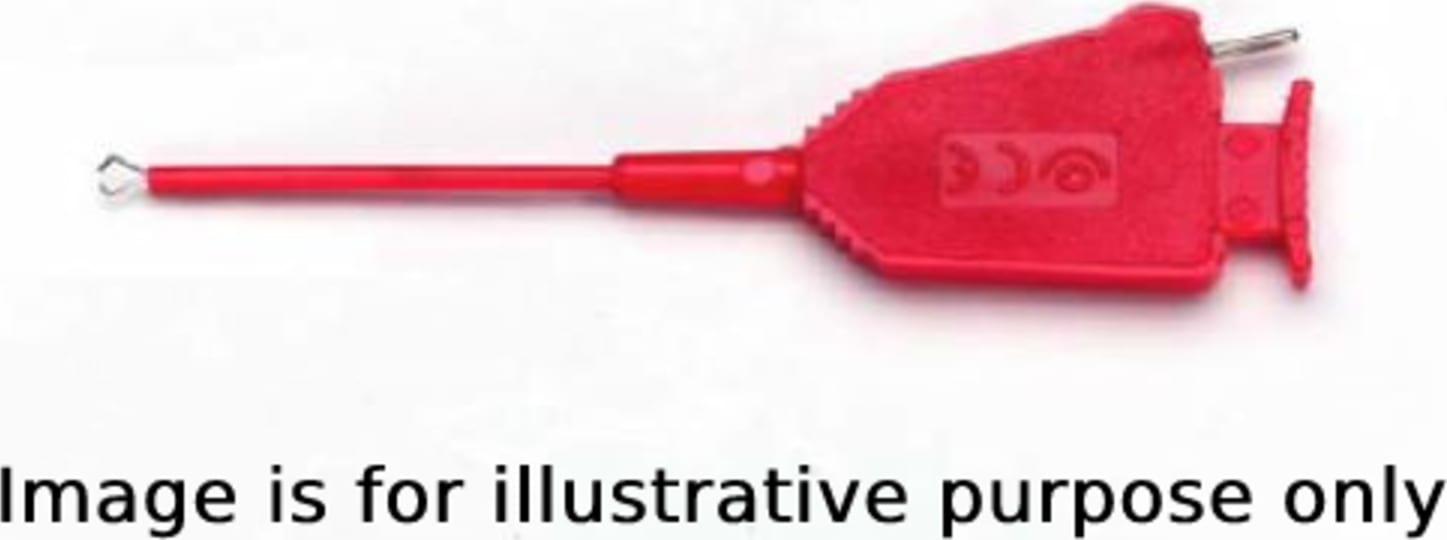

Pomona 72906-0 is a Mini SMD Grabber® Test Clip. Color - Black.

Materials

• Insulation: Polyamide
• Jaws: Steel

Rating

• Hands-free testing in a controlled environment: 70Vrms max
• For CE compliance: Not intended for handheld use at voltages above 33Vrms/70Vdc
