• Use with PQFP, SOIC, TSOP & SSOP packages with 0.3 to 1.25 mm lead pitch
• 13mm long tip allows measurement at IC leads that are not easily accessible.
• Maximum frequency is 100 MHz.
• Connects to Pomona Oscilloscope Tip Adapters, .025” square pin patch cords, and logic analyzer pod leads.
• Conductor resistance is 2 milliohm max.

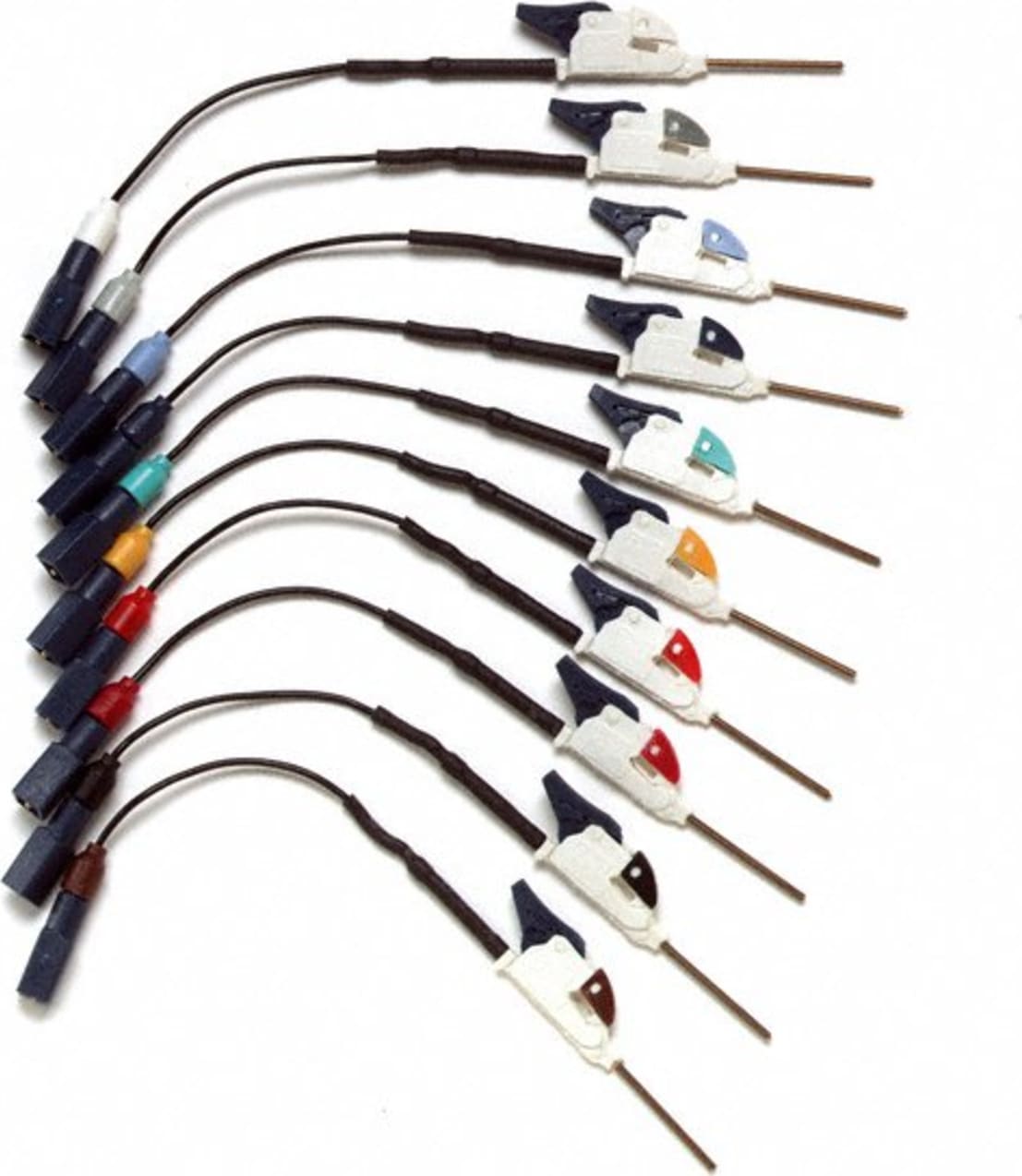

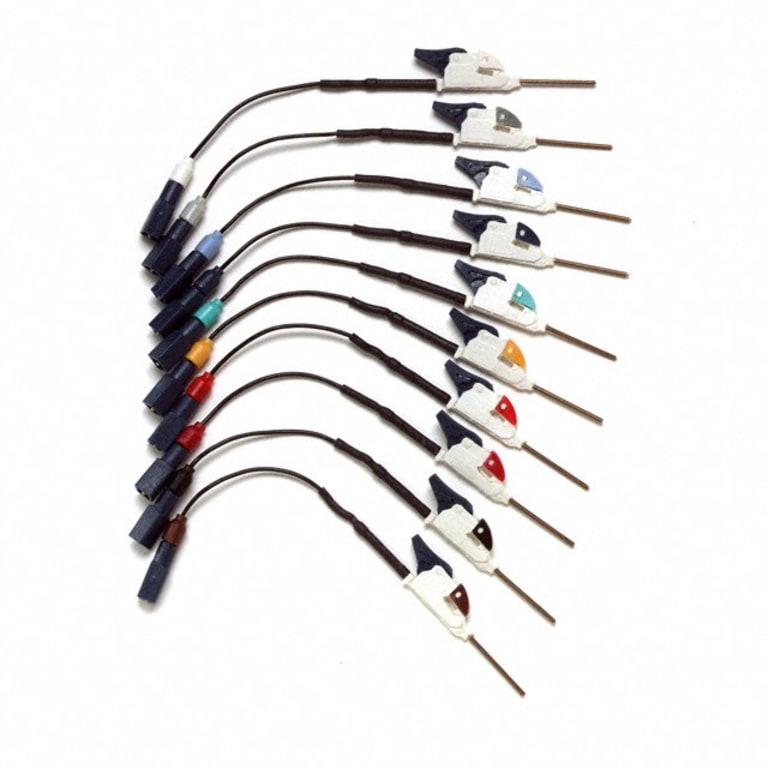

Pomona 6442 is a Micro SMD Grabber® Test Clip With Short Tip (13mm). The kit contains ten test clips and ten flying leads.
