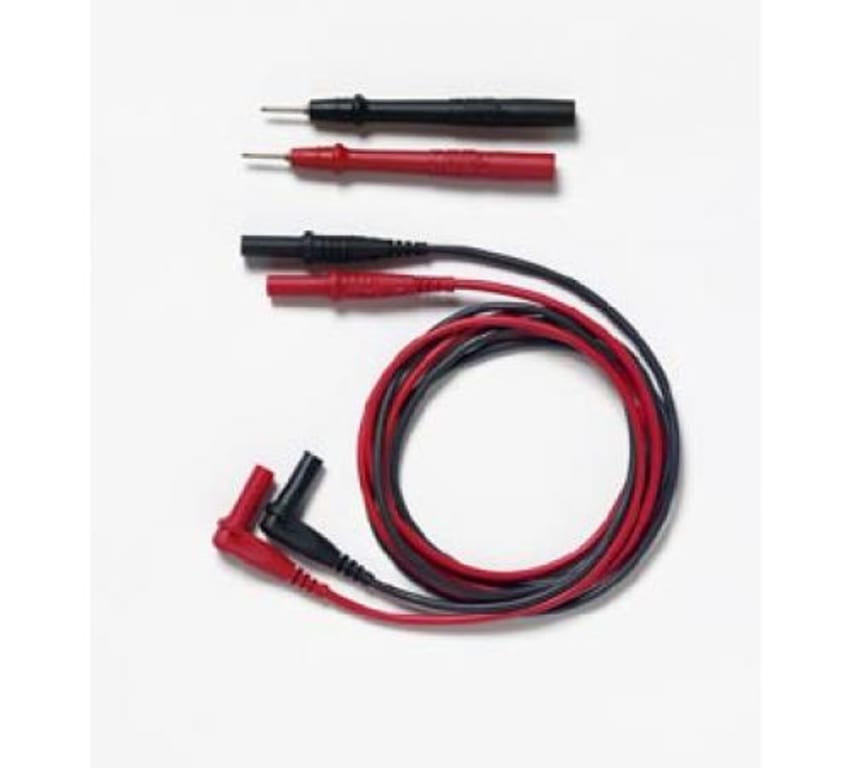

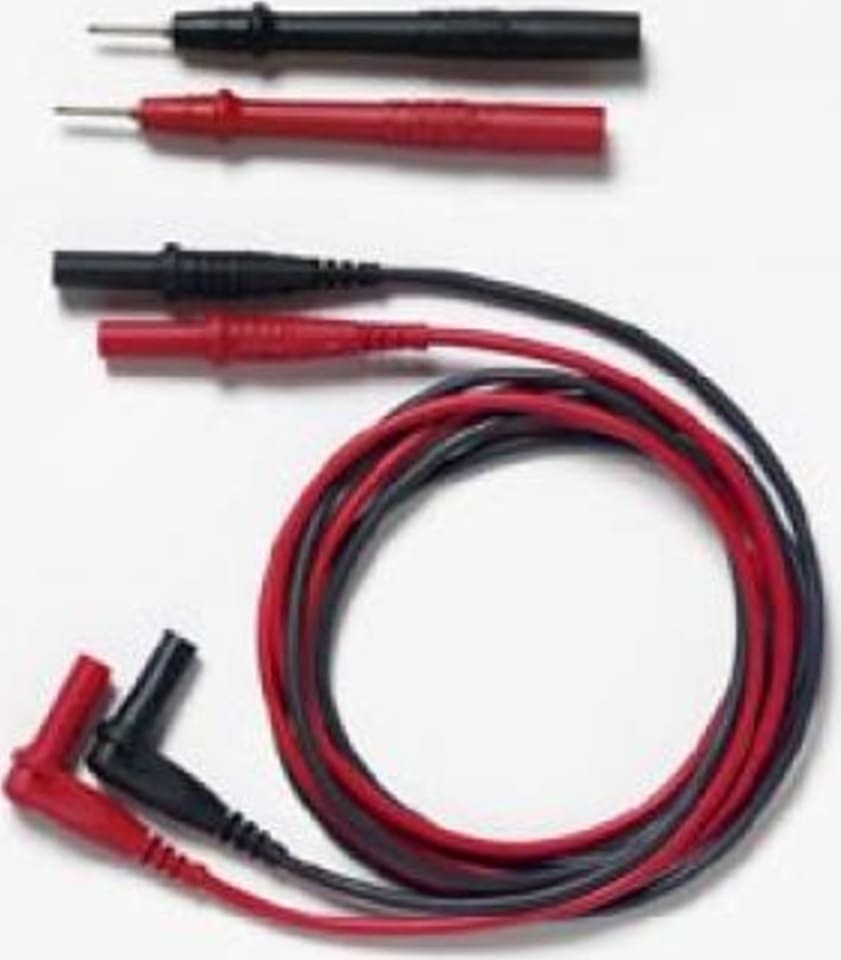

Pomona 6286 - Standard Tip Probe Set with Right-Angle Test Leads

Name: Pomona 6286 - Standard Tip Probe Set with Right-Angle Test Leads
Brand: Pomona
SKU: Pomona6286
Price: 40.84 USD
Availability: InStock

0 reviews | UPC: 095969157919 | Model: Pomona 6286

Compare

MODULAR PROBE DMM TEST KIT

Designed to meet IEC 61010-031, the latest international safety standard for test accessories.
Probe safety jack mates to Pomona’s 5907A, 5908A and 5909A Flexible Test Leads.
Notched probe tip mates into standard 0.080” pin jacks.
Flexible test lead sets are a perfect interface for the most popular multimeters configured with 4 mm sheathed safety jacks, including Fluke, H-P, Tektronix and Wavetek.
Plug and housing are molded directly to the cable in an integral one piece design and the wire is double crimped for a long lasting connection.
Wear indication with double insulated (dual extruded) silicone leads shows white inner layer for increased safety
Multi-leaf banana spring material is Beryllium Copper, nickel plated for extended insertion cycle life and low contact resistance.
High strand count silicone insulated wire offers excellent flexibility and high temperature resistance.
Test leads can mate to a broad assortment of Pomona probes, alligators, spade lugs, etc.

View Product Details

List Price: $43.99

Your Price: $40.84

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 6286

Designed to meet IEC 61010-031, the latest international safety standard for test accessories.
Probe safety jack mates to Pomona’s 5907A, 5908A, and 5909A Flexible Test Leads.
Notched probe tip mates into standard 0.080” pin jacks.
Plug and housing are molded directly to the cable in an integral one-piece design, and the wire is double-crimped for a long-lasting connection.
High-strand count silicone insulated wire offers excellent flexibility and high-temperature resistance.
