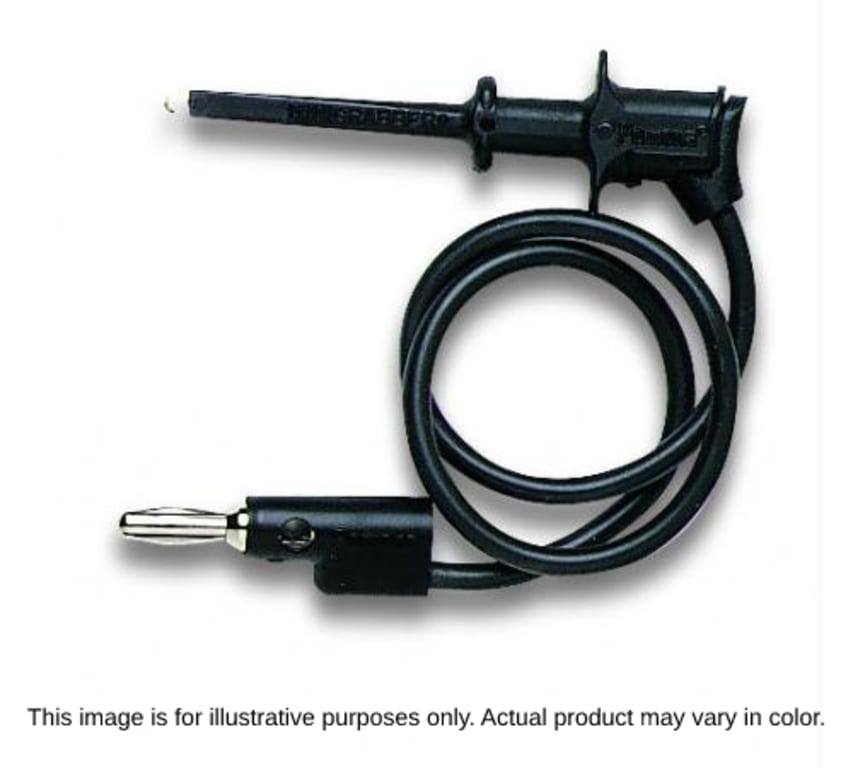

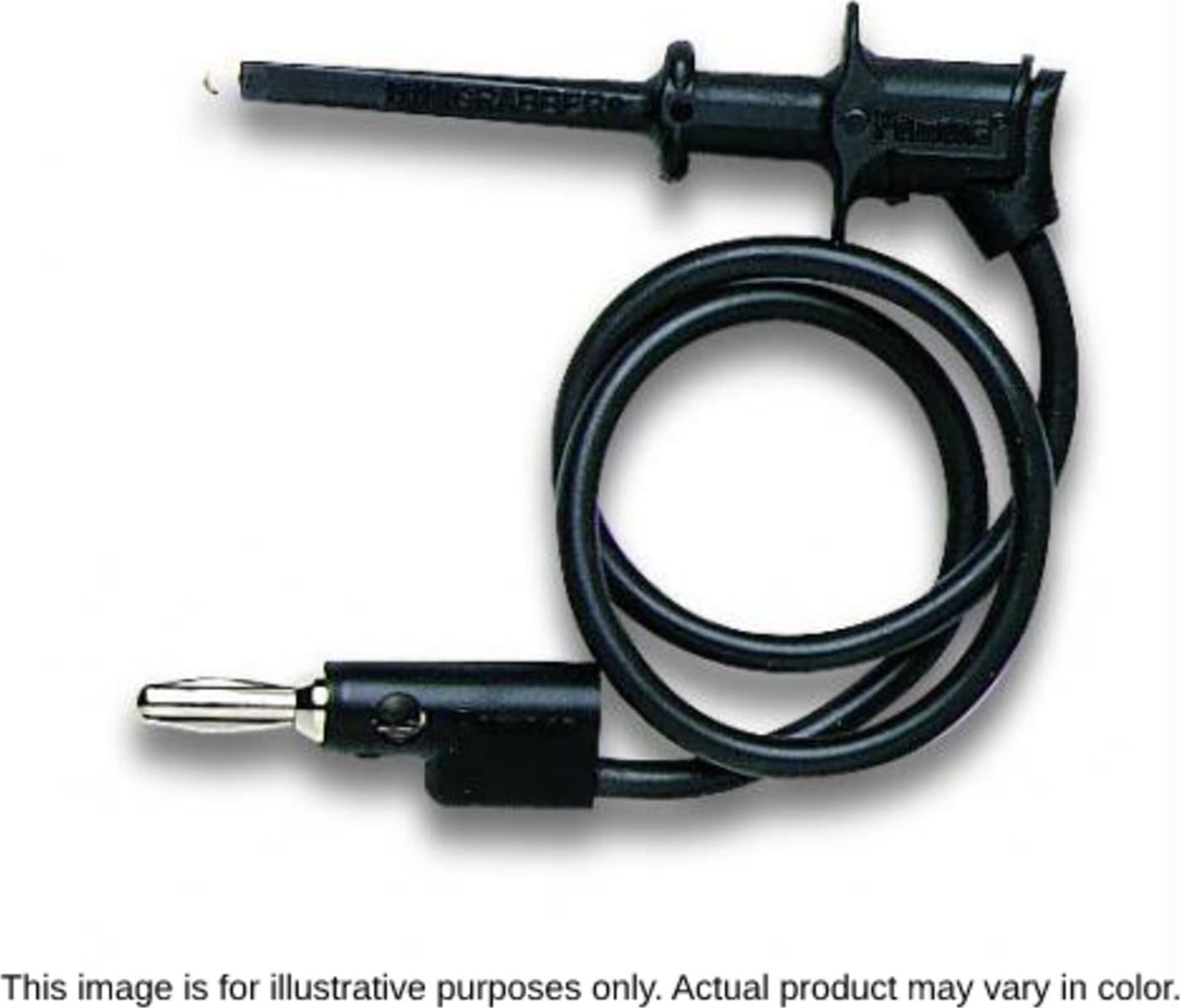

Pomona 6249-36-0 - Minigrabber® Test Clip to Multi-Stacking Banana Plug Test Lead, 36", Black

Name: Pomona 6249-36-0 - Minigrabber® Test Clip to Multi-Stacking Banana Plug Test Lead, 36", Black
Brand: Pomona
SKU: Pomona6249-36-0
Price: 11.64 USD
Availability: InStock

0 reviews | UPC: 095969164467 | Model: Pomona 6249-36-0

Compare

Minigrabber? Test Clip to Multi-Stacking Banana Plug Test Lead, 36", Black

Newly designed Minigrabber® Test Clip Patch Cord offers a high 300 Volt and 5 amp rating.
Grabber width is a slim .36” (9,14 mm) for easier access to test terminals.
Grabber hook is gold plated Beryllium Copper to ensure signal integrity & attaches onto component leads up to .060” (1,5 mm) O.D
Grabber patch cord interfaces directly into the most popular multimeters configured with non-sheathed style banana jacks, including Amprobe, Fluke, H-P, Tektronix and Wavetek.
Plug is molded directly to the cable in an integral one-piece design for a long lasting connection.
Multi-leaf banana spring material is nickel-plated Beryllium Copper for extended insertion life & low contact resistance.
Banana plug features top and side stacking for added test versatility.
High strand count silicone insulated wire offers excellent flexibility and high temperature resistance.
Cable length: 36 inches
Color: Black

View Product Details

List Price: $11.99

Your Price: $11.64

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 6249-36-0

Newly designed Minigrabber® Test Clip Patch Cord offers a high 300 Volt and 5 amp rating.
Grabber width is a slim .36” (9,14 mm) for easier access to test terminals.
Banana plug features top and side stacking for added test versatility.
Cable length: 36 inches
Color: Black

Minigrabber® Test Clip to Multi-Stacking Banana Plug Test Lead, 36", Black

Pomona 6249-36-0 is a Minigrabber® Test Clip to Multi-Stacking Banana Plug Test Lead with a length of 36 inches and is Black in color.

Materials
Grabber	Body: Nylon – Fire Retardant
Hook	Beryllium Copper, Gold Plated, Compression Spring: Music Wire
Wire	18 AWG, 65 x 36 t.c., Insulation – Silicone, .144” (3,66 mm) O.D., Color per P/N.
Banana Plug	Body - Brass, Nickel Plated, Spring – Beryllium Copper, Nickel Plated
Insulation	Polypropylene, Color per part number
Ratings	IEC 1010 2-031
Operating Voltage
Handheld Testing	30 VAC / 60 VDC Max.
Hands Free Testing in Controlled Voltage environments	300 WVDC Max.
Current	5 Amperes Max.

Tech Specs

Test Equipment General Attributes
Safety Approval	CE
Product Length	36 IN
Shipping Weight	0.06 LBS
Country of Origin	United States
Shipping Height	0.30 IN
Shipping Length	5.25 IN
Shipping Width	4.75 IN
