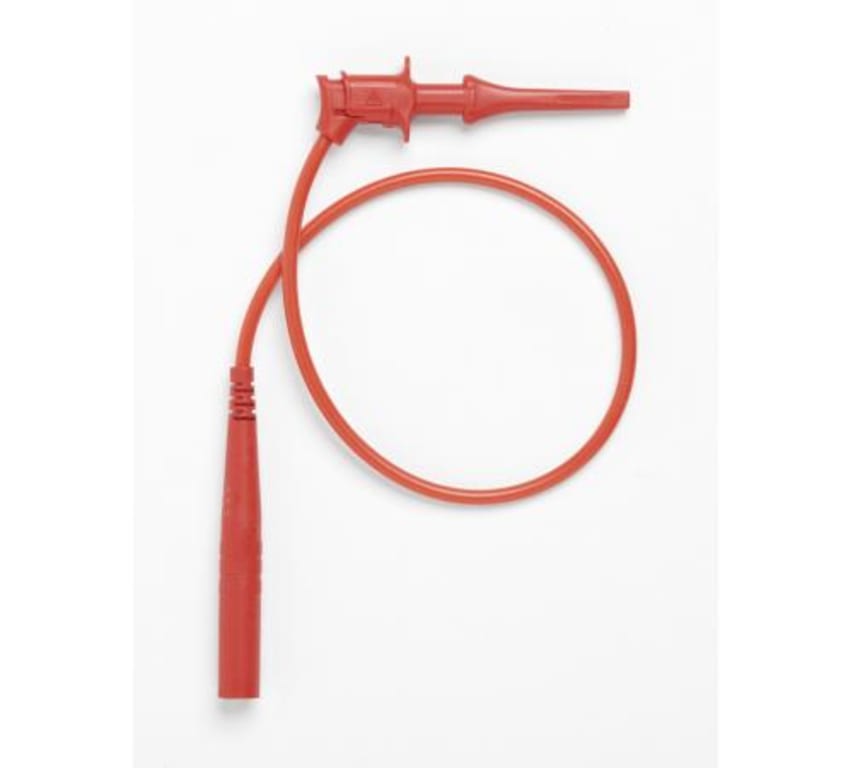

Pomona 6248-12-2 - Minigrabber® Test Clip to Sheathed Banana Jack, 12", Red

Name: Pomona 6248-12-2 - Minigrabber® Test Clip to Sheathed Banana Jack, 12", Red
Brand: Pomona
SKU: Pomona6248-12-2
Price: 14.84 USD
Availability: InStock

0 reviews | UPC: 095969164412 | Model: Pomona 6248-12-2

Compare

MINI GBR/BAN JACK (RED)

Newly designed Minigrabber® Test Clip Patch Cord complies with IEC 61010-2-31, which is the latest international safety standard for test accessories.
Grabber width is a slim .36” (9,14 mm) for easier access to test terminals.
Grabber hook is gold plated beryllium copper to ensure signal integrity & attaches onto component leads up to .060” (1,5 mm) O.D.
Grabber patch cord can connect directly to Pomona’s sheathed type flexible tests leads for added patch cord length.
Banana jack is molded directly to the cable for a long lasting connection.
High strand count silicone insulated wire offers excellent flexibility and high temperature resistance.
Cable length - 12 inches
Color - Red

View Product Details

List Price: $15.99

Your Price: $14.84

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 6248-12-2

Newly designed Minigrabber® Test Clip Patch Cord complies with IEC 61010-2-31, which is the latest international safety standard for test accessories.
Grabber width is a slim .36” (9,14 mm) for easier access to test terminals.
Banana jack is molded directly to the cable for a long-lasting connection.
Cable length - 12 inches
Color - Red

Minigrabber® Test Clip to Sheathed Banana Jack, 12", Red

Pomona 6248-12-2 is a Minigrabber® Test Clip to Sheathed Banana Jack. Cable length - 12 inches. Color - Red.

Materials
Grabber	Body: Nylon 6 – Fire Retardant – UL94 V-O Rated, Color per part number
Hook	Beryllium Copper, Gold Plated, Compression Spring: Music Wire
Wire	18 AWG, 65 x 36 Tinned Copper, Insulation – Silicone, .144” (3,66 mm) O.D., Color per Part Number
Banana Jack	Body - Brass, Nickel Plated
Insulation	Nylon 6, Fire Retardant UL94 V-0 Rated, Color per part number
Ratings	IEC 1010 2-031, Category II, P2 Compliant
Voltage	300 VRMS/DC Max.
Current	5 Amperes Max.
