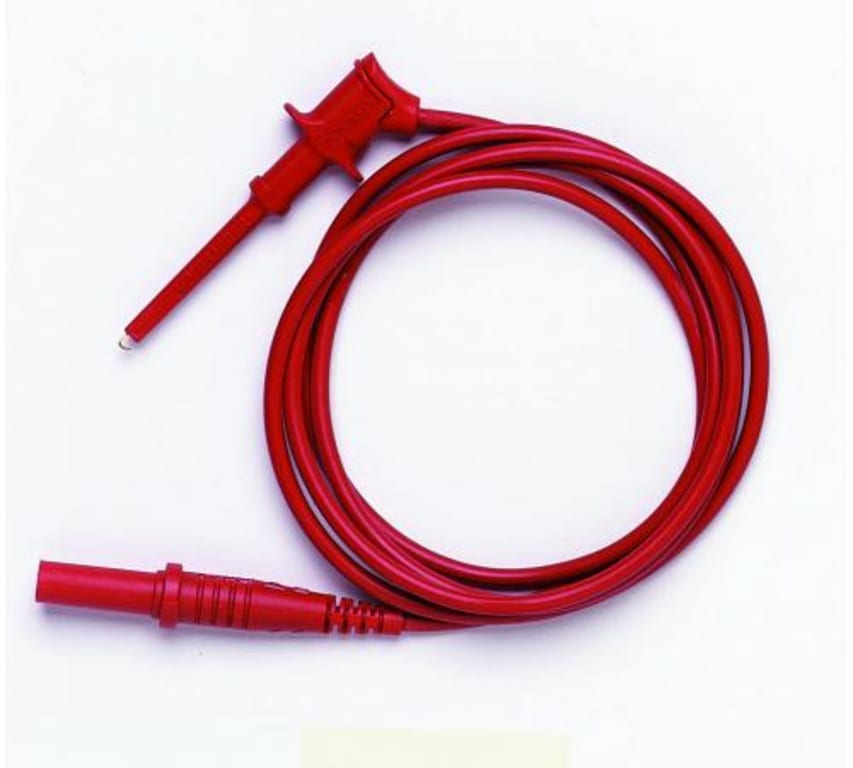

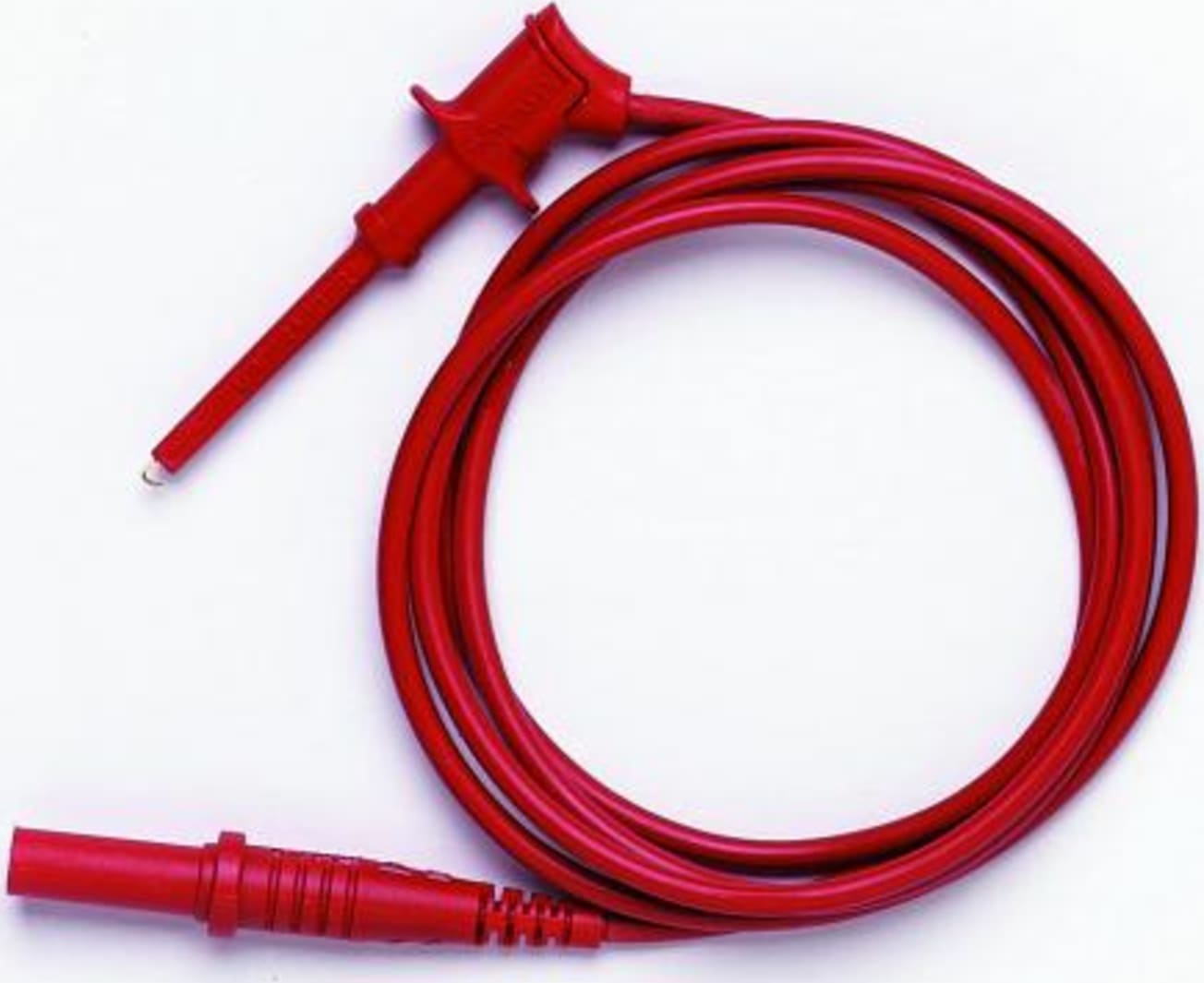

Pomona 6245-48-02 - Minigrabber Test Clip to Straight Sheathed Banana Plug, 48", Set

Name: Pomona 6245-48-02 - Minigrabber Test Clip to Straight Sheathed Banana Plug, 48", Set
Brand: Pomona
SKU: Pomona6245-48-02
Price: 27.84 USD
Availability: InStock

0 reviews | UPC: 095969782517 | Model: Pomona 6245-48-02

Compare

MINIGBR W/ST PLUG (SET)

Newly designed Minigrabber® Test Clip Patch Cord complies with IEC 61010-2-31, which is the latest international safety standard for test accessories.
Grabber width is a slim .36” (9,14 mm) for easier side by side stacking
Grabber hook is gold plated Beryllium Copper to ensure signal integrity
Grabber hook attaches onto component leads up to .060” (1,5 mm) O.D
Grabber patch cord interfaces directly into the most popular multimeters configured with 4 mm sheathed safety jacks including Amprobe, Fluke, H.P., Tektronix and Wavetek
Plug is molded directly to the cable in an integral one-piece design and the wire is double crimped for a long lasting connection.
Multi-leaf banana spring material is nickel plated Beryllium Copper for extended insertion life and low contact resistance.
High strand count silicone insulated wire offers excellent flexibility and high temperature resistance.
Cable length - 48 inches
Note: Price is for 2 Units

View Product Details

List Price: $29.99

Your Price: $27.84

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 6245-48-02

Newly designed Minigrabber® Test Clip Patch Cord complies with IEC 61010-2-31, which is the latest international safety standard for test accessories.
Grabber width is a slim .36” (9,14 mm) for easier side-by-side stacking
Grabber hook is gold-plated Beryllium Copper to ensure signal integrity
Grabber hook attaches to the component leads up to .060” (1,5 mm) O.D
Plug is molded directly to the cable in an integral one-piece design and the wire is double-crimped for a long-lasting connection.

Minigrabber Test Clip to Straight Sheathed Banana Plug, 48", Set

Pomona 6245-48-02 is a Minigrabber Test Clip to Straight Sheathed Banana Plug. Cable length - 48 inches.

Pomona 6245-48-02 Specifications
Materials
Grabber	Body: Polypropylene, Color per Part Number Hook: Beryllium Copper, Gold Plated, compression Spring: Music Wire
Wire	18 AWG, 65 x 36 Tinned Copper, Insulation – Silicone, .144" (3,66 mm) O.D., Color per P/N
Banana Plug	ody – Brass, Nickel Plated, Spring – Beryllium Copper, Nickel Plated Insulation – Polypropylene, Color per P/N
