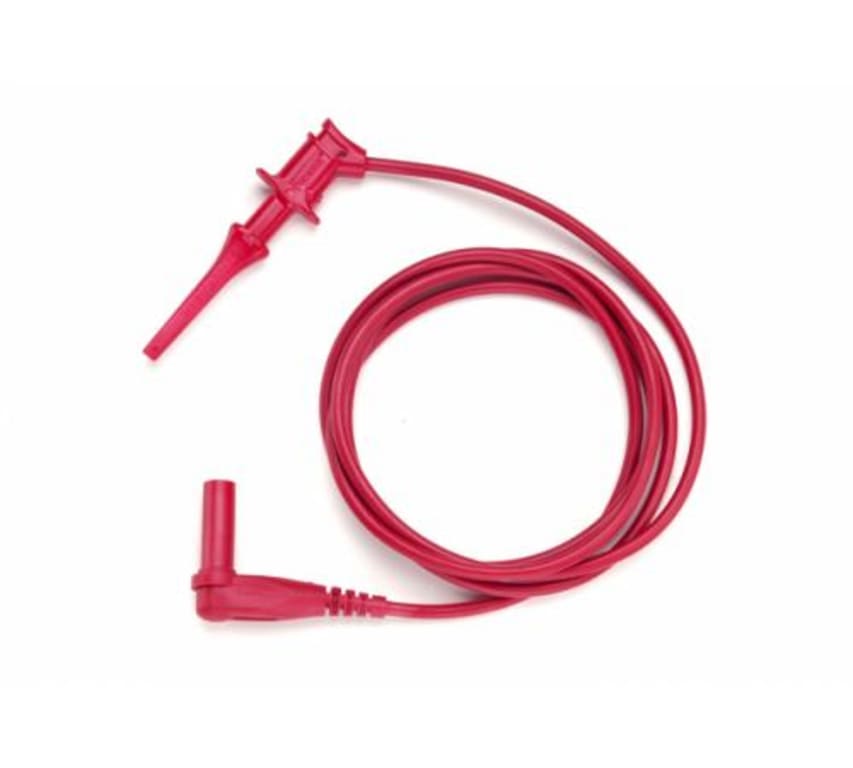

Pomona 6244-48-2 - Minigrabber® Test Clip To Right Angle DMM Plug, 48", Red

Name: Pomona 6244-48-2 - Minigrabber® Test Clip To Right Angle DMM Plug, 48", Red
Brand: Pomona
SKU: Pomona6244-48-2
Price: 14.84 USD
Availability: InStock

0 reviews | UPC: 095969164238 | Model: Pomona 6244-48-2

Compare

MINI-GBR W/RT ANGLE, (RED)

Newly designed Minigrabber® Test Clip Patch Cord complies with IEC 61010-2-31, which is the latest international safety standard for test accessories.
Grabber width is a slim .36” (9,14 mm) for easier side by side stacking.
Grabber hook is gold plated beryllium copper to ensure signal integrity & attaches onto component leads up to .060” (1,5 mm) O.D.
Grabber patch cord interfaces directly into the most popular multimeters configured with 4 mm sheathed safety jacks, including Amprobe, Fluke, H-P, Tektronix and Wavetek.
Plug is molded directly to the cable in an integral one-piece design and the wire is double crimped for a long lasting connection.
Multi-leaf banana spring material is nickel plated beryllium copper for extended insertion life & low contact resistance.
High strand count silicone insulated wire offers excellent flexibility and high temperature resistance.
Cable length: 48 inches
Color: Red

View Product Details

List Price: $15.99

Your Price: $14.84

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Items in This Series



Product	Pomona 6244-48-2 MINI-GBR W/RT ANGLE, (RED)	Pomona 6244-48-0 MINI-GBR W/RT ANGLE, (BLACK)
Price
In Stock
Compare	Add to compare	Add to compare

Recommended for you

Pomona 6244-48-2

Newly designed Minigrabber® Test Clip Patch Cord complies with IEC 61010-2-31, which is the latest international safety standard for test accessories.
Grabber width is a slim .36” (9,14 mm) for easier side-by-side stacking.
Grabber hook is gold-plated beryllium copper to ensure signal integrity & attaches onto the component leads up to .060” (1,5 mm) O.D.
High-strand count silicone insulated wire offers excellent flexibility and high-temperature resistance.
Color: Red

Minigrabber® Test Clip To Right Angle DMM Plug, 48", Red

Pomona 6244-48-2 is a Minigrabber® Test Clip To Right Angle DMM Plug. Cable length - 48". Color - Red.

Materials
Grabber	Body: Nylon 6 – Fire Retardant – UL94 V-O Rated, Color per part number
Hook	Beryllium Copper, Gold Plated, Compression Spring: Music Wire
Wire	18 AWG, 65 x 36 Tinned Copper, Insulation – Silicone, .144” (3,66 mm) O.D., Color per P/N
Banana Plug	Body - Brass, Nickel Plated, Spring – Beryllium Copper, Nickel Plated
Insulation	Polypropylene, Fire Retardant UL94 V-2 Rated, Color per part number
Ratings	IEC 1010-2-031, Category II, P2 Compliant
Operating Voltage	300 VRMS/DC Max.
Current	5 Amperes Max.
