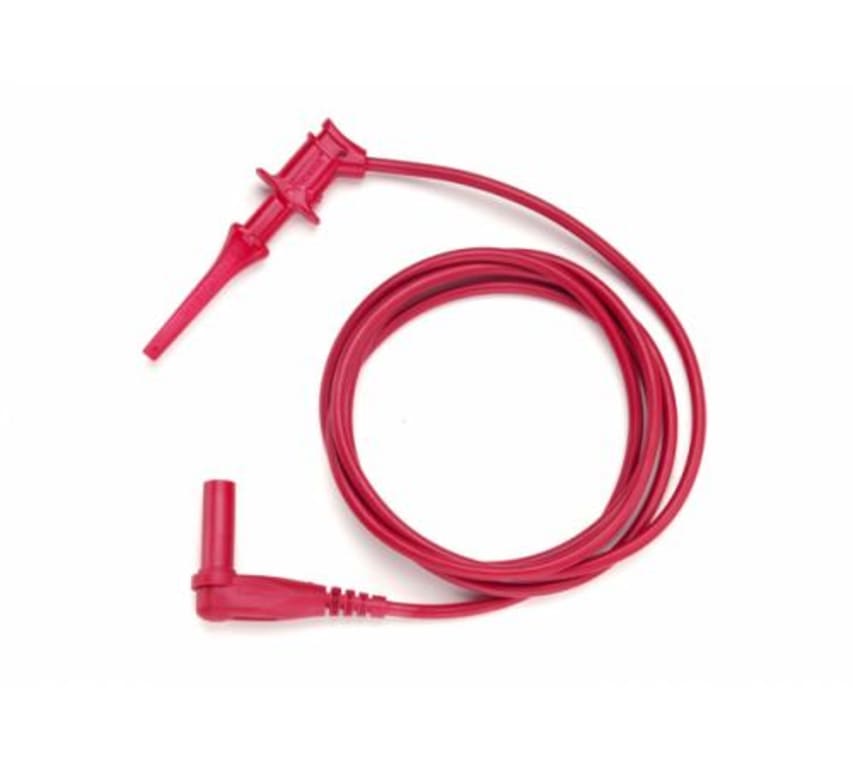

Pomona 6244-48-02 - Minigrabber® Test Clip To Right Angle DMM Plug, Set

Name: Pomona 6244-48-02 - Minigrabber® Test Clip To Right Angle DMM Plug, Set
Brand: Pomona
SKU: Pomona6244-48-02
Price: 56.32 USD
Availability: InStock

0 reviews | UPC: 095969782500 | Model: Pomona 6244-48-02

Compare

MINI-GBR W/RT ANGLE (SET)-Note:Price is for 2 Units

Newly designed Minigrabber® Test Clip Patch Cord complies with IEC 61010-2-31, which is the latest international safety standard for test accessories
Grabber width is a slim .36” (9,14 mm) for easier side by side stacking
Grabber hook is gold plated beryllium copper to ensure signal integrity & attaches onto component leads up to .060” (1,5 mm) O.D.
Grabber patch cord interfaces directly into the most popular multimeters configured with 4 mm sheathed safety jacks, including Amprobe, Fluke, H-P, Tektronix and Wavetek.
Plug is molded directly to the cable in an integral one-piece design and the wire is double crimped for a long lasting connection
Multi-leaf banana spring material is nickel plated beryllium copper for extended insertion life & low contact resistance
High strand count silicone insulated wire offers excellent flexibility and high temperature resistance
With Right Angle
Note: Price is for 2 Units

View Product Details

List Price: $57.98

Your Price: $56.32

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 6244-48-02

Newly designed Minigrabber® Test Clip Patch Cord complies with IEC 61010-2-31, which is the latest international safety standard for test accessories.
Grabber width is a slim .36” (9,14 mm) for easier side-by-side stacking
Grabber hook is gold-plated beryllium copper to ensure signal integrity & attaches onto the component leads up to .060” (1,5 mm) O.D.
Grabber patch cord interfaces directly into the most popular multimeters configured with 4 mm sheathed safety jacks, including Amprobe, Fluke, H-P, Tektronix, and Wavetek.
Plug is molded directly to the cable in an integral one-piece design, and the wire is double-crimped for a long-lasting connection.

Minigrabber® Test Clip To Right Angle DMM Plug, Set

Pomona 6244-48-02 is a set of 2 Minigrabber® Test Clip To Right Angle DMM Plugs.

Pomona 6244-48-02 Specifications
Materials
Grabber	Body: Polypropylene, Color per Part Number Hook: Beryllium Copper, Gold Plated, compression Spring: Music Wire
Wire	18 AWG, 65 x 36 Tinned Copper, Insulation – Silicone, .144" (3,66 mm) O.D., Color per P/N
Banana Plug	ody – Brass, Nickel Plated, Spring – Beryllium Copper, Nickel Plated Insulation – Polypropylene, Color per P/N
