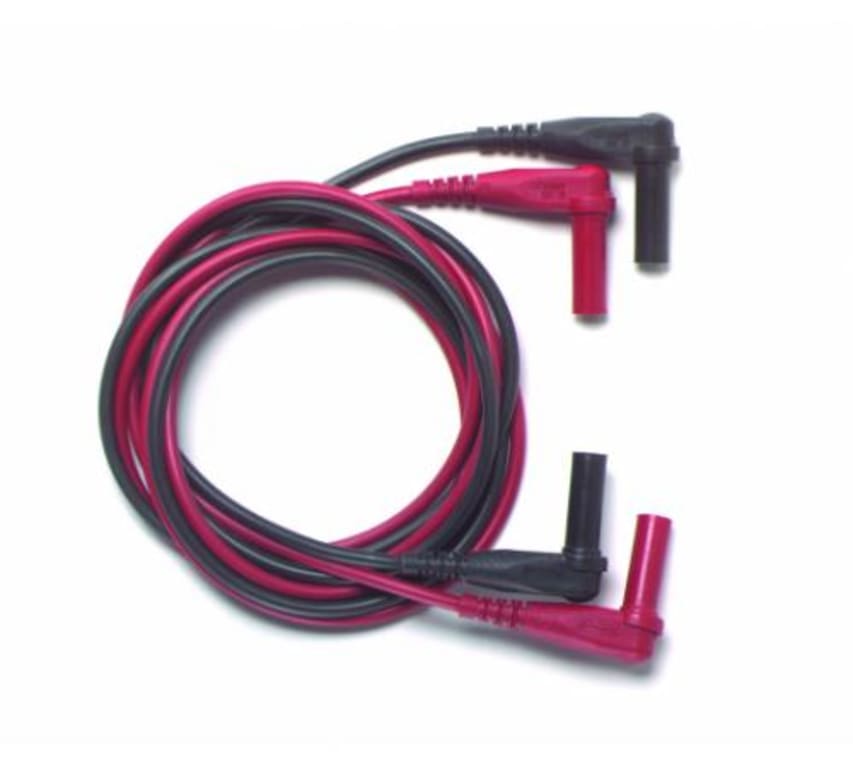

Pomona 5909A - DMM Test Lead Set With Right Angle Plugs For Hand-Held Meters

Name: Pomona 5909A - DMM Test Lead Set With Right Angle Plugs For Hand-Held Meters
Brand: Pomona
SKU: Pomona5909A
Price: 24.13 USD
Availability: InStock

0 reviews | UPC: 095969162487 | Model: Pomona 5909A

Compare

FLEXIBLE TEST LEADS, RT ANGLE

Flexible test lead sets are a perfect interface for multimeters configured with 4 mm sheathed safety jacks.
Test leads comply with IEC 1010-2-031
Plug and housing are molded directly to the cable in an integral one piece design and the wire is double crimped for a long lasting connection.
Multi-leaf banana spring is beryllium copper, nickel plated for extended insertion cycle life and low contact resistance.
High strand count silicone insulated wire offers excellent flexibility and high temperature resistance.
Test leads can mate to a broad assortment of Pomona test probes, alligators, spade lugs, etc.

View Product Details

List Price: $25.99

Your Price: $24.13

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 5909A

Flexible test lead sets are a perfect interface for multimeters configured with 4 mm sheathed safety jacks.
Test leads comply with IEC 1010-2-031
Plug and housing are molded directly to the cable in an integral one-piece design, and the wire is double-crimped for a long-lasting connection.
Multi-leaf banana spring is beryllium copper, nickel plated for extended insertion cycle life and low contact resistance.
High-strand count silicone insulated wire offers excellent flexibility and high-temperature resistance.

DMM Test Lead Set With Right Angle Plugs For Hand-Held Meters

Pomona 5909A is a DMM Test Lead Set With Right Angle Plugs For Hand-Held Meters.

Materials
Plug	Brass, Nickel plated
Spring	Beryllium Copper, Nickel plated
Insulator	Polypropylene
Wire	18 AWG
Insulation	Silicone, O.D. 0.144” Nom.
Ratings	IEC 1010 2-031, Category III, P2 Compliant
Operating Temperature	80°C (176°F) Max.
Operating Voltage	1,000 VRMS/DC Max.
Current	10 Amperes Max.
