Pomona 5898 - Replacement DMM Test Lead Set With SS Tip

Name: Pomona 5898 - Replacement DMM Test Lead Set With SS Tip
Brand: Pomona
SKU: Pomona5898
Price: 25.99 USD
Availability: InStock
Rating: 5.00 (2 reviews)

5 (2 Reviews) | UPC: 095969162326 | Model: Pomona 5898

Compare

EXTRA DURABLE PROBE LEAD SET

Designed for Fluke, Amprobe, H-P, Tektronix and Wavetek DMM’s with 4mm sheathed banana plugs.
Probe body incorporates a two-step mold process. First step is Polypropylene for probe rigidity. Second step is Santoprene® rubber for handling comfort, added insulation protection and wire strain relief.
Probe body and banana plug are molded directly to the wire for robust pull strength.
Wire is a high strand count silicone wire for extreme flexibility and high temperature resistance.
Wear indication with dual extruded silicone leads shows white inner layer for increased safety.
Stainless Steel tip features high conductivity for precision measurements.
Banana plug spring is nickel-plated beryllium copper for long insertion life.
Includes a set of one black and one red test lead

View Product Details

List Price: $27.99

Your Price: $25.99

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 5898

Probe test leads are designed with over-voltage spike protection of up to 6kV
Probe body and banana plug are molded directly to the wire for robust pull strength.
Wire is a high-strand count silicone wire for extreme flexibility and high-temperature resistance.
Stainless Steel tip features high conductivity for precision measurements
Banana plug spring is nickel-plated beryllium copper for long insertion life

Replacement DMM Test Lead Set With SS Tip

Pomona 5898 is a DMM test lead set with an SS tip for most meters, Extra Durable Probe Lead Set.

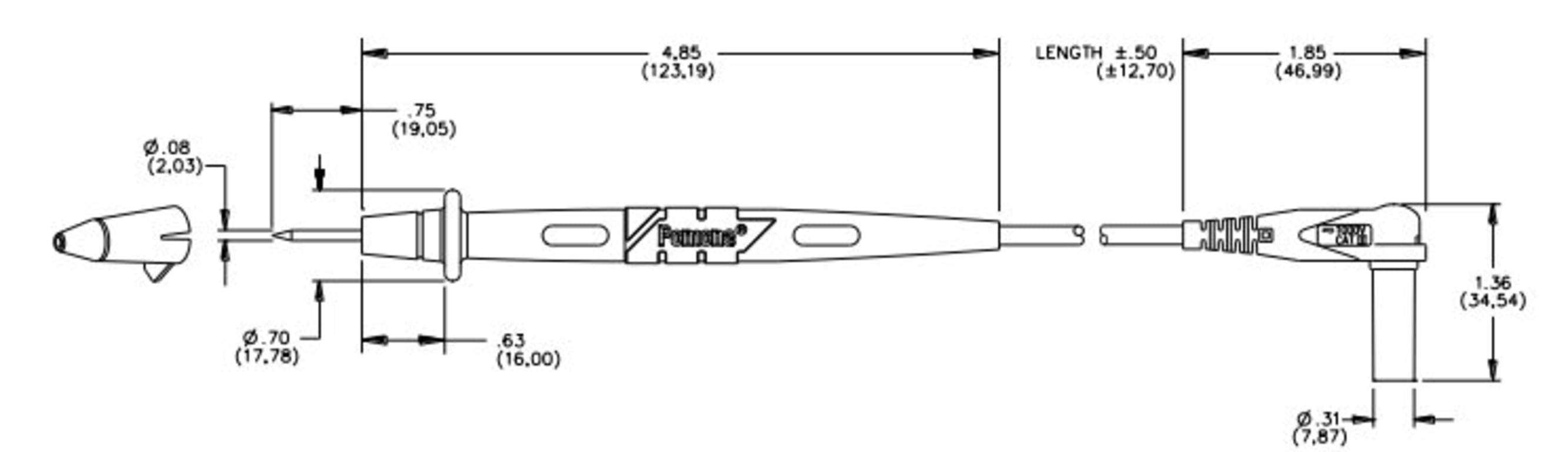

Dimensions:

Materials
Probe Body	Outer Insulation - Santoprene® Rubber, Color: Gray
Inner Insulation	Polypropylene, Fire Retardant, Color: One Black, One Red
Tip	Stainless Steel
Wire	18 AWG, 65 x 36 Tinned Copper St rand, Silicone Insulation, Length: 48” (122cm), O.D. .144” (3,66mm)
Banana Plug	Body – Brass, Nickel Plated
Spring	Beryllium Copper, Nickel Plated
Insulation	Polypropylene UL94 V-2, Color: One Black, One Red
Ratings	IEC 1010-2-031, Category III, P2 Compliant
Operating Voltage	1000V
Current	10 Amperes
