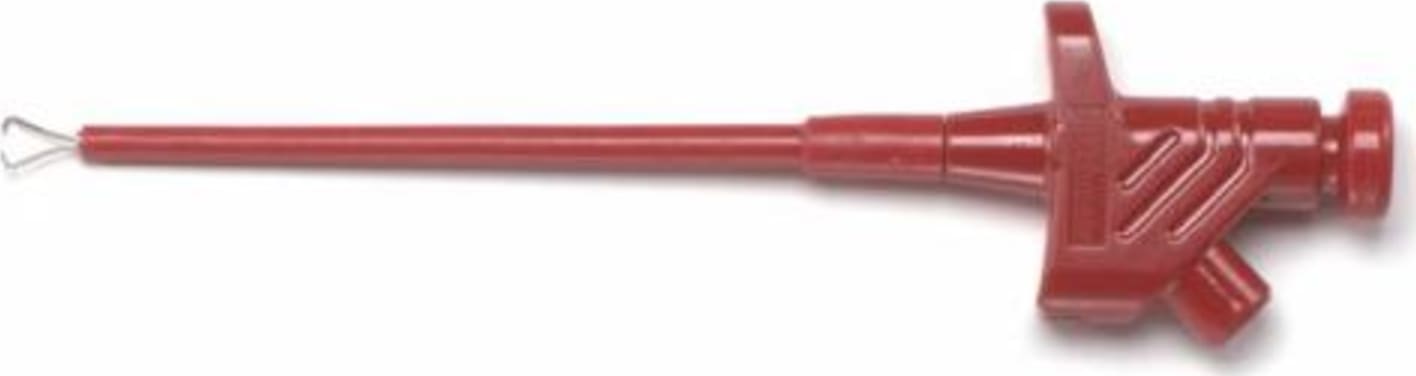

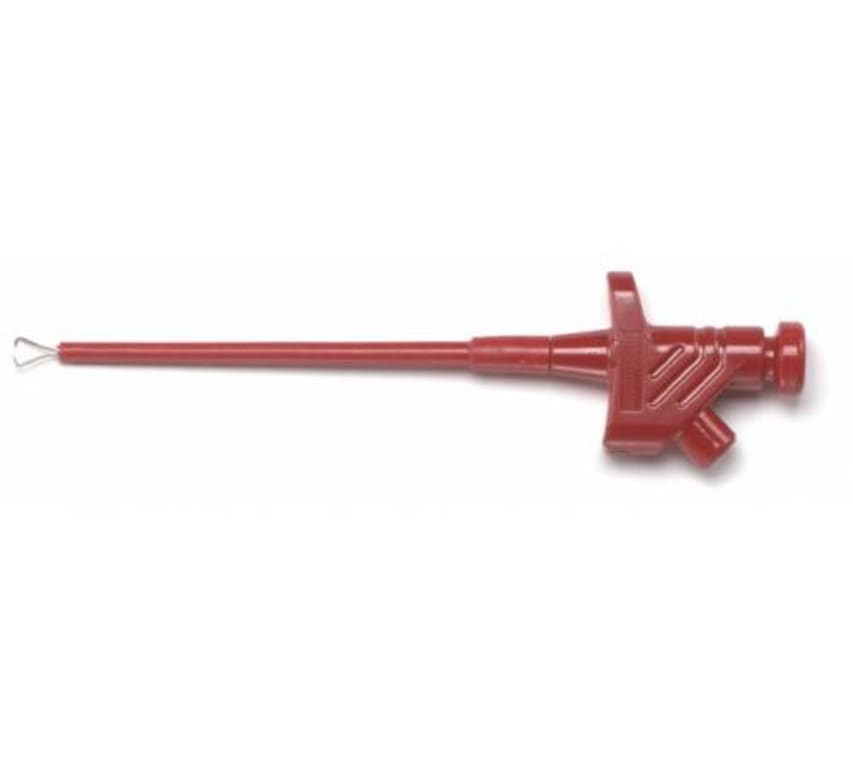

Pomona 5830-2 - Maxigrabber® Test Clip With Banana Jack And Screw For Direct Wire Attachment, Red

Name: Pomona 5830-2 - Maxigrabber® Test Clip With Banana Jack And Screw For Direct Wire Attachment, Red
Brand: Pomona
SKU: Pomona5830-2
Price: 17.47 USD
Availability: InStock

0 reviews | UPC: 095969162234 | Model: Pomona 5830-2

Compare

Maxigrabber? Test Clip With Banana Jack And Screw For Direct Wire Attachment, Red

Mates to Model #1440, 4702 and most standard banana plugs.
Use set screw to build custom cable with Pomona “Do It Yourself” products.
Accepts 18 to 22 AWG wire (for custom cable).
This flexible clip has a rotating pincer type contact to make access easier.
Standard banana jack and screw for direct wire termination.
Color: Red.

View Product Details

List Price: $17.99

Your Price: $17.47

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 5830-2

Mates to Model #1440, 4702, and most standard banana plugs.
Use set screw to build a custom cable with Pomona “Do It Yourself” products.
Accepts 18 to 22 AWG wire (for custom cable).
This flexible clip has a rotating pincer-type contact to make access easier.
Color: Red.

Maxigrabber® Test Clip With Banana Jack And Screw For Direct Wire Attachment, Red

Pomona 5830-2 is a Maxigrabber® Test Clip With Banana Jack And Screw For Direct Wire Attachment. Color - Red.

Materials
Wire	Steel
Insulation	Thermoplastic (handle and knob)
Color	Black (heat shrink tube)
Ratings
Environmental
Operating Temperature	+80°C. (+176°F.) Max.
Electrical
Operating Voltage	300 VRMS/DC
Current	5 Amperes
Mechanical
Grip	Up to .157 (4.0).
