• Upper contacts are .025” sq. pins, spaced at .100”. Pins are perfect for sq. pin receptacles, wire-wrap or jumper leads.
• Gold-plated lower contacts assure reliable, noise-free connections.
• Molded barriers between each contact allow connections to be made on live boards without accidental shorting to adjacent chip leads.

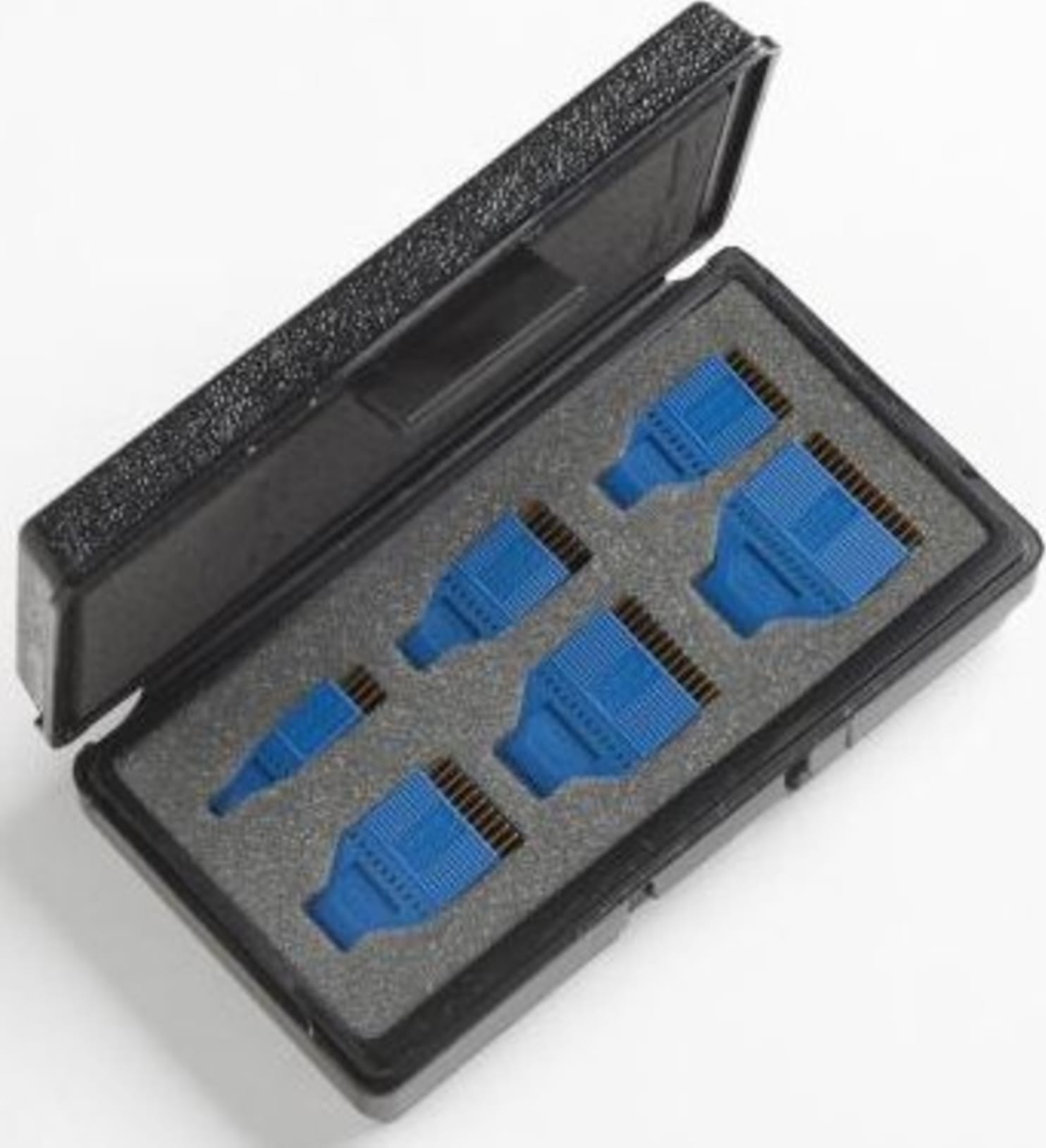

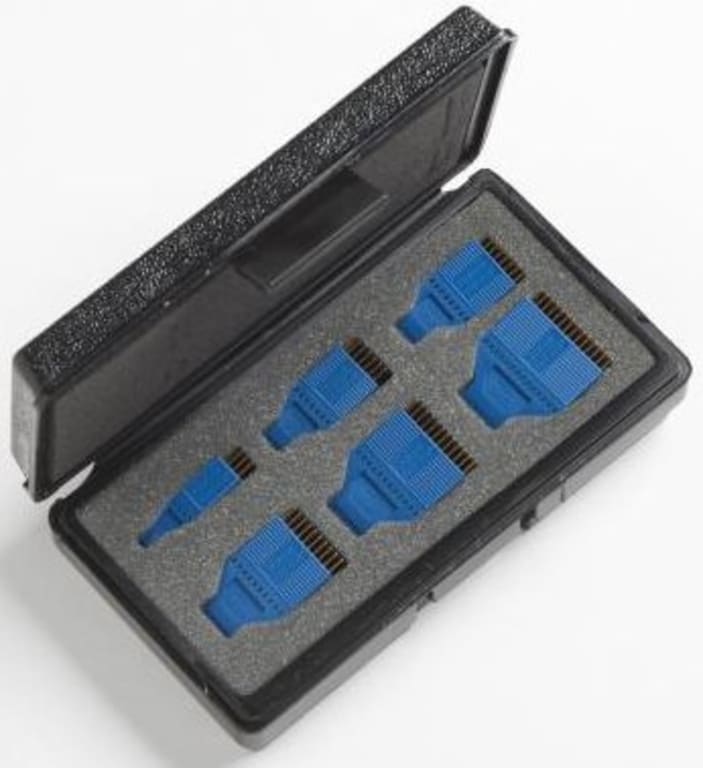

These new test clips are designed especially for in-circuit testing on Small Outline Integrated Circuits (SOIC & SOJ). The SOIC Clip test clip assures a positive connection to all chip leads and provides hands-free testing. Fits surface-mounted SOIC and SOJ chips with gull-wing or “J” leads and body width from .150” to .350” wide.
