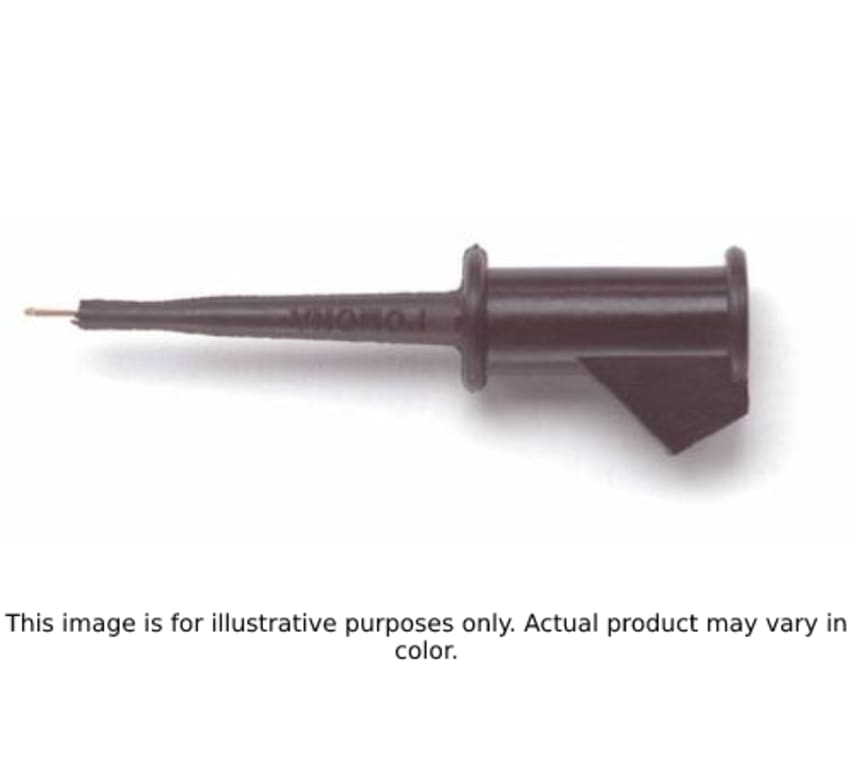

Pomona 5360-2 - SMD Grabber® Test Clip With .025" Square Pin, Red

Name: Pomona 5360-2 - SMD Grabber® Test Clip With .025" Square Pin, Red
Brand: Pomona
SKU: Pomona5360-2
Price: 34.95 USD
Availability: InStock

0 reviews | UPC: 095969167109 | Model: Pomona 5360-2

Compare

SMD GRABBER W/.025 SQ PIN (RED)-Note:Price is for 5 Units

The SMD Grabber Test Clip is especially suited for testing surface-mounted packages on centers as small as 0.635mm (.025in).
Pincer-like contact grasps individual legs of SMDs such as the SOIC, SOJ, PLCC, etc.
Its circular design and small size have been developed for easy use and handling.
Mates with Model #4772 or 4741 square pin receptacles.
Color - Red

View Product Details

Your Price: $34.95

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 5360-2

The SMD Grabber Test Clip is especially suited for testing surface-mounted packages on centers as small as 0.635mm (.025in).
Pincer-like contact grasps individual legs of SMDs such as the SOIC, SOJ, PLCC, etc.
Its circular design and small size have been developed for easy use and handling.
Mates with Model #4772 or 4741 square pin receptacles.
Color - Red

SMD Grabber® Test Clip With .025" Square Pin, Red

Pomona 5360-2 is an SMD Grabber® Test Clip With a .025" Square Pin. Color - Red.

Materials
1st End
Contact	Stainless steel, selectively gold plated.
Insulation	Glass filled Nylon
2nd End	Square pin, phosphor bronze, gold plated.
Ratings
Operating Temperature	+102°C. (+216°F.) Max..
Operating Voltage	30VAC/60VDC
Current	0.5 Amperes
