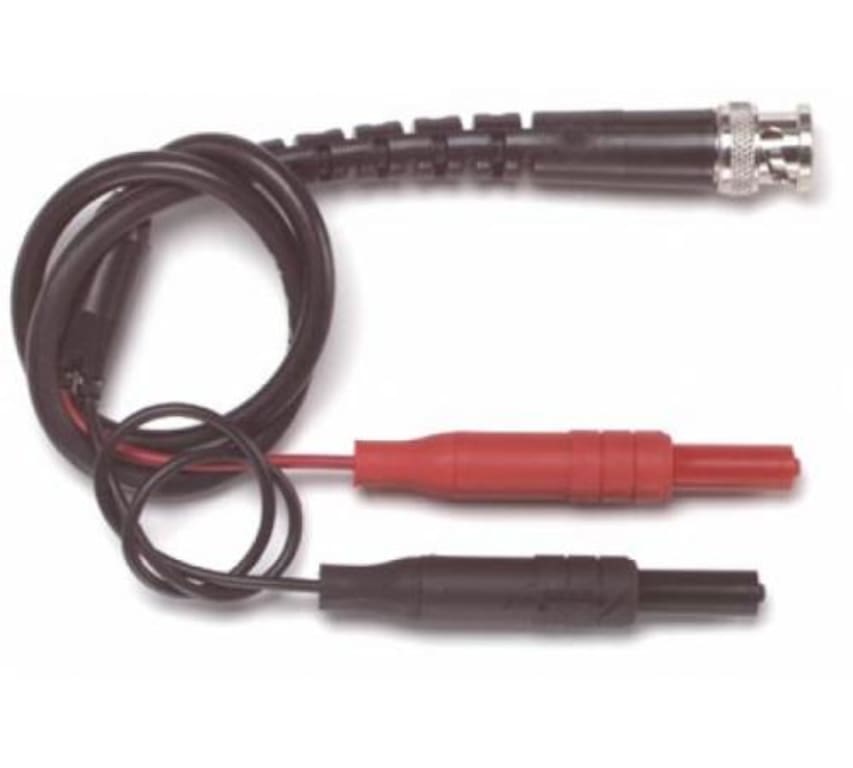

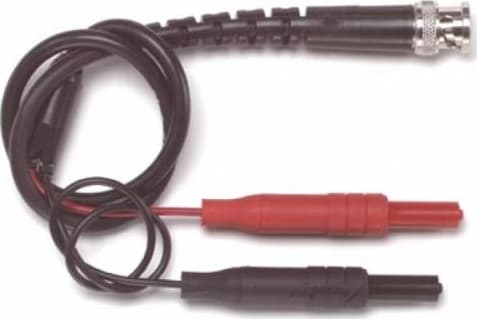

Pomona 5343-C-60 - BNC (M) To Retractable Sheath Banana Plugs, 60"

Name: Pomona 5343-C-60 - BNC (M) To Retractable Sheath Banana Plugs, 60"
Brand: Pomona
SKU: Pomona5343-C-60
Price: 38.84 USD
Availability: InStock

0 reviews | UPC: 095969167055 | Model: Pomona 5343-C-60

Compare

BNC (M)/RETR SHEATH BANANA

Retractable Sheath Banana Plug provided for use with older test equipment.
Cable length - 60 inches

View Product Details

List Price: $39.99

Your Price: $38.84

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Materials
Conn	1st End-Retractable sheath banana plug:
Spring	Beryllium Copper per QQ-C-533, Cond. H.T.Nickel plated per QQ-N-290, Class 2, 200/300 microinches.
Plug Body	Brass Rod, per ASTM B16-85, Temper HO2. Nickel plated per QQ-N-290, Class 2, 200/300 microinches.
Tip	Nylon. Color matches color of wire.
Compression Spring	Stainless Steel 302.
Insulation	Nylon molded to plug body and wire.
Color matches color of wire.
Wire	20 AWG stranding 41 x 36 T.C., PVC insulated, 2.21 (.087) O.D. Color: One Black and one Red.
Molded Breakout	PVC molded to breakout leads and cable. Color: Black
Cable	Shielded coaxial RG58C/U, 4.95 (.195) O.D.
Color	Black. Marking: “POMONA 5343-C-XX”.Conn:
2nd End-BNC Male Connector Body and fittings	Tarnish resistant. Center Contact: Gold plated per requirements of MIL-C-39012.
Strain Relief Boot	PVC molded to BNC plug and cable.
Color	Black
Ratings
Environmental
Operating Temperature	+50°C. (+122°F.) Max.
Operating Voltage
Shield-Earth	30VAC/60VDC,
Inner Conductor-Shield	500 VRMS Max.
Nominal Impedance	50 Ohms
