• Designed for DMMs with non-sheathed banana jacks.
• Probe body incorporates a two-step mold process. The first step is Polypropylene for probe rigidity. The second step is Santoprene® rubber for handling comfort, added insulation protection, and wire strain relief.
• Probe body and banana plug are molded directly to the wire for robust pull strength.
• Wire is a high-strand count silicone wire for extreme flexibility and high-temperature resistance.
• The Stainless Steel .080” (2mm) tip is provided for heavy-duty industrial applications.

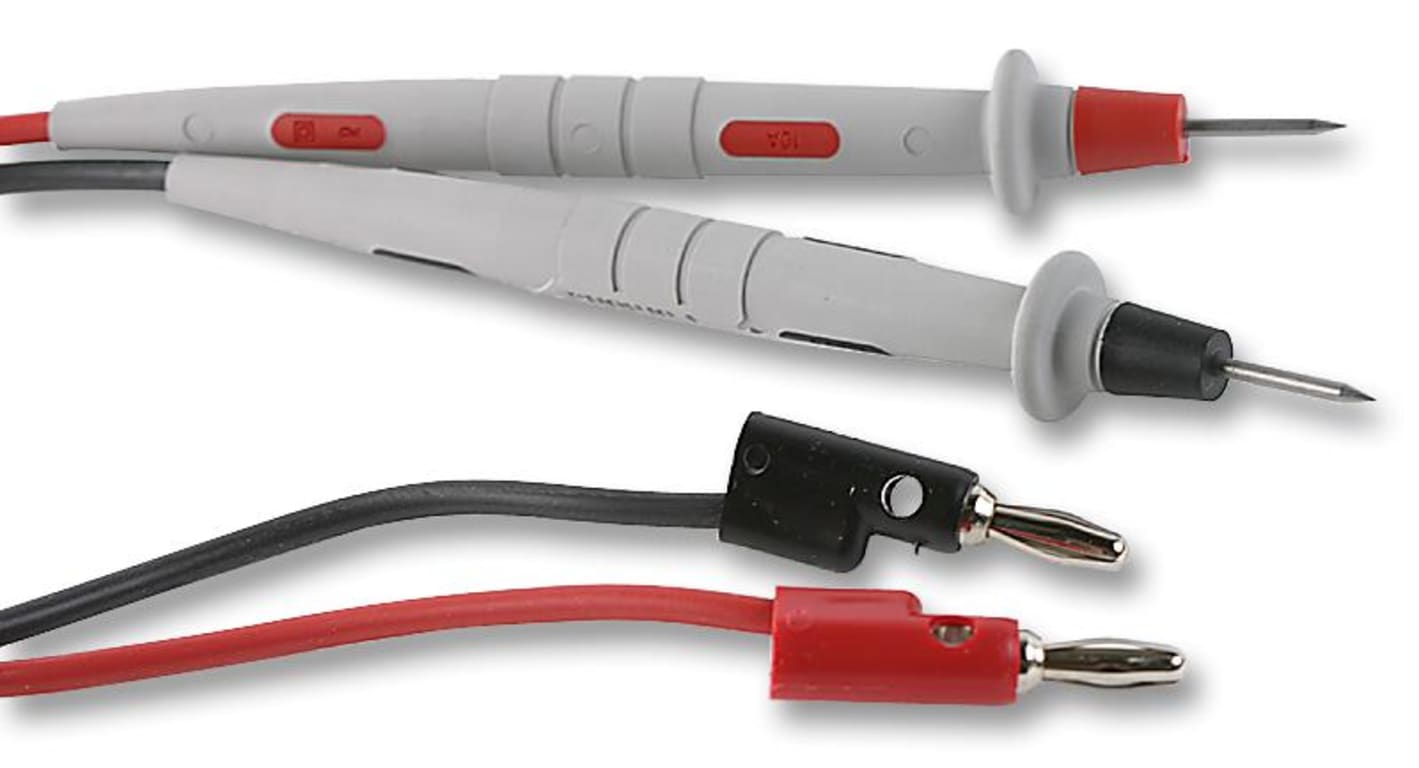

The 5309A is a replacement DMM Test Lead Kit with a probe body and banana plug. The probe body incorporates a two-step mold process. The probe with Santoprene® rubber outer insulation, polypropylene fire retardant inner insulation, stainless steel tip, 18AWG tinned copper strand silicone insulation 0.144-inch outer diameter wire. The banana plug with nickel-plated brass body, nickel-plated beryllium copper spring, and polypropylene insulation. Designed for DMMs with non-sheathed banana jacks. The probe body and banana plug are molded directly to the wire for robust pull strength.
