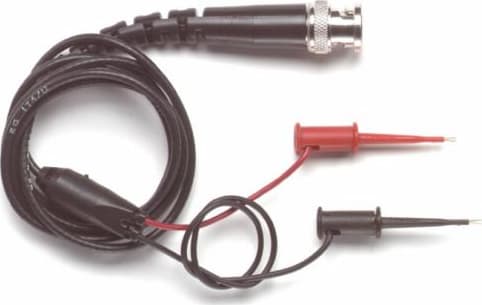

Pomona 5304-K-36 - BNC (M) To SMD Grabber® Test Clips, 36"

Name: Pomona 5304-K-36 - BNC (M) To SMD Grabber® Test Clips, 36"
Brand: Pomona
SKU: Pomona5304-K-36
Price: 43.70 USD
Availability: InStock

0 reviews | UPC: 095969166782 | Model: Pomona 5304-K-36

Compare

BNC (M)/SMD GRABBER

BNC, grabbers and breakout wires are molded directly to the cable for added pull strength.
BNC Cable breakouts to SMD Grabber® Test Clips for test versatility.
SMD Grabber® Test Clips features gold plated stainless steel pincer for durability and low contact resistance.

View Product Details

List Price: $44.99

Your Price: $43.70

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Materials
BNC (Male)	Body: Brass, Nickel Plated
Center Pin	Brass, Gold Plated
Impedance	50 Ohms
Strain Relief & Molded Breakout	PVC, Color: Black
Breakout Wires	22 AWG, .064” (1.63mm) O.D., Color: One Black, One Red
SMD Grabber	Pincer, Stainless Steel, Gold Plated
Spring	Stainless Steel
Insulation	Nylon 6, Color Matches Wire Color
Cable	RG174/U, Impedance: 50 Ohms Nominal, Capacitance: 30.8 pF/Ft., O.D. 0.100” (2.5 mm) Nom.
Ratings
Operating Voltage	150 VRMS/DC
Operating Temperature	50°C (+122°F) Max.
Current	5 Amperes
