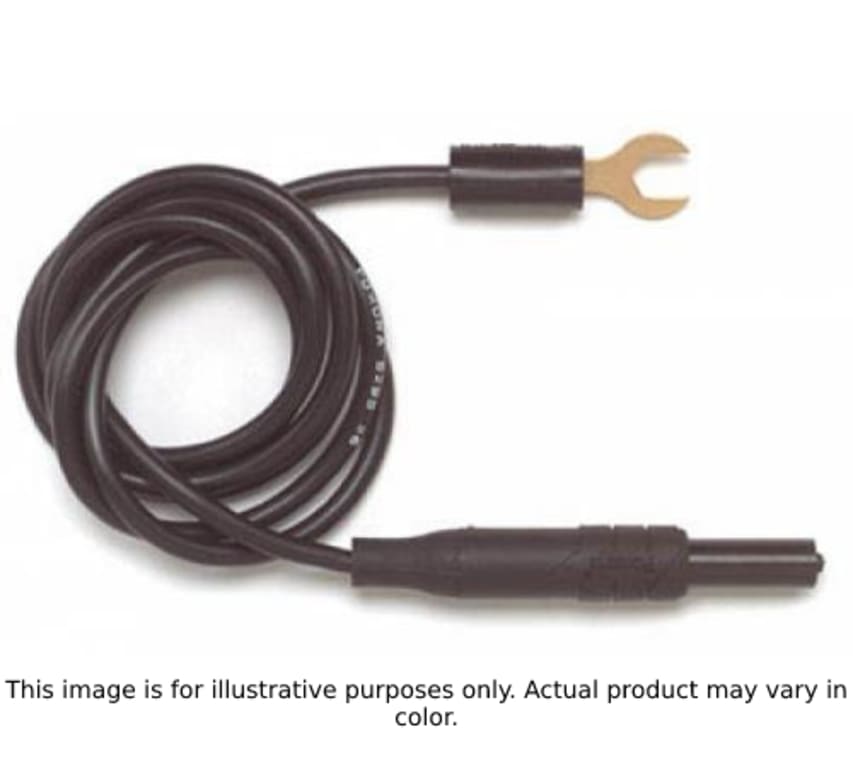

Pomona 5295-36-2 - Low Thermal EMF Spade Lug To Retractable Banana Plug Patch Cord, 36", Red

Name: Pomona 5295-36-2 - Low Thermal EMF Spade Lug To Retractable Banana Plug Patch Cord, 36", Red
Brand: Pomona
SKU: Pomona5295-36-2
Price: 30.10 USD
Availability: InStock

0 reviews | UPC: 095969166294 | Model: Pomona 5295-36-2

Compare

LOW EMF PATCH CORD (RED)

Model 5295 is part of a family of test accessories ideal for low voltage precision measurements
Designed to greatly minimizes the effect of Thermal Electric Voltage (Thermal EMF). Therma1 EMF is generated at the junction of dissimilar metals at different temperatures and is a common source of error in low micro and nano volt measurements.
Banana plug materials feature gold plated Tellurium Copper body and gold plated Beryllium Copper spring for low thermal EMF.
Spade lug is of high conductivity Electrolytic Tough Pitch (ETP), 110 Copper Alloy.
Banana plug is designed with retractable sheaths for versatile use in safety sheathed or non-sheathed jacks.
Banana plugs are attached to low resistance multi-stranded 12 gauge wire.
Cable length - 36 inches
Color - Red

View Product Details

List Price: $30.99

Your Price: $30.10

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 5295-36-2

Model 5295 is part of a family of test accessories ideal for low-voltage precision measurements.
Banana plug materials feature gold plated Tellurium Copper body and gold plated Beryllium Copper spring for low thermal EMF.
Spade lug is of high conductivity Electrolytic Tough Pitch (ETP), 110 Copper Alloy.
Banana plugs are attached to low-resistance multi-stranded 12 gauge wire.
Banana plug is designed with retractable sheaths for versatile use in safety-sheathed or non-sheathed jacks.

Low Thermal EMF Spade Lug To Retractable Banana Plug Patch Cord, 36", Red

Pomona 5295-36-2 is a Low Thermal EMF Spade Lug To Retractable Banana Plug Patch Cord. Cable length - 36 inches. Color - Red.

Materials
Retractable Sheath Banana Plug
Plug Body	Tellurium Copper, gold plated
Plug Spring	Beryllium Copper, gold plated
Tip	Nylon 6, color matches wire.
Compression Spring	Stainless steel
Insulation	Nylon 6, Color matches wire.
Wire	12 AWG; Stranding 7 x 38/36 Bare Copper, PVC Insulated, .144” (3,66 mm) O.D.
Marking	“Model 5295-XX-*”
Spade Lug	Electrolytic Tough Pitch (ETP), 110 Copper Alloy, ½ Hard, Gold Plated
Insulation	Polypropylene molded to spade lug body and wire, color matches wire.
Ratings
Operating Temperature	+55° C (+131°F) Max.
Operating Voltage	1000 VRMS/DC
Current	7 Amperes. Continuous
