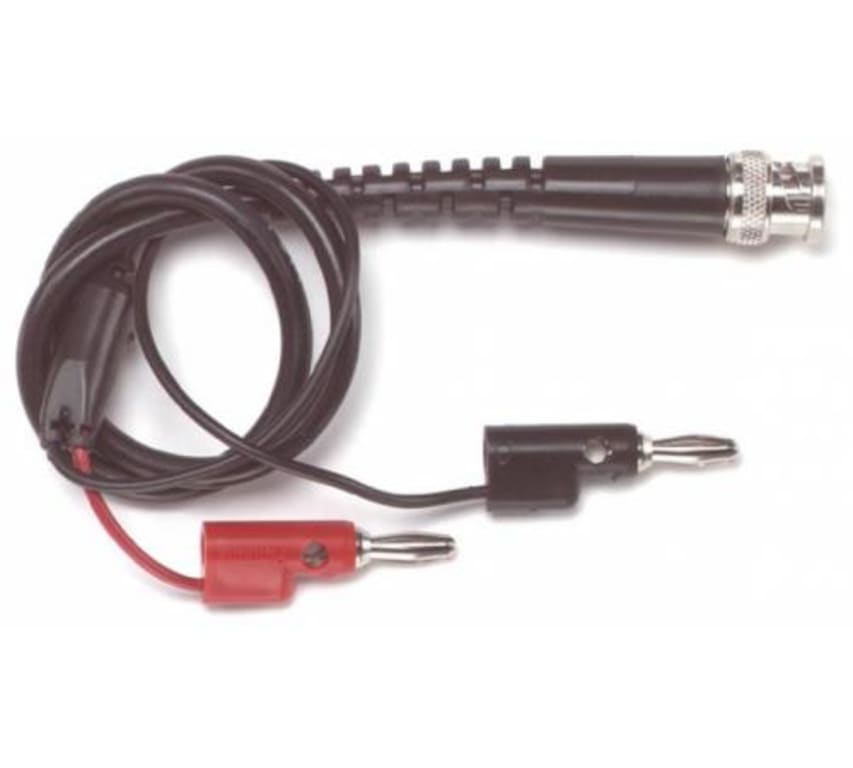

Pomona 5268-C-48 - BNC (M) With Strain Relief To 2 Stacking Banana Plugs, 48"

Name: Pomona 5268-C-48 - BNC (M) With Strain Relief To 2 Stacking Banana Plugs, 48"
Brand: Pomona
SKU: Pomona5268-C-48
Price: 38.84 USD
Availability: InStock

0 reviews | UPC: 095969166003 | Model: Pomona 5268-C-48

Compare

BNC (M)/BANANA PLUGS

Cable enables BNC based test instruments to interface to banana jacks
Banana plugs can be stacked on top or side of the banana plugs for additional test versatility
BNC connector, wire breakout and banana plugs are molded directly to the cable for added pull strength
Cable length - 48 inches

View Product Details

List Price: $39.99

Your Price: $38.84

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 5268-C-48

Cable enables BNC-based test instruments to interface with banana jacks
Banana plugs can be stacked on top or side of the banana plugs for additional test versatility
BNC connector, wire breakout, and banana plugs are molded directly to the cable for added pull strength.
Cable length - 48 inches

BNC (M) With Strain Relief To 2 Stacking Banana Plugs, 48"

Pomona 5268-C-48 is a BNC (M) With Strain Relief To 2 Stacking Banana Plugs. Cable length - 48 inches.

Materials
BNC	Body: Brass, Nickel Plated, Center Pin: Brass, Gold Plated, Impedance: 50 Ohms
Strain Relief	PVC, Color: Black
Cable	RG58C/U, Impedance: 50 Ohms Nom., Cap. (pF/Ft). 30.8, O.D. .195” (5,0 mm) Nom., Color: Black
Marking	“POMONA 5268-C-XX”
Molded Breakout	PVC, Color: Black
Breakout Leads	20 AWG, Stranding 41 x 36 t.c., PVC Insulated, .087” (2,21mm) O.D.
Banana Plugs	Body – Brass, Nickel Plated
Spring	Beryllium Copper, Nickel Plated
Insulation	Polypropylene, Color: One Black, One Red
Ratings
Voltage
Hand-held testing	30VAC/60VDC Max.
Hands free testing in controlled voltage environments	500 WVDC Max.
Operating Temperature	50°C (+122°F) Max.
