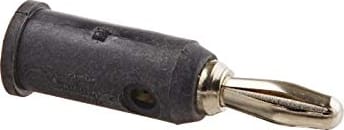

Pomona 5230-0 - Banana Plug, Solderless, High Temperature, 10/PKG, Black

Name: Pomona 5230-0 - Banana Plug, Solderless, High Temperature, 10/PKG, Black
Brand: Pomona
SKU: Pomona5230-0
Price: 36.90 USD
Availability: InStock

0 reviews | UPC: 095969165464 | Model: Pomona 5230-0

Compare

B-PLUG HIGH TEMP 10/PKG (BLACK)

Designed to fit on the end of any 22 AWG to 18 AWG wire.
Cross hole wire entry fits wires up to .12” (3mm) diameter.
Available with tarnish resistant nickel or gold plating for very low contact resistance
Model 5230 is rated to temperatures up to 302°F ( 150°C).
Set screw simplifies assembly of test leads and jumpers by using a flat blade screwdriver.
Fits standard panel and binding post banana jacks .161” to .166” (4,0mm to 4,2mm) diameter
Color: Black

View Product Details

List Price: $37.99

Your Price: $36.90

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 5230-0 Accessories

Choose a Category

Adapter Kits

for the Pomona 5230-0

Cal Test CT4103 Universal Adapter Kit

Catalog: CT4103

(9)

In Stock!

Add to Cart

Pomona 5230-0

Designed to fit on the end of any 22 AWG to 18 AWG wire.
Cross hole wire entry fits wires up to .12” (3mm) diameter.
Available with tarnish-resistant nickel or gold plating for very low contact resistance
Model 5230 is rated for temperatures up to +302°F (+150°C).
Color: Black

Banana Plug, Solderless, High Temperature, 10/PKG, Black

Pomona 5230-0 is a Standard Banana Plug, Solderless and Stackable, that is rated for temperatures up to +302°F (+150°C). Color: Black

Materials
Model 5230-0	Nickel Plated Banana High Temperature Plug with Black Insulation
Model 5230-6	Nickel Plated Banana High Temperature Plug with Blue Insulation
Ratings
Operating Voltage
Hand-held Testing	30VAC/60VDC Max.
Hand Free Testing in controlled Voltage Environment	5000 WVDC.
Operating Temperature	+50°C (+122°F) Max. Model 5230: +150°C (+302°F)
Current	15 Amperes
