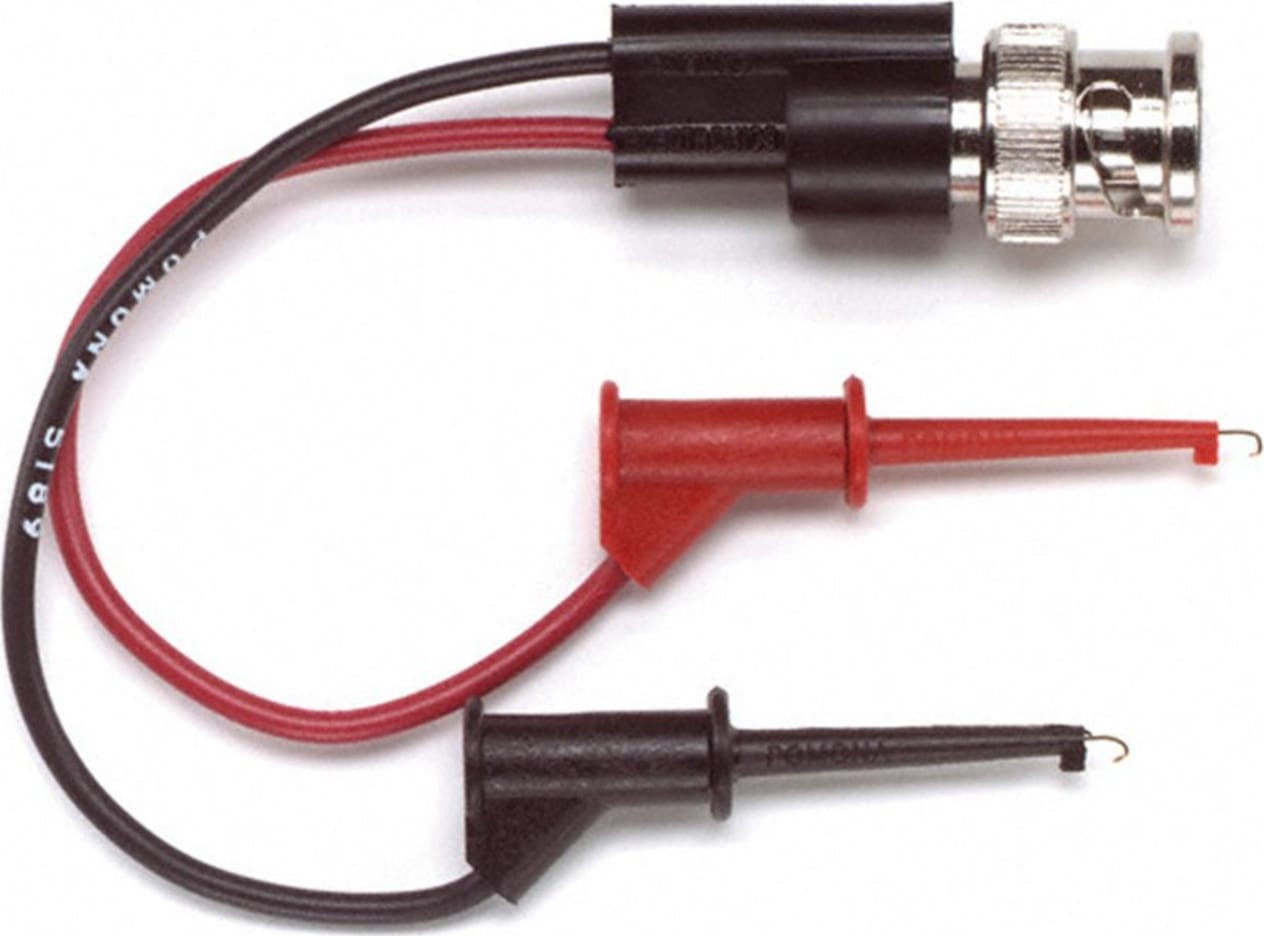

Pomona 5189 - BNC (Male) To Micrograbber Test Clips

Name: Pomona 5189 - BNC (Male) To Micrograbber Test Clips
Brand: Pomona
SKU: Pomona5189
Price: 139.95 USD
Availability: InStock

0 reviews | UPC: 095969208130 | Model: Pomona 5189

Compare

BNC (Male) To Micrograbber Test Clips-Note:Price is for 5 Units

Breakout converts BNC (Female) cables/connectors to Micrograbber® Test Clips for test versatility.
BNC connector and grabber cap are molded directly to the wire for pull strength durability and dust/moisture resistance
Grabber hook and BNC center contact are beryllium copper for superior strength.
Grabber hook and BNC center contact are gold plated for optimum corrosion resistance and low contact resistance.

View Product Details

Your Price: $139.95

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Recommended for you

Breakout converts BNC (Female) cables/connectors to Micrograbber® Test Clips for test versatility.
BNC connector and grabber cap are molded directly to the wire for pull strength durability and dust/moisture resistance
Grabber hook and BNC center contact are beryllium copper for superior strength.
Grabber hook and BNC center contact are gold plated for optimum corrosion resistance and low contact resistance.

Pomona 5189 is a BNC (Male) To Micrograbber Test Clip.

Materials
BNC	Body – Brass, Nickel Plated, Center Contact – Brass, Gold Plated.
Wire	20 AWG, Stranding 41 x 36 T.C., PVC Insulated, .087” (2,21 mm) O.D.
Marking	Model 5189, Color matches Grabber.
Grabber	Contact – Beryllium Copper, Gold Plated
Spring	Stainless Steel
Insulation	Glass Filled Nylon. Color: one red, one black
Ratings
Voltage
Hand-held testing	30VAC/60VDC Max.
Hands free testing in controlled voltage environments	150 VRMS
Operating Temperature	+55°C (+131°F) Max.
