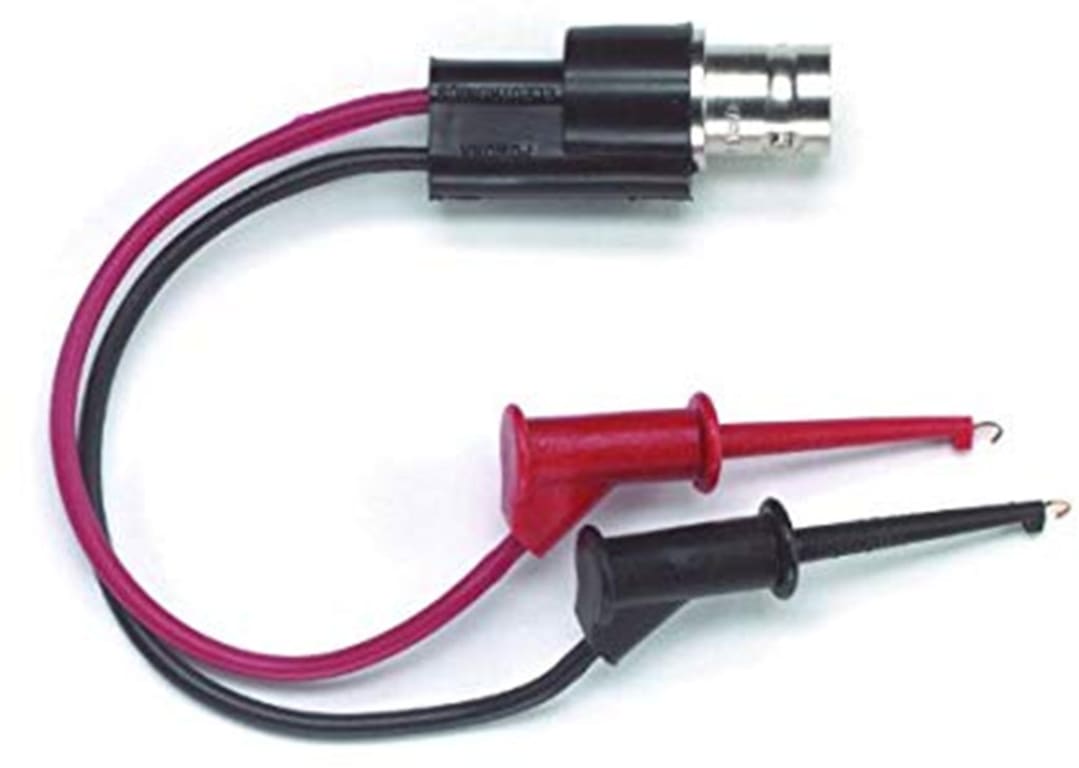

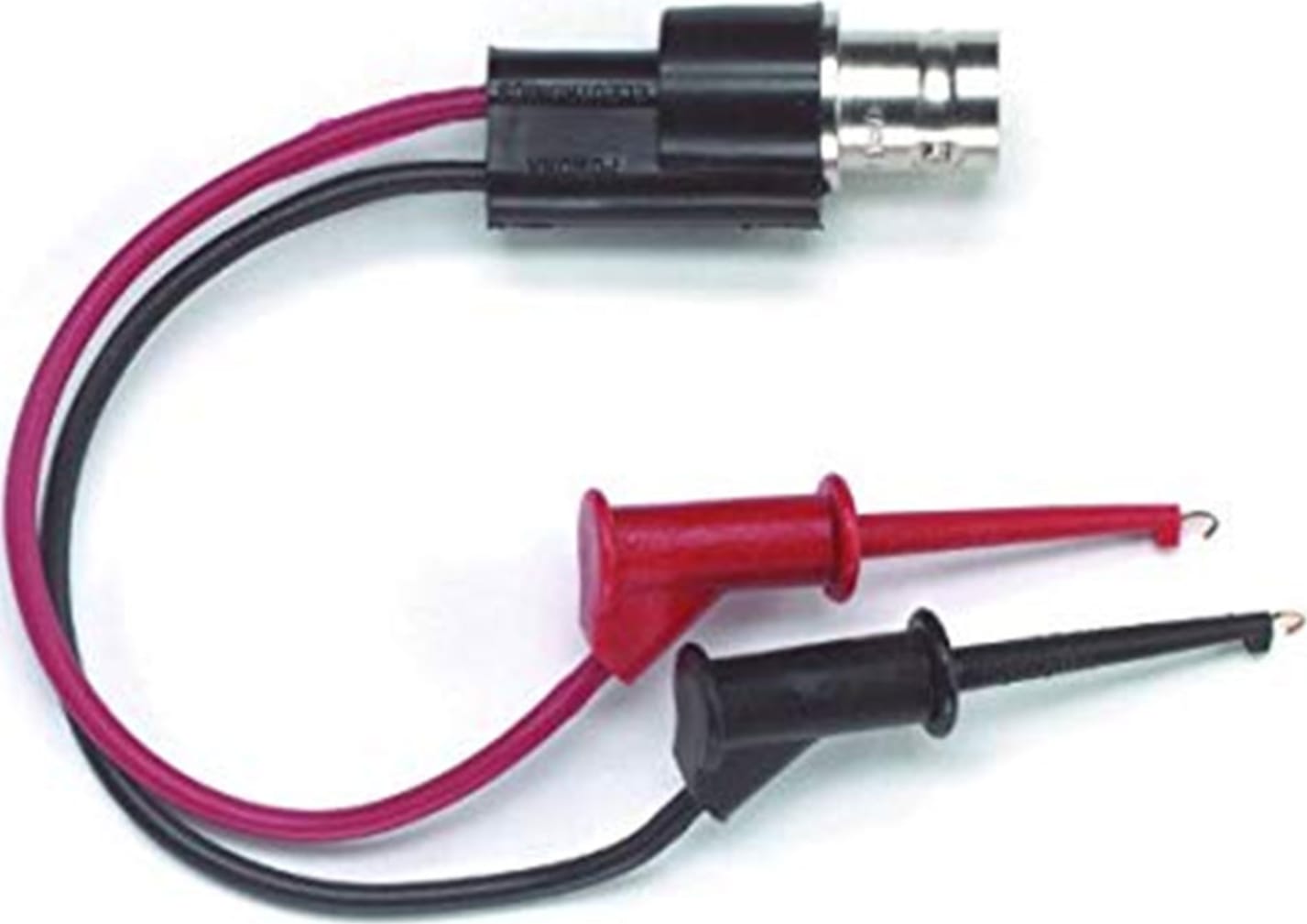

Pomona 5188 - BNC (F) To Micrograbber® Test Clips

Name: Pomona 5188 - BNC (F) To Micrograbber® Test Clips
Brand: Pomona
SKU: Pomona5188
Price: 26.99 USD
Availability: InStock

0 reviews | UPC: 095969208123 | Model: Pomona 5188

Compare

BNC (F) TO MICROGRABBER TEST CLIPS

Breakout converts BNC (Male) cables/connectors to Micrograbber® test clips for test versatility
BNC connector and Micrograbber test clip cap are molded directly to the wire for pull strength durability and dust/moisture resistance
Micrograbber test clip hook is Beryllium Copper for superior strength
Micrograbber test clip hook and BNC center contact are gold plated for optimum corrosion resistance and low contact resistance

View Product Details

Your Price: $26.99

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Recommended for you

Breakout converts BNC (Male) cables/connectors to Micrograbber® test clips for test versatility.
BNC connector and Micrograbber test clip cap are molded directly to the wire for pull strength durability and dust/moisture resistance
Micrograbber test clip hook is Beryllium Copper for superior strength
Micrograbber test clip hook and BNC center contact are gold plated for optimum corrosion resistance and low contact resistance

Pomona 5188 is a BNC (Female) To Micrograbber® Test Clips.

Materials
BNC	Nickel plated Brass
Center Contact	Gold plated Beryllium Copper
Wire	20 AWG, PVC
Marking	Model 5188
Micrograbber test clip
Contact	Gold plated Beryllium Copper
Spring	stainless steel
Insulation	Glass filled nylon, color: one red, one black
Ratings
Operating Voltage
Hand-held testing	30VAC/60VDC Max.
Hands free testing in controlled voltage environments	150 VRMS
Operating Temperature	+55°C (+131°F) Max.

Test Equipment General Attributes
Safety Approval	CE
Shipping Weight	0.02 LBS
HTS/Schedule B Number	9030.90.4600
ECCN Number	EAR99
Country of Origin	China
Shipping Height	0.20 IN
Shipping Length	10.00 IN
Shipping Width	6.00 IN
