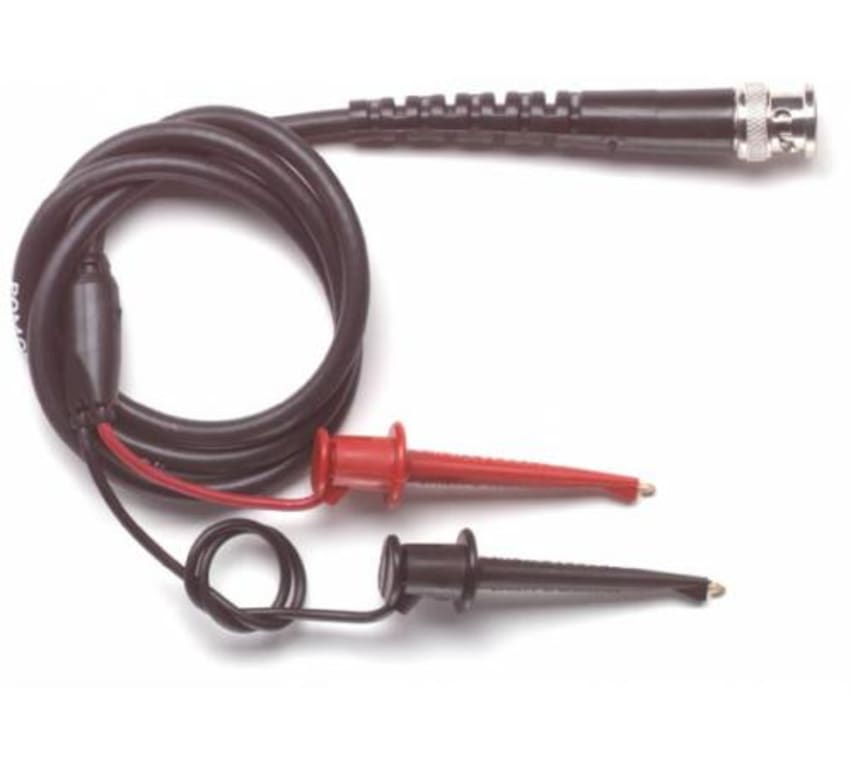

Pomona 5187-K-48 - BNC (M) To Minigrabber® Test Clips On RG174/U, 48"

Name: Pomona 5187-K-48 - BNC (M) To Minigrabber® Test Clips On RG174/U, 48"
Brand: Pomona
SKU: Pomona5187-K-48
Price: 43.70 USD
Availability: InStock

0 reviews | UPC: 095969165174 | Model: Pomona 5187-K-48

Compare

BNC (M)/GRABBER, RG174/U

BNC Cable breakouts to Minigrabber® Test Clips for test versatility.
BNC connector and breakout wires are molded directly to the cable for added pull strength.
Grabber hook attaches to terminal sizes up to .060” (1,5mm)
Schematic: Black Grabber to BNC Shell, Red Grabber to BNC Center Contact.
Cable length - 48 inches

View Product Details

List Price: $44.99

Your Price: $43.70

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 5187-K-48

BNC Cable breakouts to Minigrabber® Test Clips for test versatility.
BNC connector and breakout wires are molded directly to the cable for added pull strength.
Grabber hook attaches to terminal sizes up to .060” (1,5mm)
Schematic: Black Grabber to BNC Shell, Red Grabber to BNC Center Contact.
Cable length - 48 inches

BNC (M) To Minigrabber® Test Clips On RG174/U, 48"

Pomona 5187-K-48 is a BNC (M) To Minigrabber® Test Clips On RG174/U. Cable length - 48 inches.

Materials
BNC	Body: Brass, Nickel Plated, Center Pin: Brass, Gold Plated, Impedance: 50 Ohms
Strain Relief and Molded Breakout	PVC, Color: Black
Breakout Wires	20 AWG Stranding 41 x 36 t. c., PVC Insulated, .087” (2,21 mm) O.D., Color Matches Grabbers
Cable	“C” Cable: RG58C/U, .195” (5.0mm) O.D., Color: Black, 20AWG (Strand 19 x .0071 t.c.)
“K” Cable	RG174/U, .100” (2.5mm) O.D., Color: Black, 26 AWG (Strand 7 x 34 Bare Copper)
Marking	“POMONA“ 5187-C-XX” or “5187-K-XX”
Grabber	Contact – Beryllium Copper, Gold Plated
Spring	Stainless Steel
Insulation	Glass Filled Nylon. Color: one red, one black
Ratings
Operating Voltage	300 VRMS
Operating Temperature	50°C (+122°F) Max.
