Pomona 5144-48-0 - SMD Microtip Test Probe, 48", Black

Name: Pomona 5144-48-0 - SMD Microtip Test Probe, 48", Black
Brand: Pomona
SKU: Pomona5144-48-0
Price: 25.99 USD
Availability: InStock

0 reviews | UPC: 095969171854 | Model: Pomona 5144-48-0

Compare

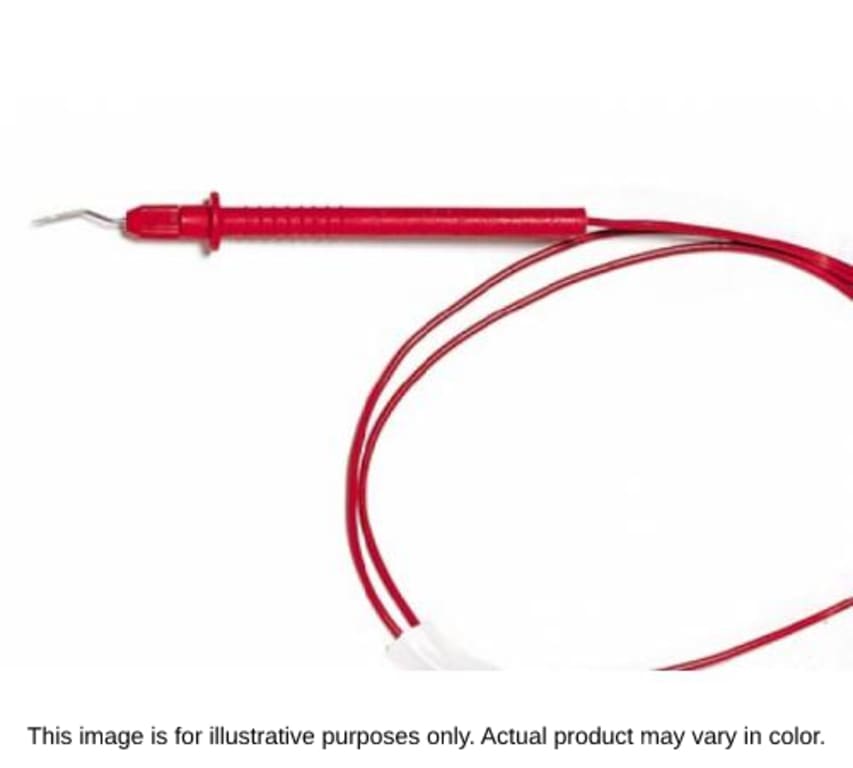

SMD Microtip Test Probe, 48", Black

The microtip is specially designed to probe SMD contacts.
It features a stainless steel needle tip that is flexible to help prevent damage to the SMD leads.
The microtip is curved to aid in probing of hard to reach areas.
Length: 48 inches
Color: Black

View Product Details

List Price: $27.99

Your Price: $25.99

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 5144-48-0

The microtip is specially designed to probe SMD contacts.
It features a stainless steel needle tip that is flexible to help prevent damage to the SMD leads.
The microtip is curved to aid in the probing of hard-to-reach areas.
Length: 48 inches
Color: Black

SMD Microtip Test Probe, 48", Black

Pomona 5144-48-0 is an SMD Microtip Test Probe, Stacking Banana Plug, which has a length of 48 inches and is Black in color.

Materials
Conn	Miniature Test Probe
Material	Removable Micro Tip – Stainless steel.
Removable Chuck	Brass per QQ-B-626, Alloy 360, ½ Hard.
Finish	Chuck – Nickel plated per QQ-N-290, Class 2, 200/300 microinches.
Insulation	Chuck Nut and Probe Body – Nylon. Color matches color of wire.
Marking	“POMONA ELECTRONICS, CALIF.” “VOLTAGE RATING: 1200 VOLTS Max.”
Wire	20 AWG, stranding 41 x 36, tinned copper, PVC insulated, 2.21 (.087) O.D. Color: See Tab Block.
Marking	“MODEL 5144-48.”
Conn	Stacking Banana Plug
Material	Spring – Beryllium Copper per QQ-C-533, Alloy 172, Cond. HT.
Plug Body	Brass per QQ-B-626, Alloy 360, ½ Hard.
Finish	Nickel plated per QQ-N-290, Class 2, 200/300 microinches.
Insulation	Polypropylene, molded to plug body and wire. Color matches color of wire.
Ratings
Operating Temperature	+55ºC. (+131ºF.) Max.
Operating Voltage	1200V AC/DC.
Current	5 Amperes

Tech Specs

Test Equipment General Attributes
Safety Approval	CE
Product Length	48 IN
Shipping Weight	0.01 LBS
Country of Origin	United States
Shipping Height	0.25 IN
Shipping Length	6.00 IN
Shipping Width	3.00 IN
