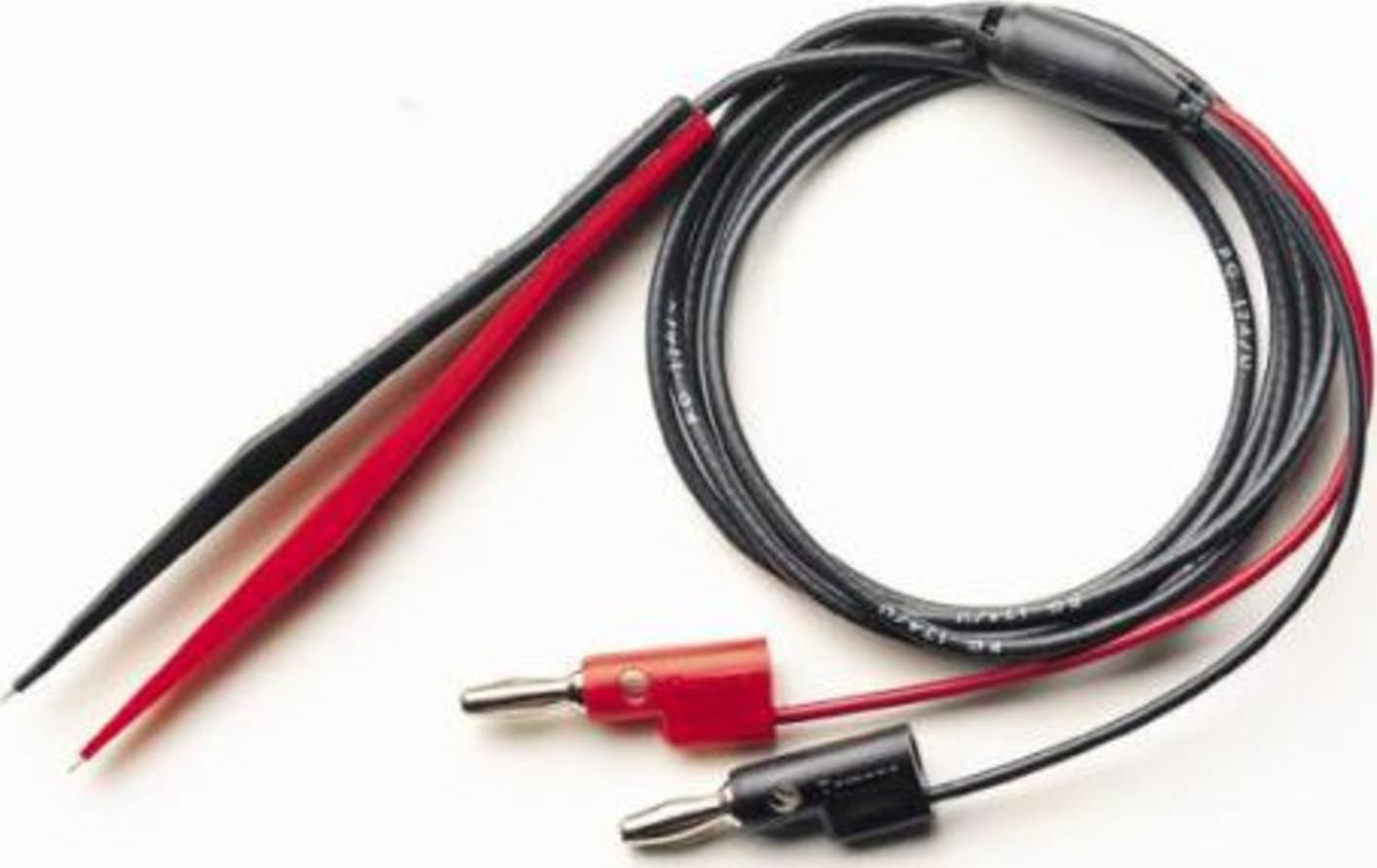

Pomona 5143-K-48 - SMD Test Tweezer To Single Stacking Banana Plugs, 48"

Name: Pomona 5143-K-48 - SMD Test Tweezer To Single Stacking Banana Plugs, 48"
Brand: Pomona
SKU: Pomona5143-K-48
Price: 45.49 USD
Availability: InStock

0 reviews | UPC: 095969171847 | Model: Pomona 5143-K-48

Compare

SMD TEST TWEEZERS

Test Tweezer™ clip is specially designed for fast, convenient testing of surface mounted devices (SMDs).
Durable tips assure a positive electrical connection.
Cable is 48 inches long.

View Product Details

List Price: $48.99

Your Price: $45.49

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 5143-K-48

Test Tweezer™ clip is specially designed for fast, convenient testing of surface-mounted devices (SMDs).
Durable tips ensure a positive electrical connection.
Cable is 48 inches long.

SMD Test Tweezer To Single Stacking Banana Plugs, 48"

Pomona 5143-K-48 is an SMD Test Tweezer For Single Stacking Banana Plugs. The cable is 48 inches long.

Materials
Connector	1st End – SMD Test Tweezer™
Contact	Beryllium Copper per QQ-C-533, Alloy 172, HT.
Tweezer Body	Nylon, glass filled. Color: One half red, one half black
Marking	“POMONA ELECTRONICS, TEST TWEEZERS”
Finish	Contact – Gold plated per MIL-G-45204, Latest Revision, Type II, Class 00 over Sulfamate nickel per QQ-N-290, Latest Revision, 50/100 microinches.
Cable	RG 174/U, 26 AWG, PVC insulated, 2.54 (.100) O.D.
Nominal Impedance	50 Ohms. Marking: “POMONA ELECTRONICS 5143-K-*”
Molded Breakout	PVC molded to breakout leads and cable. Color: Black
Wire	20 AWG 41/36 stranded T.C., PVC insulated, 2.21 (.087) O.D. Color matches color of Banana Plugs
Connector	2nd End – Standard Stacking Banana Plugs
Banana Plug Body	Brass per QQ-B-626, Alloy 360, ½ Hard.
Spring	Beryllium Copper per QQ-C-533, Alloy 172, Cond. HT.
Finish	Nickel plated per QQ-N-290, Class 2, 200/300 microinches.
Insulation	Polypropylene molded to plug bodies and wire. Color: One red, one black.
Marking	“POMONA ELECTRONICS POMONA, CALIFORNIA”
Ratings
Operating Temperature	+50°C. (+122°F.) Max.
Operating Voltage	400 VRMS
Current	3 Amperes

Tech Specs

Test Equipment General Attributes
Safety Approval	CE
Product Length	48 IN
Shipping Weight	0.05 LBS
Country of Origin	United States
Shipping Height	0.25 IN
Shipping Length	6.00 IN
Shipping Width	3.00 IN
