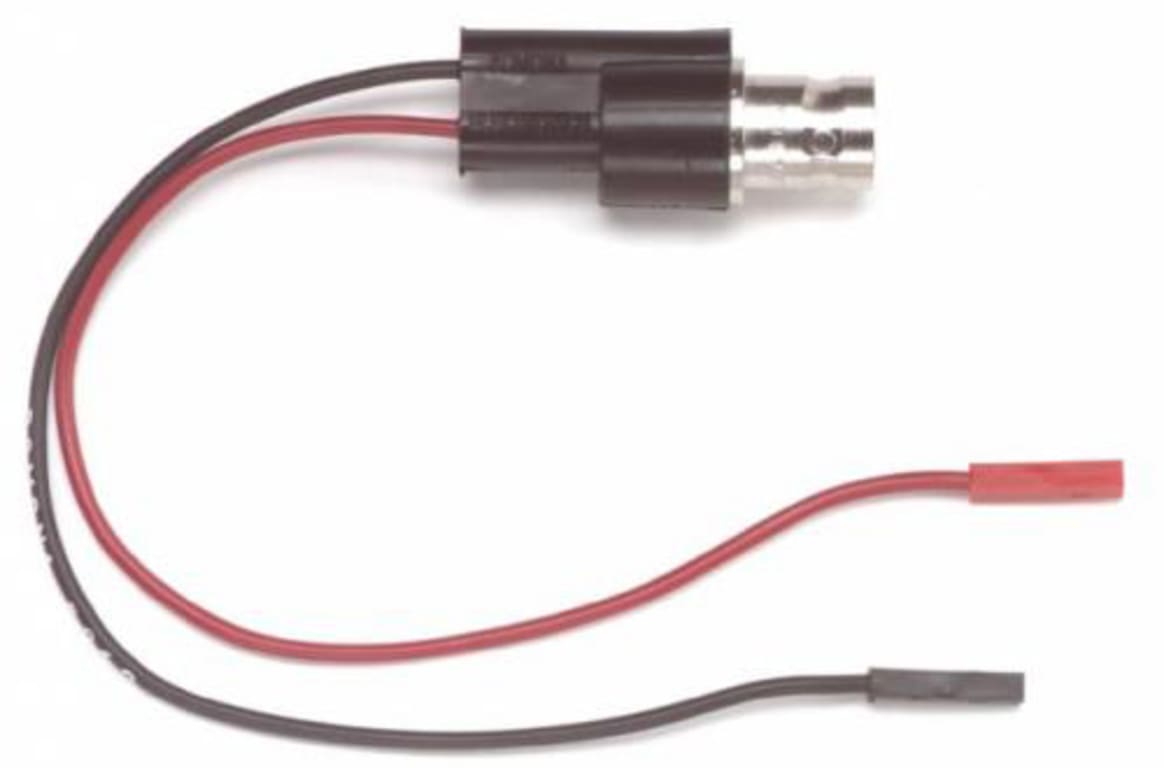

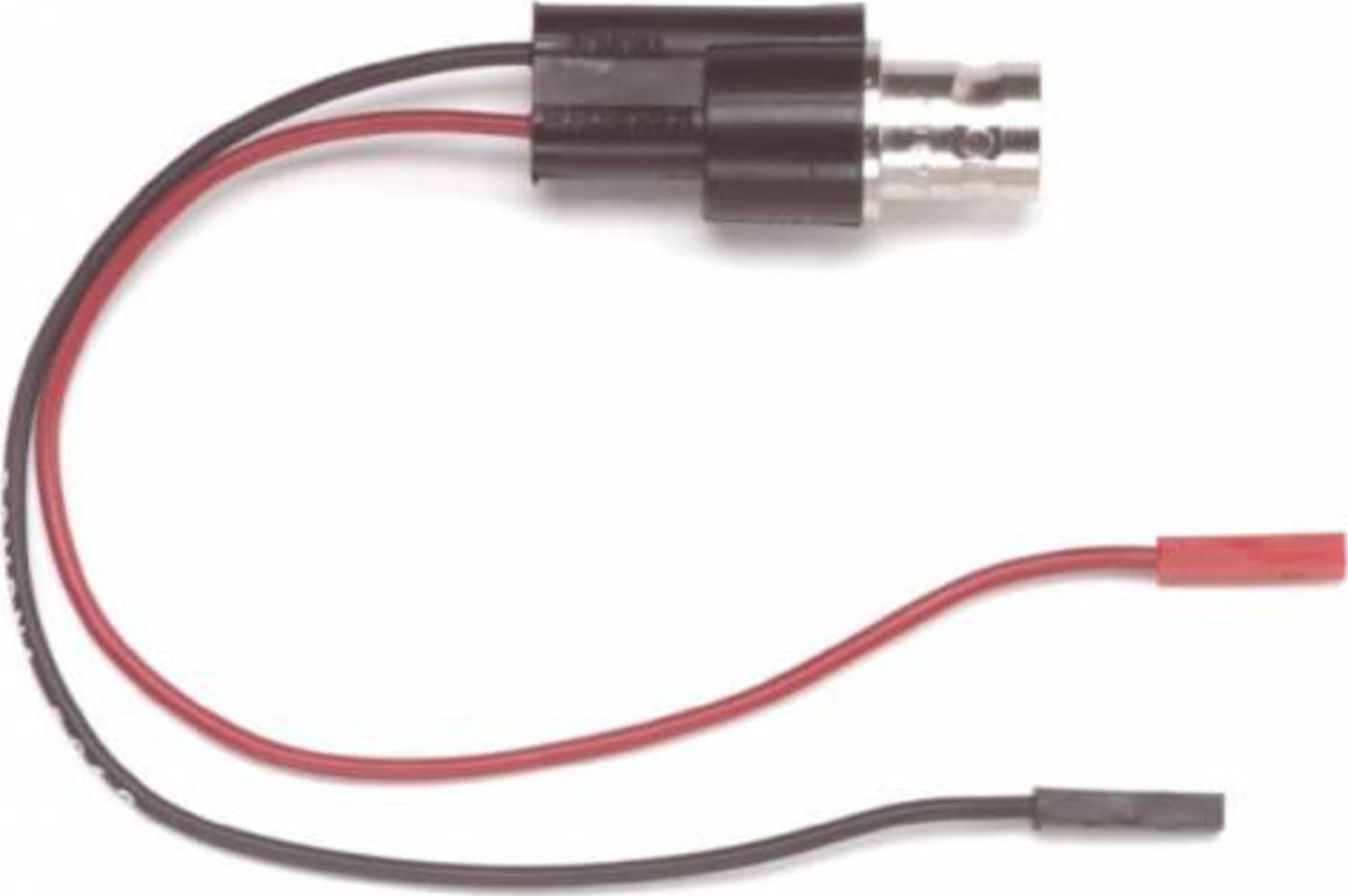

Pomona 5069 - BNC (F) To .025" Square Receptacles

Name: Pomona 5069 - BNC (F) To .025" Square Receptacles
Brand: Pomona
SKU: Pomona5069
Price: 17.99 USD
Availability: InStock

0 reviews | UPC: 095969194877 | Model: Pomona 5069

Compare

BNC (F) To .025" Square Receptacles

Converts BNC (male) cables / connectors to .025” (,63mm) receptacles for attachment to square or round pins on test boards, etc.
BNC connector is molded directly to the wire for pull strength durability and dust and moisture resistance.
Black wire is connected to BNC shell, red wire to BNC center contact.
BNC center contact is gold plated Beryllium Copper and receptacle is gold plated for noise free electrical connection

View Product Details

Your Price: $17.99

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Recommended for you

Converts BNC (male) cables/connectors to .025” (,63mm) receptacles for attachment to square or round pins on test boards, etc.
BNC connector is molded directly to the wire for pull strength, durability and dust, and moisture resistance.
Black wire is connected to the BNC shell and the red wire to BNC center contact.
BNC center contact is gold plated Beryllium Copper, and the receptacle is gold plated for noise-free electrical connection

Pomona 5069 is a BNC (F) To .025" Square Receptacles.

Materials
BNC	Body - Brass, Nickel Plated
Center Contact	Beryllium Copper, Gold Plated.
Wire	22 AWG, Stranding 19 x 34 T.C., PVC Insulated, .064” (1,63mm) O.D., Color: One black, one red
Marking (Black Wire Only)	“POMONA 5069”
Receptacle	Body: Phosphor Bronze, Gold Plated
ABS, Color matches color of wire
Ratings
Voltage
Hand-held testing	30VAC/60VDC Max.
Hands free testing in controlled voltage environments	500VRMS Max.
Operating Temperature	+50°C (+122°F) Max.
