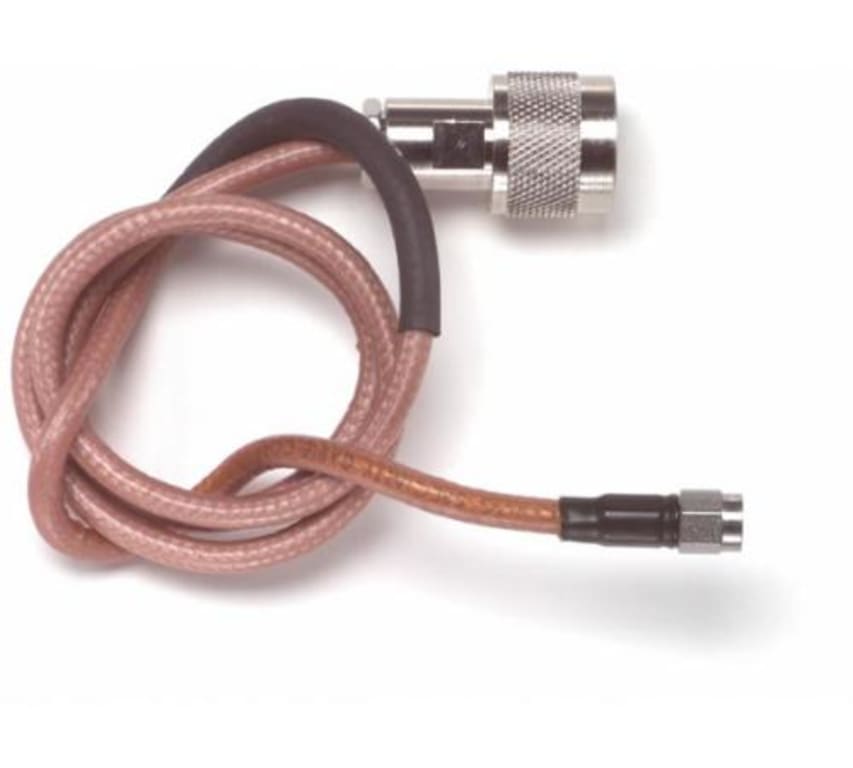

Pomona 5058-X-60 - Type N (M) To SMA (M) On 50 Ohm RG142B/U, 60"

Name: Pomona 5058-X-60 - Type N (M) To SMA (M) On 50 Ohm RG142B/U, 60"
Brand: Pomona
SKU: Pomona5058-X-60
Price: 103.14 USD
Availability: InStock

0 reviews | UPC: 095969171311 | Model: Pomona 5058-X-60

Compare

TYPE N (M)/SMA (M), RG142B/U

Provides a simple means of connection between equipment with both SMA and Type N jacks.
SMA and N connectors feature PTFE dielectric and tarnish-resistant shells for superb electrical performance.
Gold center contacts assure noise-free connections.
Cable length - 60 inches

View Product Details

List Price: $111.99

Your Price: $103.14

Sign-in for GSA Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Recommended for you

Pomona 5058-X-60

Provides a simple means of connection between equipment with both SMA and Type N jacks.
SMA and N connectors feature PTFE dielectric and tarnish-resistant shells for superb electrical performance.
Gold center contacts assure noise-free connections.
Cable length - 60 inches

Type N (M) To SMA (M) On 50 Ohm RG142B/U, 60"

Pomona 5058-X-60 is an SMA Male To Type “N” Male 50 Ohm Cable Assembly with a length of 60 inches.

Materials
Type N Male	Body and Fittings – Brass, Tarnish Resistant
Center Contact	Brass, Gold Plated
Dielectric	PTFE
Coaxial Cable	RG142B/U, Double Shielded, O.D. .195” (4,95mm)
SMA Male	Body and Fitting – Steel, Finish – Passivated Steel
Center Contact	Brass, Gold Plated
Dielectric	PTFE
Ratings
Operating Temperature	+200°C (+329°F) Max.
Operating Voltage	335 VRMS Max.
Connector/Cable Impedance	50 Ohms
