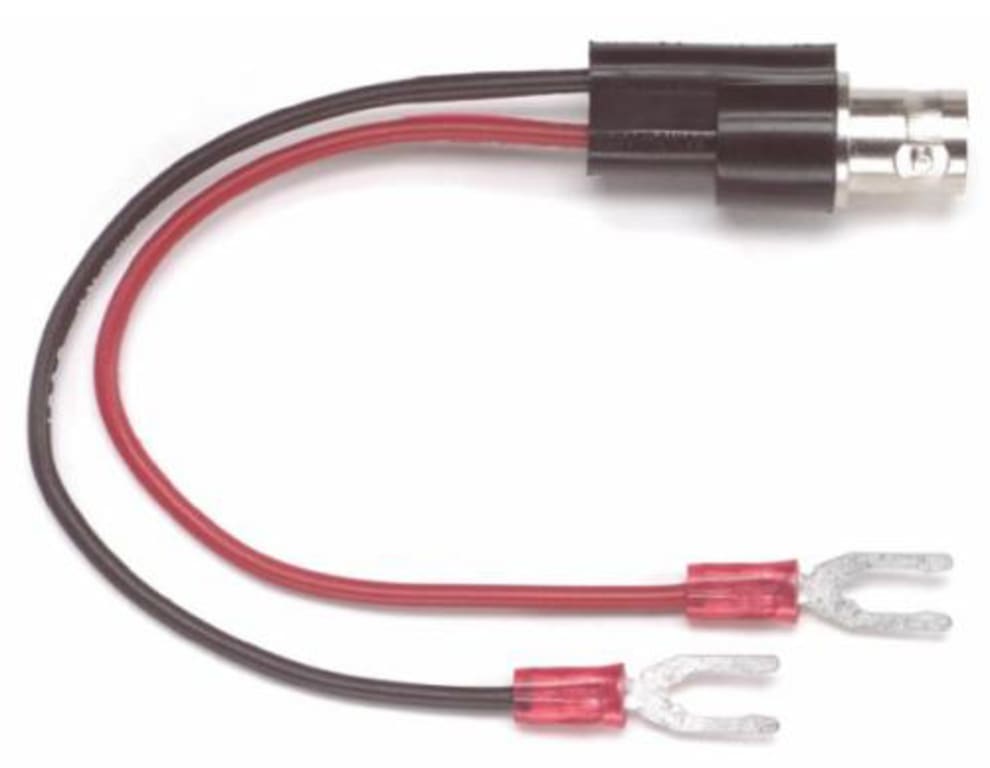

Pomona 5051 - BNC (Female) To #8 Spade Lugs

Name: Pomona 5051 - BNC (Female) To #8 Spade Lugs
Brand: Pomona
SKU: Pomona5051
Price: 15.53 USD
Availability: InStock

0 reviews | UPC: 095969170918 | Model: Pomona 5051

Compare

BNC (F)//BULK8 SPADE LUG

Converts BNC (male) cables / connectors to a #8 spade lug connector for terminal strip attachment
BNC connector is molded directly to the wire for pull strength durability and dust and moisture resistance.
BNC shell is tarnish resistant
BNC center contact is gold plated Beryllium Copper for excellent electrical connection.
Black wire is connected to BNC shell, red wire to BNC center contact.

View Product Details

List Price: $15.99

Your Price: $15.53

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Recommended for you

Converts BNC (male) cables/connectors to a #8 spade lug connector for terminal strip attachment
BNC connector is molded directly to the wire for pull strength, durability, and dust and moisture resistance.
BNC shell is tarnish resistant
BNC center contact is gold-plated Beryllium Copper for excellent electrical connection.
Black wire is connected to BNC shell, and red wire to BNC center contact.

Pomona 5051 is a BNC (Female) To #8 Spade Lugs

Materials
BNC	Nickel-plated Brass
Center Contact	Gold plated Beryllium Copper
Wire	20 AWG, PVC
Marking	“POMONA 5051”
#8 Spade Lug	Tin-plated copper alloy
Insulation	Vinyl, color: one red, one black
Ratings
Operating Voltage
Hand-held testing	30VAC/60VDC Max.
Hands free testing in controlled voltage environments	500VRMS Max.
Operating Temperature	+55°C (+131°F) Max.
