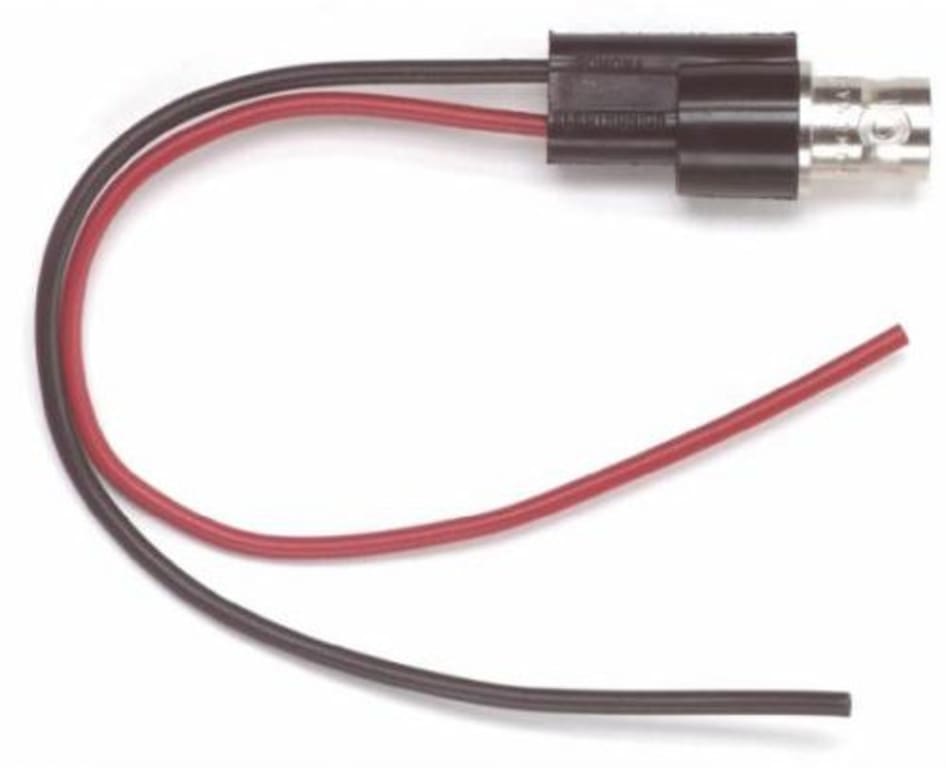

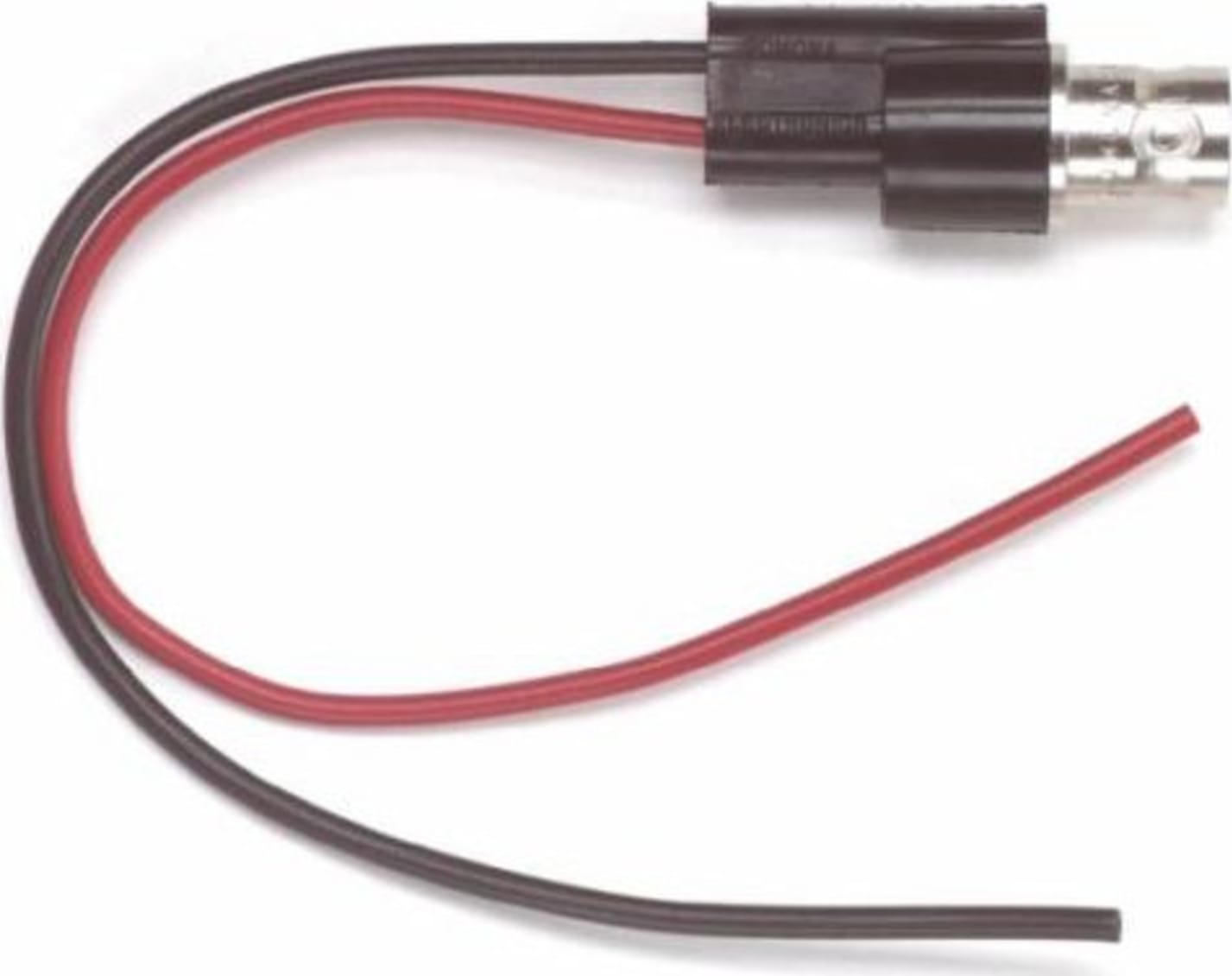

Pomona 4969 - BNC (F) With 20 AWG Leads

Name: Pomona 4969 - BNC (F) With 20 AWG Leads
Brand: Pomona
SKU: Pomona4969
Price: 13.59 USD
Availability: InStock

0 reviews | UPC: 095969208086 | Model: Pomona 4969

Compare

BNC (F) With 20 AWG Leads

Breakout quickly converts a BNC cable to flying leads
Lead ends can be attached to terminal strips or customized
BNC connector is molded directly to the wire for pull strength durability and dust and moisture resistance
BNC center contact is gold plated Beryllium Copper for corrosion resistance, low contact resistance and long insertion life
Black lead is connected to BNC shell, red lead to BNC center contact

View Product Details

List Price: $13.99

Your Price: $13.59

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Recommended for you

Breakout quickly converts a BNC cable to flying leads
Lead ends can be attached to terminal strips or customized
BNC connector is molded directly to the wire for pull strength durability and dust and moisture resistance
BNC center contact is gold plated Beryllium Copper for corrosion resistance, low contact resistance, and long insertion life
Black lead is connected to the BNC shell, red lead to the BNC center contact

Pomona 4969 is a BNC (F) With 20 AWG Leads

Materials
BNC	Nickel plated brass
Center Contact	Gold plated Beryllium Copper
Wire	20 AWG, PVC
Marking	“POMONA 4969” or “POMONA 4970”
Ratings
Operating Voltage	500 VRMS
Operating Temperature	+55°C (+131°F) Max.
